CollisionWorld is interface and container for the collision detection. More...

#include <btCollisionWorld.h>

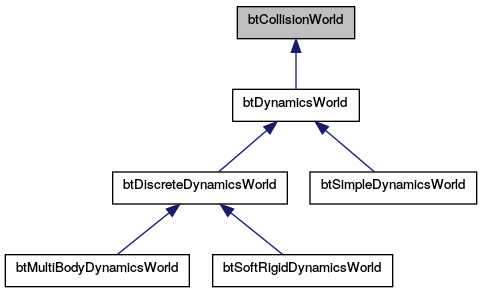

Inheritance diagram for btCollisionWorld:

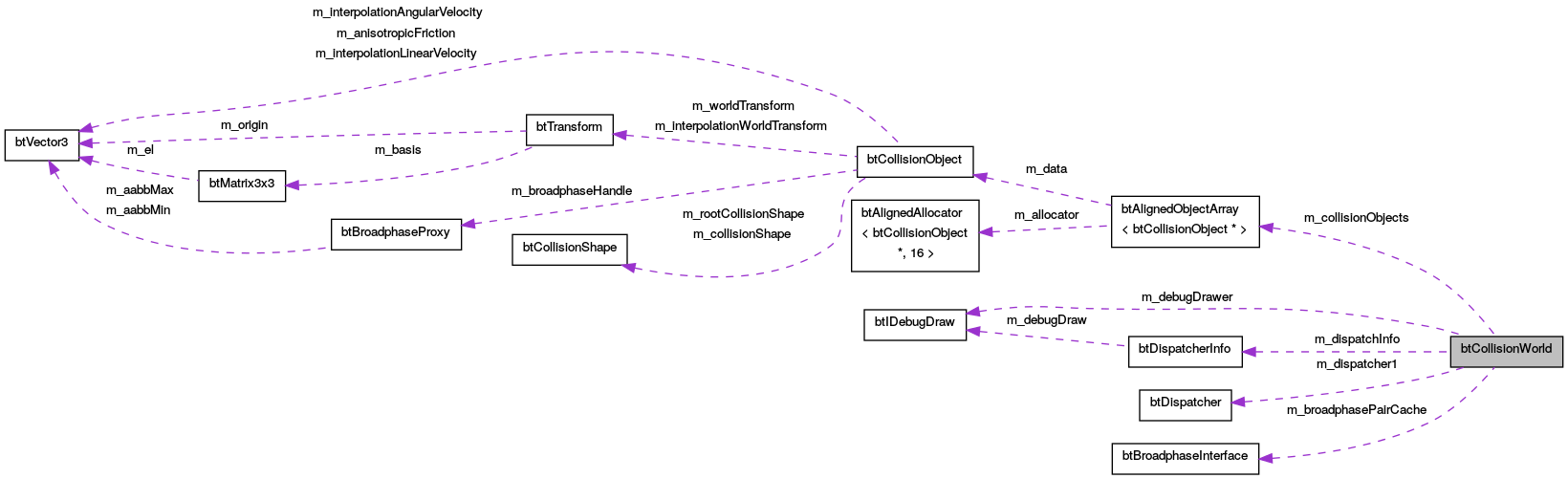

Collaboration diagram for btCollisionWorld:

Classes
struct	AllHitsRayResultCallback

struct	ClosestConvexResultCallback

struct	ClosestRayResultCallback

struct	ContactResultCallback
	ContactResultCallback is used to report contact points. More...

struct	ConvexResultCallback
	RayResultCallback is used to report new raycast results. More...

struct	LocalConvexResult

struct	LocalRayResult

struct	LocalShapeInfo
	LocalShapeInfo gives extra information for complex shapes Currently, only btTriangleMeshShape is available, so it just contains triangleIndex and subpart. More...

struct	RayResultCallback
	RayResultCallback is used to report new raycast results. More...

Public Member Functions
	btCollisionWorld (btDispatcher dispatcher, btBroadphaseInterface broadphasePairCache, btCollisionConfiguration *collisionConfiguration)
	for debug drawing More...

virtual	~btCollisionWorld ()

void	setBroadphase (btBroadphaseInterface *pairCache)

const btBroadphaseInterface *	getBroadphase () const

btBroadphaseInterface *	getBroadphase ()

btOverlappingPairCache *	getPairCache ()

btDispatcher *	getDispatcher ()

const btDispatcher *	getDispatcher () const

void	updateSingleAabb (btCollisionObject *colObj)

virtual void	updateAabbs ()

virtual void	computeOverlappingPairs ()
	the computeOverlappingPairs is usually already called by performDiscreteCollisionDetection (or stepSimulation) it can be useful to use if you perform ray tests without collision detection/simulation More...

virtual void	setDebugDrawer (btIDebugDraw *debugDrawer)

virtual btIDebugDraw *	getDebugDrawer ()

virtual void	debugDrawWorld ()

virtual void	debugDrawObject (const btTransform &worldTransform, const btCollisionShape *shape, const btVector3 &color)

int	getNumCollisionObjects () const

virtual void	rayTest (const btVector3 &rayFromWorld, const btVector3 &rayToWorld, RayResultCallback &resultCallback) const
	rayTest performs a raycast on all objects in the btCollisionWorld, and calls the resultCallback This allows for several queries: first hit, all hits, any hit, dependent on the value returned by the callback. More...

void	convexSweepTest (const btConvexShape *castShape, const btTransform &from, const btTransform &to, ConvexResultCallback &resultCallback, btScalar allowedCcdPenetration=btScalar(0.)) const
	convexTest performs a swept convex cast on all objects in the btCollisionWorld, and calls the resultCallback This allows for several queries: first hit, all hits, any hit, dependent on the value return by the callback. More...

void	contactTest (btCollisionObject *colObj, ContactResultCallback &resultCallback)
	contactTest performs a discrete collision test between colObj against all objects in the btCollisionWorld, and calls the resultCallback. More...

void	contactPairTest (btCollisionObject colObjA, btCollisionObject colObjB, ContactResultCallback &resultCallback)
	contactTest performs a discrete collision test between two collision objects and calls the resultCallback if overlap if detected. More...

virtual void	addCollisionObject (btCollisionObject *collisionObject, short int collisionFilterGroup=btBroadphaseProxy::DefaultFilter, short int collisionFilterMask=btBroadphaseProxy::AllFilter)

btCollisionObjectArray &	getCollisionObjectArray ()

const btCollisionObjectArray &	getCollisionObjectArray () const

virtual void	removeCollisionObject (btCollisionObject *collisionObject)

virtual void	performDiscreteCollisionDetection ()

btDispatcherInfo &	getDispatchInfo ()

const btDispatcherInfo &	getDispatchInfo () const

bool	getForceUpdateAllAabbs () const

void	setForceUpdateAllAabbs (bool forceUpdateAllAabbs)

virtual void	serialize (btSerializer *serializer)
	Preliminary serialization test for Bullet 2.76. Loading those files requires a separate parser (Bullet/Demos/SerializeDemo) More...

Static Public Member Functions
static void	rayTestSingle (const btTransform &rayFromTrans, const btTransform &rayToTrans, btCollisionObject collisionObject, const btCollisionShape collisionShape, const btTransform &colObjWorldTransform, RayResultCallback &resultCallback)
	rayTestSingle performs a raycast call and calls the resultCallback. More...

static void	rayTestSingleInternal (const btTransform &rayFromTrans, const btTransform &rayToTrans, const btCollisionObjectWrapper *collisionObjectWrap, RayResultCallback &resultCallback)

static void	objectQuerySingle (const btConvexShape castShape, const btTransform &rayFromTrans, const btTransform &rayToTrans, btCollisionObject collisionObject, const btCollisionShape *collisionShape, const btTransform &colObjWorldTransform, ConvexResultCallback &resultCallback, btScalar allowedPenetration)
	objectQuerySingle performs a collision detection query and calls the resultCallback. It is used internally by rayTest. More...

static void	objectQuerySingleInternal (const btConvexShape castShape, const btTransform &convexFromTrans, const btTransform &convexToTrans, const btCollisionObjectWrapper colObjWrap, ConvexResultCallback &resultCallback, btScalar allowedPenetration)

Protected Member Functions
void	serializeCollisionObjects (btSerializer *serializer)

Protected Attributes
btAlignedObjectArray < btCollisionObject * >	m_collisionObjects

btDispatcher *	m_dispatcher1

btDispatcherInfo	m_dispatchInfo

btBroadphaseInterface *	m_broadphasePairCache

btIDebugDraw *	m_debugDrawer

bool	m_forceUpdateAllAabbs
	m_forceUpdateAllAabbs can be set to false as an optimization to only update active object AABBs it is true by default, because it is error-prone (setting the position of static objects wouldn't update their AABB) More...

Detailed Description

CollisionWorld is interface and container for the collision detection.

Definition at line 88 of file btCollisionWorld.h.

Constructor & Destructor Documentation

btCollisionWorld::btCollisionWorld	(	btDispatcher *	dispatcher,
		btBroadphaseInterface *	broadphasePairCache,
		btCollisionConfiguration *	collisionConfiguration
	)

for debug drawing

Definition at line 69 of file btCollisionWorld.cpp.

btCollisionWorld::~btCollisionWorld ( )

virtual

Definition at line 78 of file btCollisionWorld.cpp.

Member Function Documentation

void btCollisionWorld::addCollisionObject	(	btCollisionObject *	collisionObject,
		short int	collisionFilterGroup = `btBroadphaseProxy::DefaultFilter`,
		short int	collisionFilterMask = `btBroadphaseProxy::AllFilter`
	)

virtual

Reimplemented in btDiscreteDynamicsWorld.

Definition at line 111 of file btCollisionWorld.cpp.

void btCollisionWorld::computeOverlappingPairs ( )

virtual

the computeOverlappingPairs is usually already called by performDiscreteCollisionDetection (or stepSimulation) it can be useful to use if you perform ray tests without collision detection/simulation

Definition at line 208 of file btCollisionWorld.cpp.

void btCollisionWorld::contactPairTest	(	btCollisionObject *	colObjA,
		btCollisionObject *	colObjB,
		ContactResultCallback &	resultCallback
	)

contactTest performs a discrete collision test between two collision objects and calls the resultCallback if overlap if detected.

it reports one or more contact points (including the one with deepest penetration)

Definition at line 1185 of file btCollisionWorld.cpp.

void btCollisionWorld::contactTest	(	btCollisionObject *	colObj,
		ContactResultCallback &	resultCallback
	)

contactTest performs a discrete collision test between colObj against all objects in the btCollisionWorld, and calls the resultCallback.

contactTest performs a discrete collision test against all objects in the btCollisionWorld, and calls the resultCallback.

it reports one or more contact points for every overlapping object (including the one with deepest penetration)

Definition at line 1173 of file btCollisionWorld.cpp.

void btCollisionWorld::convexSweepTest	(	const btConvexShape *	castShape,
		const btTransform &	from,
		const btTransform &	to,
		ConvexResultCallback &	resultCallback,
		btScalar	allowedCcdPenetration = `btScalar(0.)`
	)		const

convexTest performs a swept convex cast on all objects in the btCollisionWorld, and calls the resultCallback This allows for several queries: first hit, all hits, any hit, dependent on the value return by the callback.

use the broadphase to accelerate the search for objects, based on their aabb and for each object with ray-aabb overlap, perform an exact ray test unfortunately the implementation for rayTest and convexSweepTest duplicated, albeit practically identical

Definition at line 1007 of file btCollisionWorld.cpp.

void btCollisionWorld::debugDrawObject	(	const btTransform &	worldTransform,
		const btCollisionShape *	shape,
		const btVector3 &	color
	)

virtual

for polyhedral shapes

Definition at line 1251 of file btCollisionWorld.cpp.

void btCollisionWorld::debugDrawWorld ( )

virtual

Reimplemented in btDiscreteDynamicsWorld, btDynamicsWorld, btSimpleDynamicsWorld, and btSoftRigidDynamicsWorld.

Definition at line 1430 of file btCollisionWorld.cpp.

const btBroadphaseInterface* btCollisionWorld::getBroadphase ( ) const

inline

Definition at line 122 of file btCollisionWorld.h.

btBroadphaseInterface* btCollisionWorld::getBroadphase ( )

inline

Definition at line 127 of file btCollisionWorld.h.

btCollisionObjectArray& btCollisionWorld::getCollisionObjectArray ( )

inline

Definition at line 486 of file btCollisionWorld.h.

const btCollisionObjectArray& btCollisionWorld::getCollisionObjectArray ( ) const

inline

Definition at line 491 of file btCollisionWorld.h.

virtual btIDebugDraw* btCollisionWorld::getDebugDrawer ( )

inlinevirtual

Definition at line 162 of file btCollisionWorld.h.

btDispatcher* btCollisionWorld::getDispatcher ( )

inline

Definition at line 138 of file btCollisionWorld.h.

const btDispatcher* btCollisionWorld::getDispatcher ( ) const

inline

Definition at line 143 of file btCollisionWorld.h.

btDispatcherInfo& btCollisionWorld::getDispatchInfo ( )

inline

Definition at line 501 of file btCollisionWorld.h.

const btDispatcherInfo& btCollisionWorld::getDispatchInfo ( ) const

inline

Definition at line 506 of file btCollisionWorld.h.

bool btCollisionWorld::getForceUpdateAllAabbs ( ) const

inline

Definition at line 511 of file btCollisionWorld.h.

int btCollisionWorld::getNumCollisionObjects ( ) const

inline

Definition at line 438 of file btCollisionWorld.h.

btOverlappingPairCache* btCollisionWorld::getPairCache ( )

inline

Definition at line 132 of file btCollisionWorld.h.

void btCollisionWorld::objectQuerySingle	(	const btConvexShape *	castShape,
		const btTransform &	rayFromTrans,
		const btTransform &	rayToTrans,
		btCollisionObject *	collisionObject,
		const btCollisionShape *	collisionShape,
		const btTransform &	colObjWorldTransform,
		ConvexResultCallback &	resultCallback,
		btScalar	allowedPenetration
	)

static

objectQuerySingle performs a collision detection query and calls the resultCallback. It is used internally by rayTest.

Definition at line 577 of file btCollisionWorld.cpp.

void btCollisionWorld::objectQuerySingleInternal	(	const btConvexShape *	castShape,
		const btTransform &	convexFromTrans,
		const btTransform &	convexToTrans,
		const btCollisionObjectWrapper *	colObjWrap,
		ConvexResultCallback &	resultCallback,
		btScalar	allowedPenetration
	)

static

Definition at line 587 of file btCollisionWorld.cpp.

void btCollisionWorld::performDiscreteCollisionDetection ( )

virtual

Definition at line 214 of file btCollisionWorld.cpp.

void btCollisionWorld::rayTest	(	const btVector3 &	rayFromWorld,
		const btVector3 &	rayToWorld,
		RayResultCallback &	resultCallback
	)		const

virtual

rayTest performs a raycast on all objects in the btCollisionWorld, and calls the resultCallback This allows for several queries: first hit, all hits, any hit, dependent on the value returned by the callback.

use the broadphase to accelerate the search for objects, based on their aabb and for each object with ray-aabb overlap, perform an exact ray test

Reimplemented in btSoftRigidDynamicsWorld.

Definition at line 929 of file btCollisionWorld.cpp.

void btCollisionWorld::rayTestSingle	(	const btTransform &	rayFromTrans,
		const btTransform &	rayToTrans,
		btCollisionObject *	collisionObject,
		const btCollisionShape *	collisionShape,
		const btTransform &	colObjWorldTransform,
		RayResultCallback &	resultCallback
	)

static

rayTestSingle performs a raycast call and calls the resultCallback.

It is used internally by rayTest. In a future implementation, we consider moving the ray test as a virtual method in btCollisionShape. This allows more customization.

Definition at line 262 of file btCollisionWorld.cpp.

void btCollisionWorld::rayTestSingleInternal	(	const btTransform &	rayFromTrans,
		const btTransform &	rayToTrans,
		const btCollisionObjectWrapper *	collisionObjectWrap,
		RayResultCallback &	resultCallback
	)

static

optimized version for btBvhTriangleMeshShape

Definition at line 272 of file btCollisionWorld.cpp.

void btCollisionWorld::removeCollisionObject ( btCollisionObject * collisionObject )

virtual

Reimplemented in btDiscreteDynamicsWorld, btSimpleDynamicsWorld, and btSoftRigidDynamicsWorld.

Definition at line 235 of file btCollisionWorld.cpp.

void btCollisionWorld::serialize ( btSerializer * serializer )

virtual

Preliminary serialization test for Bullet 2.76. Loading those files requires a separate parser (Bullet/Demos/SerializeDemo)

Reimplemented in btDiscreteDynamicsWorld, and btSoftRigidDynamicsWorld.

Definition at line 1543 of file btCollisionWorld.cpp.

void btCollisionWorld::serializeCollisionObjects ( btSerializer * serializer )

protected

keep track of shapes already serialized

Definition at line 1512 of file btCollisionWorld.cpp.

void btCollisionWorld::setBroadphase ( btBroadphaseInterface * pairCache )

inline

Definition at line 117 of file btCollisionWorld.h.

virtual void btCollisionWorld::setDebugDrawer ( btIDebugDraw * debugDrawer )

inlinevirtual

Definition at line 157 of file btCollisionWorld.h.

void btCollisionWorld::setForceUpdateAllAabbs ( bool forceUpdateAllAabbs )

inline

Definition at line 515 of file btCollisionWorld.h.

void btCollisionWorld::updateAabbs ( )

virtual

Reimplemented in btSimpleDynamicsWorld.

Definition at line 190 of file btCollisionWorld.cpp.

void btCollisionWorld::updateSingleAabb ( btCollisionObject * colObj )

Definition at line 147 of file btCollisionWorld.cpp.

Member Data Documentation

btBroadphaseInterface* btCollisionWorld::m_broadphasePairCache

protected

Definition at line 100 of file btCollisionWorld.h.

btAlignedObjectArray<btCollisionObject*> btCollisionWorld::m_collisionObjects

protected

Definition at line 94 of file btCollisionWorld.h.

btIDebugDraw* btCollisionWorld::m_debugDrawer

protected

Definition at line 102 of file btCollisionWorld.h.

btDispatcher* btCollisionWorld::m_dispatcher1

protected

Definition at line 96 of file btCollisionWorld.h.

btDispatcherInfo btCollisionWorld::m_dispatchInfo

protected

Definition at line 98 of file btCollisionWorld.h.

bool btCollisionWorld::m_forceUpdateAllAabbs

protected

m_forceUpdateAllAabbs can be set to false as an optimization to only update active object AABBs it is true by default, because it is error-prone (setting the position of static objects wouldn't update their AABB)

Definition at line 106 of file btCollisionWorld.h.

The documentation for this class was generated from the following files:

Classes

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
