Class for accessing the plane equation. More...

Inheritance diagram for btPlaneShape:

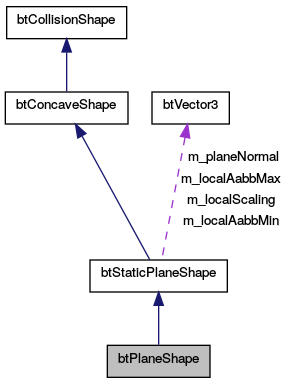

Collaboration diagram for btPlaneShape:

Public Member Functions
	btPlaneShape (const btVector3 &v, float f)

void	get_plane_equation (btVector4 &equation)

void	get_plane_equation_transformed (const btTransform &trans, btVector4 &equation) const

Public Member Functions inherited from btStaticPlaneShape
	BT_DECLARE_ALIGNED_ALLOCATOR ()

	btStaticPlaneShape (const btVector3 &planeNormal, btScalar planeConstant)

virtual	~btStaticPlaneShape ()

virtual void	getAabb (const btTransform &t, btVector3 &aabbMin, btVector3 &aabbMax) const
	getAabb returns the axis aligned bounding box in the coordinate frame of the given transform t. More...

virtual void	processAllTriangles (btTriangleCallback *callback, const btVector3 &aabbMin, const btVector3 &aabbMax) const

virtual void	calculateLocalInertia (btScalar mass, btVector3 &inertia) const

virtual void	setLocalScaling (const btVector3 &scaling)

virtual const btVector3 &	getLocalScaling () const

const btVector3 &	getPlaneNormal () const

const btScalar &	getPlaneConstant () const

virtual const char *	getName () const

virtual int	calculateSerializeBufferSize () const

virtual const char *	serialize (void dataBuffer, btSerializer serializer) const
	fills the dataBuffer and returns the struct name (and 0 on failure) More...

Public Member Functions inherited from btConcaveShape
	BT_DECLARE_ALIGNED_ALLOCATOR ()

	btConcaveShape ()

virtual	~btConcaveShape ()

virtual btScalar	getMargin () const

virtual void	setMargin (btScalar collisionMargin)

Public Member Functions inherited from btCollisionShape
	BT_DECLARE_ALIGNED_ALLOCATOR ()

	btCollisionShape ()

virtual	~btCollisionShape ()

virtual void	getBoundingSphere (btVector3 &center, btScalar &radius) const

virtual btScalar	getAngularMotionDisc () const
	getAngularMotionDisc returns the maximus radius needed for Conservative Advancement to handle time-of-impact with rotations. More...

virtual btScalar	getContactBreakingThreshold (btScalar defaultContactThresholdFactor) const

void	calculateTemporalAabb (const btTransform &curTrans, const btVector3 &linvel, const btVector3 &angvel, btScalar timeStep, btVector3 &temporalAabbMin, btVector3 &temporalAabbMax) const
	calculateTemporalAabb calculates the enclosing aabb for the moving object over interval [0..timeStep) result is conservative More...

bool	isPolyhedral () const

bool	isConvex2d () const

bool	isConvex () const

bool	isNonMoving () const

bool	isConcave () const

bool	isCompound () const

bool	isSoftBody () const

bool	isInfinite () const
	isInfinite is used to catch simulation error (aabb check) More...

int	getShapeType () const

virtual btVector3	getAnisotropicRollingFrictionDirection () const
	the getAnisotropicRollingFrictionDirection can be used in combination with setAnisotropicFriction See Bullet/Demos/RollingFrictionDemo for an example More...

void	setUserPointer (void *userPtr)
	optional user data pointer More...

void *	getUserPointer () const

virtual void	serializeSingleShape (btSerializer *serializer) const

Additional Inherited Members
Protected Attributes inherited from btStaticPlaneShape
btVector3	m_localAabbMin

btVector3	m_localAabbMax

btVector3	m_planeNormal

btScalar	m_planeConstant

btVector3	m_localScaling

Protected Attributes inherited from btConcaveShape
btScalar	m_collisionMargin

Protected Attributes inherited from btCollisionShape
int	m_shapeType

void *	m_userPointer
