#include <btSoftBodySolverTriangleData_DX11.h>

Inheritance diagram for btSoftBodyTriangleDataDX11:

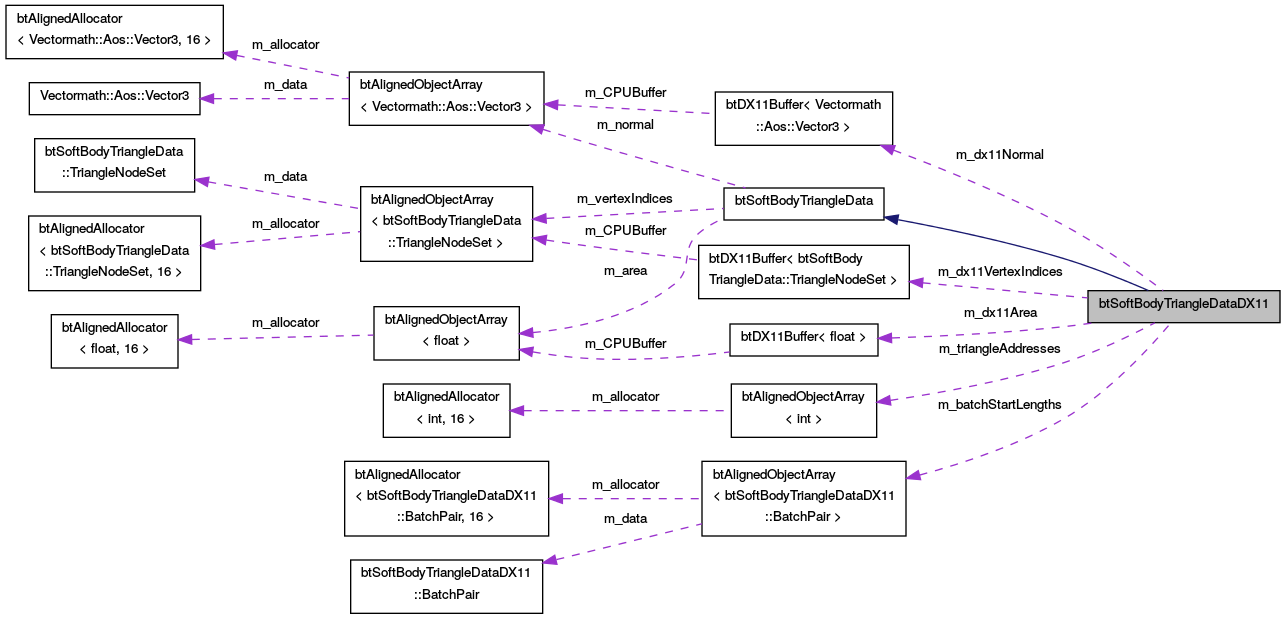

Collaboration diagram for btSoftBodyTriangleDataDX11:

Classes
struct	BatchPair

Public Member Functions
	btSoftBodyTriangleDataDX11 (ID3D11Device d3dDevice, ID3D11DeviceContext d3dDeviceContext)

virtual	~btSoftBodyTriangleDataDX11 ()

virtual void	createTriangles (int numTriangles)
	Allocate enough space in all link-related arrays to fit numLinks links. More...

virtual void	setTriangleAt (const btSoftBodyTriangleData::TriangleDescription &triangle, int triangleIndex)
	Insert the link described into the correct data structures assuming space has already been allocated by a call to createLinks. More...

virtual bool	onAccelerator ()
	Return true if data is on the accelerator. More...

virtual bool	moveToAccelerator ()
	Move data from host memory to the accelerator. More...

virtual bool	moveFromAccelerator ()
	Move data from host memory from the accelerator. More...

void	generateBatches ()
	Generate (and later update) the batching for the entire triangle set. More...

Public Member Functions inherited from btSoftBodyTriangleData
	btSoftBodyTriangleData ()

virtual	~btSoftBodyTriangleData ()

virtual void	clear ()

int	getNumTriangles ()

const TriangleNodeSet &	getVertexSet (int triangleIndex)
	Return the vertex index set for triangle triangleIndex as stored on the host. More...

float &	getTriangleArea (int triangleIndex)
	Get access to the triangle area. More...

Vectormath::Aos::Vector3 &	getNormal (int triangleIndex)
	Get access to the normal vector for this triangle. More...

Public Attributes
bool	m_onGPU

ID3D11Device *	m_d3dDevice

ID3D11DeviceContext *	m_d3dDeviceContext

btDX11Buffer < btSoftBodyTriangleData::TriangleNodeSet >	m_dx11VertexIndices

btDX11Buffer< float >	m_dx11Area

btDX11Buffer < Vectormath::Aos::Vector3 >	m_dx11Normal

btAlignedObjectArray< int >	m_triangleAddresses
	Link addressing information for each cloth. More...

btAlignedObjectArray< BatchPair >	m_batchStartLengths
	Start and length values for computation batches over link data. More...

Additional Inherited Members
Protected Attributes inherited from btSoftBodyTriangleData
btAlignedObjectArray < TriangleNodeSet >	m_vertexIndices

btAlignedObjectArray< float >	m_area

btAlignedObjectArray < Vectormath::Aos::Vector3 >	m_normal

Detailed Description

Definition at line 26 of file btSoftBodySolverTriangleData_DX11.h.

Constructor & Destructor Documentation

btSoftBodyTriangleDataDX11::btSoftBodyTriangleDataDX11	(	ID3D11Device *	d3dDevice,
		ID3D11DeviceContext *	d3dDeviceContext
	)

Definition at line 355 of file btSoftBodySolver_DX11.cpp.

btSoftBodyTriangleDataDX11::~btSoftBodyTriangleDataDX11 ( )

virtual

Definition at line 364 of file btSoftBodySolver_DX11.cpp.

Member Function Documentation

void btSoftBodyTriangleDataDX11::createTriangles ( int numTriangles )

virtual

Allocate enough space in all link-related arrays to fit numLinks links.

Reimplemented from btSoftBodyTriangleData.

Definition at line 371 of file btSoftBodySolver_DX11.cpp.

void btSoftBodyTriangleDataDX11::generateBatches ( )

Generate (and later update) the batching for the entire triangle set.

This redoes a lot of work because it batches the entire set when each cloth is inserted. In theory we could delay it until just before we need the cloth. It's a one-off overhead, though, so that is a later optimisation.

Definition at line 427 of file btSoftBodySolver_DX11.cpp.

bool btSoftBodyTriangleDataDX11::moveFromAccelerator ( )

virtual

Move data from host memory from the accelerator.

The CPU version will always return that it has moved it.

Reimplemented from btSoftBodyTriangleData.

Definition at line 408 of file btSoftBodySolver_DX11.cpp.

bool btSoftBodyTriangleDataDX11::moveToAccelerator ( )

virtual

Move data from host memory to the accelerator.

The CPU version will always return that it has moved it.

Reimplemented from btSoftBodyTriangleData.
