Teh btTriangleIndexVertexMaterialArray is built on TriangleIndexVertexArray The addition of a material array allows for the utilization of the partID and triangleIndex that are returned in the ContactAddedCallback. More...
#include <btTriangleIndexVertexMaterialArray.h>
Inheritance diagram for btTriangleIndexVertexMaterialArray:

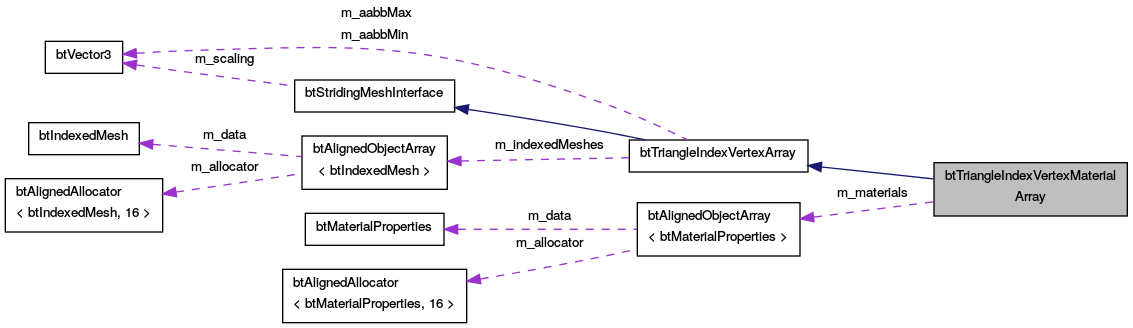

Collaboration diagram for btTriangleIndexVertexMaterialArray:
Public Member Functions | |
| BT_DECLARE_ALIGNED_ALLOCATOR () | |
| btTriangleIndexVertexMaterialArray () | |
| btTriangleIndexVertexMaterialArray (int numTriangles, int *triangleIndexBase, int triangleIndexStride, int numVertices, btScalar *vertexBase, int vertexStride, int numMaterials, unsigned char *materialBase, int materialStride, int *triangleMaterialsBase, int materialIndexStride) | |
| This file was created by Alex Silverman. More... | |
| virtual | ~btTriangleIndexVertexMaterialArray () |
| void | addMaterialProperties (const btMaterialProperties &mat, PHY_ScalarType triangleType=PHY_INTEGER) |
| virtual void | getLockedMaterialBase (unsigned char **materialBase, int &numMaterials, PHY_ScalarType &materialType, int &materialStride, unsigned char **triangleMaterialBase, int &numTriangles, int &triangleMaterialStride, PHY_ScalarType &triangleType, int subpart=0) |
| virtual void | getLockedReadOnlyMaterialBase (const unsigned char **materialBase, int &numMaterials, PHY_ScalarType &materialType, int &materialStride, const unsigned char **triangleMaterialBase, int &numTriangles, int &triangleMaterialStride, PHY_ScalarType &triangleType, int subpart=0) |
 Public Member Functions inherited from btTriangleIndexVertexArray | |
| BT_DECLARE_ALIGNED_ALLOCATOR () | |
| btTriangleIndexVertexArray () | |
| virtual | ~btTriangleIndexVertexArray () |
| btTriangleIndexVertexArray (int numTriangles, int *triangleIndexBase, int triangleIndexStride, int numVertices, btScalar *vertexBase, int vertexStride) | |
| void | addIndexedMesh (const btIndexedMesh &mesh, PHY_ScalarType indexType=PHY_INTEGER) |
| virtual void | getLockedVertexIndexBase (unsigned char **vertexbase, int &numverts, PHY_ScalarType &type, int &vertexStride, unsigned char **indexbase, int &indexstride, int &numfaces, PHY_ScalarType &indicestype, int subpart=0) |
| get read and write access to a subpart of a triangle mesh this subpart has a continuous array of vertices and indices in this way the mesh can be handled as chunks of memory with striding very similar to OpenGL vertexarray support make a call to unLockVertexBase when the read and write access is finished More... | |
| virtual void | getLockedReadOnlyVertexIndexBase (const unsigned char **vertexbase, int &numverts, PHY_ScalarType &type, int &vertexStride, const unsigned char **indexbase, int &indexstride, int &numfaces, PHY_ScalarType &indicestype, int subpart=0) const |
| virtual void | unLockVertexBase (int subpart) |
| unLockVertexBase finishes the access to a subpart of the triangle mesh make a call to unLockVertexBase when the read and write access (using getLockedVertexIndexBase) is finished More... | |
| virtual void | unLockReadOnlyVertexBase (int subpart) const |
| virtual int | getNumSubParts () const |
| getNumSubParts returns the number of seperate subparts each subpart has a continuous array of vertices and indices More... | |
| IndexedMeshArray & | getIndexedMeshArray () |
| const IndexedMeshArray & | getIndexedMeshArray () const |
| virtual void | preallocateVertices (int numverts) |
| virtual void | preallocateIndices (int numindices) |
| virtual bool | hasPremadeAabb () const |
| virtual void | setPremadeAabb (const btVector3 &aabbMin, const btVector3 &aabbMax) const |
| virtual void | getPremadeAabb (btVector3 *aabbMin, btVector3 *aabbMax) const |
| Public Member Functions inherited from btStridingMeshInterface | |
| BT_DECLARE_ALIGNED_ALLOCATOR () | |
| btStridingMeshInterface () | |
| virtual | ~btStridingMeshInterface () |
| virtual void | InternalProcessAllTriangles (btInternalTriangleIndexCallback *callback, const btVector3 &aabbMin, const btVector3 &aabbMax) const |
| void | calculateAabbBruteForce (btVector3 &aabbMin, btVector3 &aabbMax) |
| brute force method to calculate aabb More... | |
| const btVector3 & | getScaling () const |
| void | setScaling (const btVector3 &scaling) |
| virtual int | calculateSerializeBufferSize () const |
| virtual const char * | serialize (void *dataBuffer, btSerializer *serializer) const |
| fills the dataBuffer and returns the struct name (and 0 on failure) More... | |
Protected Attributes | |
| MaterialArray | m_materials |
| Protected Attributes inherited from btTriangleIndexVertexArray | |
| IndexedMeshArray | m_indexedMeshes |
| int | m_pad [2] |
| int | m_hasAabb |
| btVector3 | m_aabbMin |
| btVector3 | m_aabbMax |
| Protected Attributes inherited from btStridingMeshInterface | |
| btVector3 | m_scaling |
Detailed Description
Teh btTriangleIndexVertexMaterialArray is built on TriangleIndexVertexArray The addition of a material array allows for the utilization of the partID and triangleIndex that are returned in the ContactAddedCallback.
As with TriangleIndexVertexArray, no duplicate is made of the material data, so it is the users responsibility to maintain the array during the lifetime of the TriangleIndexVertexMaterialArray.
Definition at line 50 of file btTriangleIndexVertexMaterialArray.h.
Constructor & Destructor Documentation
|
inline |
Definition at line 58 of file btTriangleIndexVertexMaterialArray.h.
| btTriangleIndexVertexMaterialArray::btTriangleIndexVertexMaterialArray | ( | int | numTriangles, |
| int * | triangleIndexBase, | ||
| int | triangleIndexStride, | ||
| int | numVertices, | ||
| btScalar * | vertexBase, | ||
| int | vertexStride, | ||
| int | numMaterials, | ||
| unsigned char * | materialBase, | ||
| int | materialStride, | ||
| int * | triangleMaterialsBase, | ||
| int | materialIndexStride | ||
| ) |
This file was created by Alex Silverman.
Definition at line 20 of file btTriangleIndexVertexMaterialArray.cpp.
|
inlinevirtual |
Definition at line 67 of file btTriangleIndexVertexMaterialArray.h.
Member Function Documentation
|
inline |
Definition at line 69 of file btTriangleIndexVertexMaterialArray.h.
| btTriangleIndexVertexMaterialArray::BT_DECLARE_ALIGNED_ALLOCATOR | ( | ) |
|
virtual |
Definition at line 46 of file btTriangleIndexVertexMaterialArray.cpp.
|
virtual |
Definition at line 68 of file btTriangleIndexVertexMaterialArray.cpp.
Member Data Documentation
|
protected |
Definition at line 53 of file btTriangleIndexVertexMaterialArray.h.
The documentation for this class was generated from the following files:
