LandScript - Controlling LandSerf by scripting

LandScript

LandScript allows LandSerf to perform operations on spatial data by issuing commands within a script. This has the advantage of allowing repeated tasks to be carried out easily such as combining many rasters together. By issuing commands from within a script, you can document, reuse and share sequences of operations using LandSerf.

Most of the operations available via menus in LandSerf can be executed using LandScript. In addition, numbers, strings of text and entire spatial objects can be stored and manipulated in variables and actions repeated in loops. This allows sophisticated map algebra operations to be built up without the need for knowledge of programming in Java. Since scripting involves no graphical interaction, operations can be faster and will use up less memory than their equivalent from within LandSerf.

Creating and Editing Scripts

Scripts can be edited and run by using the LandScript Editor (either started directly or selected from the File menu within LandSerf). Alternatively, they can be created in any text editor and run directly from the command line. All saved scripts should have the extension .lsc to identify them as LandScript files. They can be loaded into the editor using the open button button or the File->Open menu.

The advantages of using the LandScript Editor include coloured syntax highlighting, the ability to validate code before it is run, the separation of error reporting from standard output and the ability to stop scripts running mid-program.

LandScript can be laid out as you like, as long as each command line is separated by a semicolon. The LandScript editor will colour the elements of the script according to the following rules

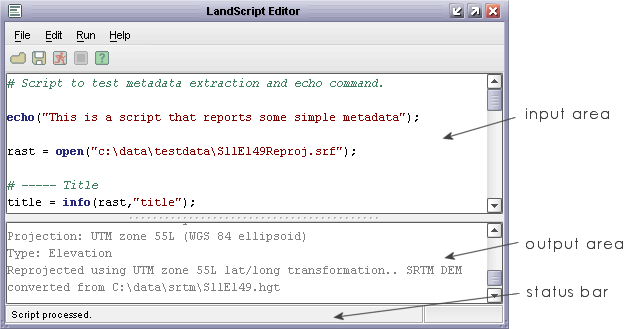

LandScript Editor

When you run a script (by pressing the run button button or selecting the Run->Run menu), any text output is displayed in the output area of the editor. Normal text is displayed in grey, and any errors in red. The status bar of the window will summarise the part of the script that may be causing problems should there be any errors in the interpreted script. A running script can be stopped at any point by pressing the stop button button (or the Run->Stop menu). When writing LandScript that involves much processing it can be useful to test the code before running it. Selecting the Run->Validate menu item will parse the code looking for syntax, command or typecasting errors without actually issuing the commands themselves.

All of the controls above as well as standard editing operations have keyboard shortcuts to speed up the write-test-debug-run cycle:

Control   Shortcut*
Run   Ctrl-R
Stop   Ctrl-P
Validate   Ctrl-D
Copy selected text in editor   Ctrl-C
Cut selected text from editor   Ctrl-X
Paste text into editor   Ctrl-V
Undo last text edit   Ctrl-Z
Redo last undone text edit   Ctrl-Y

*On the Mac, use the Command ('Apple') key with the relevant shortcut letter.
