Managing Products in an Assembly
 |
This task consists in managing products in an assembly. | |||||||||
 |
Open the AssemblyTools01.CATProduct document. | |||||||||
 |
1. | Select Tools -> Product Management... | ||||||||

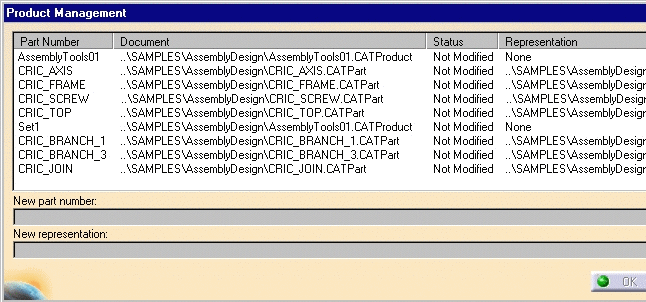

| The Product Management dialog box is displayed. | ||||||||||
|
|
||||||||||
The following is displayed for each
components contained in the assembly:
You can modify the part number in the New part number field and replace the associated representation in the New representation field of the selected product. |
||||||||||
| 2. | Click the ... button to open the Replace Representation dialog box. | |||||||||
| 3. | Click OK to validate. | |||||||||
|
|
||||||||||
