Fixing a Component
 |
This task shows you how to set the first constraint. This operation consists in fixing the position of a component in space so as to use this component as the base of the assembly. | |
 |
1. | Select CRIC_FRAME in the specification tree or in the geometry area. |
 |
2. | Click the Fix Component

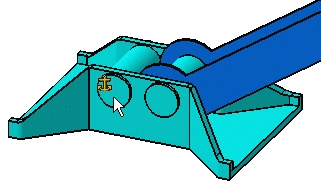

icon in the Constraints toolbar.The component CRIC_FRAME is immediately fixed. The application indicates this by displaying a green anchor symbol on the component. |
|
|
||

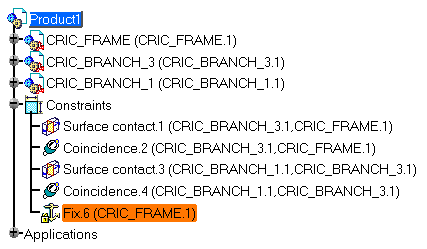

| Note also that the Constraints branch now displays the new constraint. The anchor symbol is preceded by a lock symbol, to make a distinction between "fix in space" and "fix operations". For more information, pleaser refer to Fixing a Component. | ||
|
|
|
|
|
||
