Adding and Renaming a New Component
 |
This task consists in adding a new component to the assembly. You will then rename this component. This component is a part created in the Part Design workbench. | ||
 |
1. | Click Product1 and select the
Part
icon in the Product Structure Tools toolbar. |
|
| The New Part: Origin Point dialog box appears, presenting two possible options: Either you define the point of your choice to locate the new part, or you use the origin point of the assembly as the origin point to be used for the part. | |||

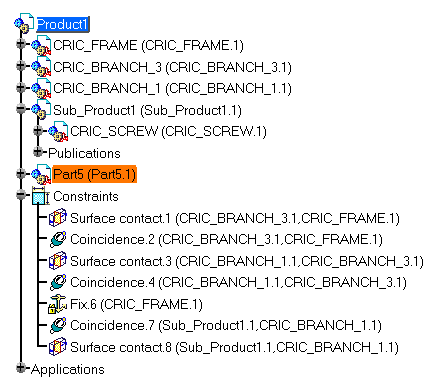

| 2. | Click No to use the origin point of
the assembly. The new component "Part5 (Part5.1)" is now displayed in the specification tree: |
||
 |
  |
||
 |
If the Manual Input option is activated (see Defining the Default Part Number), the Part Number dialog box appears before the New Part: Origin Point dialog box and lets you enter the name of your choice. |
||
| 3. | Right-click Part5 (Part5.1) and select the Properties... contextual command. | ||

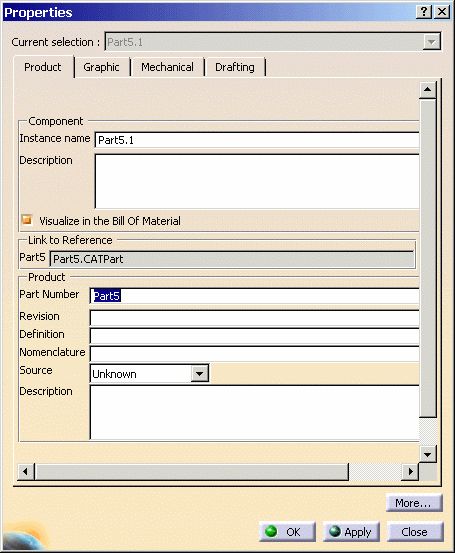

| 4. | In the Properties dialog box that
appears. The options available in the Product tab let you enter the information you required. |
||
|
|||
|
5. | Enter CRIC_JOIN.1 in the Instance name field and CRIC_JOIN in the Part Number field. | |
|
6. | Click OK to validate the operation. The new names are now displayed in the specification tree: |
 |
|
|
|||
