Detecting Clashes
 |
In this task, you will learn how to detect possible clashes between two components. | |
 |
1. | Select CRIC_BRANCH_1.1 in the specification tree. |

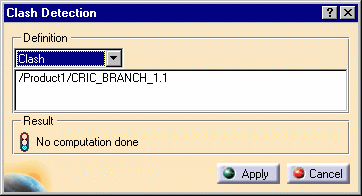

| 2. | Select the Analyze -> Compute Clash...
command. The Clash Detection dialog box appears. It displays the first component selected for computing possible clashes. |
|
 |
 |
|
|
3. | As you need another component, select
SUB_PRODUCT2 using the Ctrl key. This component also appears in the dialog box. |
|
4. | Click Apply
to compute clashes. The application detects a clash between the brown cylinder and the red face. This is indicated by two red circles in the geometry, as the arrow shows in the figure below: |
|
||
|
The result of the computation also appears in the dialog box. | |
| 5. | Click Cancel to close the dialog box.
Well, now that you know that your assembly needs to be modified to work properly, let's edit the cylinder. |
|
|
|
||
