Opening a CATDrawing Document

This task will show you how to open a CATDrawing Document.

For more details, see Infrastructure user's guide.
1. Click the Open icon I_OpenP2.gif (312 bytes) from the Standards toolbar or select the File -> Open commands.

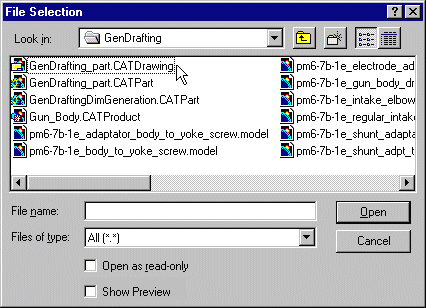

2. Select the document  to be opened. In this case, open GenDrafting_part.CATDrawing.

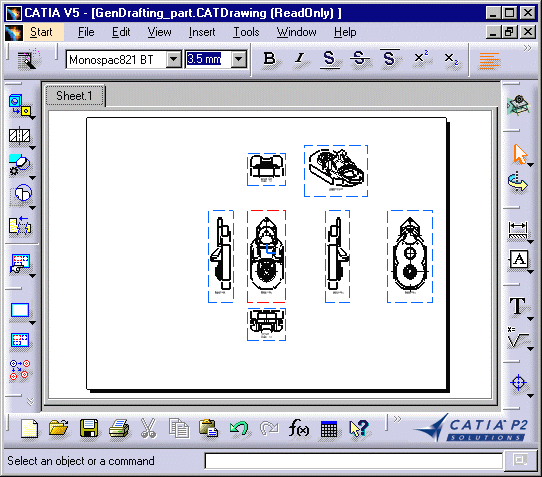

The GenDrafting_part.CATDrawing document opens as shown below:
