Using Default Values

This task shows you how to use default values. To understand how to set as default an element properties, see Setting As Default Properties.
1. Create the following text, see Creating a Free Text

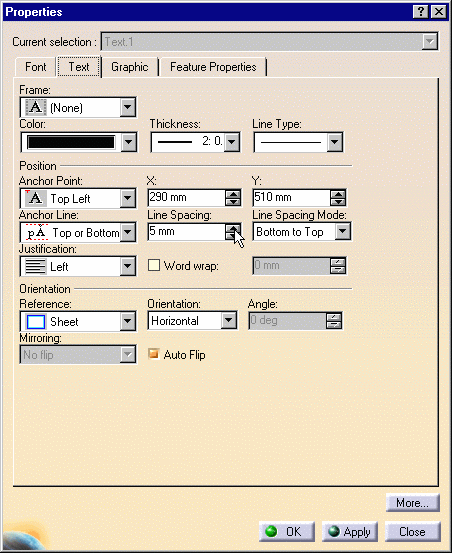

2. Select properties in the contextual menu (right-click). In font tab, select the bold italic style and in text tab increase the line spacing to 5 mm.

Click ok.
The text looks like this

3. Select the Set as default option from the contextual menu.

The values you set are stored.

Click in the drawing to finish the creation.
4. Select the font SSS1 in the Text Properties Toolbar.
5. Select the Original Properties option from the style toolbar to specify that from now, you  want to use the software default options apart from the Text Properties toolbar settings.

6. Create a new text.

The line spacing is equal to 0 mm and the font is regular.

Original Properties (that is to say the settings defined in the Text Properties toolbar) are taken into account.
7. Select the User Default Properties option from the style toolbar to specify that you  want to use the options set by default (see step 2.) apart from options set in the Text Properties toolbar.

8. Create a new text.


In this example you have modified the font in the Text Properties  toolbar, the new text will be created with default settings (see step 2.) apart from the font.

User Default Properties (that is to say the settings set as default, apart from those defined in the Text Properties toolbar) are taken into account.

9. Select the Only User Default Properties option from the style toolbar to specify that you  want to use only the options set by default (see step 2.).

10. Create a new text.

Only User Default Properties (that is to say only the settings set as default) are taken into account.



You will find here below a table with all the object that can be taken into account when using the Painter or copying the object format from one object to another.

Object

Properties

Are these taken into account?
Painter

Original Properties

User Default Properties

Only User Default Properties
Spline







 		 Name     n Original properties - -
Color     y

Toolbar

 - -
Linetype     y Toolbar - -
Thickness     y Toolbar - -
Pickable     n Original properties - -
Line























 Name     n Original properties - -
Color     y

Toolbar

 - -
Linetype     y Toolbar - -
Thickness     y Toolbar - -
Pickable     n Original properties - -
End Point 1 Cartesian coordinates   n - - -
  Polar coordinates   n - - -
End Point 2 Cartesian coordinates   n - - -
  Polar coordinates   n - - -
Length     n - - -
Angle     n - - -
Construction element     n Toolbar - -
Point











 		 Cartesian coordinates     n - - -
Polar coordinates     n - - -
Construction element     n Toolbar - -
Name     n Original properties - -
Color     y Toolbar - -
Symbol     y Toolbar - -
Pickable     n Original properties - -
Circle















 		 Center Point Cartesian coordinates   n - - -
  Polar coordinates   n   - -
Radius     n - - -
Construction Element     n Toolbar - -
Name     n Original properties - -
Color     y Toolbar - -
Linetype     y Toolbar - -
Thickness     y Toolbar - -
Pickable     n Original properties - -
Ellipse



















 		 Center Point Cartesian coordinates   n - - -
  Polar coordinates   n - - -
Major Radius     n - - -
Minor Radius     n - - -
Angle     n - - -
Construction element     n Toolbar - -
Name     n Original properties - -
Color     y Toolbar - -
Linetype     y Toolbar - -
Thickness     y Toolbar - -
Pickable     n Original properties - -
Hyperbol Focus Point Cartesian coordinates   n - - -
  Polar coordinates   n - - -
Center Point Cartesian coordinates   n - - -
  Polar coordinates   n - - -
Excentricity     n - - -
Construction Element     n Toolbar - -
Name     n Original properties - -
Color     y Toolbar - -
Linetype     y Toolbar - -
Thickness     y Toolbar - -
Pickable     n Original properties - -
Parabola



















 Focus Point Cartesian coordinates   n - - -
  Polar coordinates   n - - -
Apex Point Cartesian coordinates   n - - -
  Polar coordinates   n - - -
Construction Element     n Toolbar - -
Name     n Original properties - -
Color     y Toolbar - -
Linetype     y Toolbar - -
Thickness     y Toolbar - -
Pickable     n Original properties - -
Conic Center Point Cartesian coordinates   n - - -
  Polar coordinates   n - - -
Major Radius     n - - -
Minor Radius     n - - -
Angle     n - - -
Construction element     n - - -
Name     n - - -
Color     y - - -
Linetype     y - - -
Thickness     y - - -
Pickable     n - - -
Text String     n - - -
Name     n Original properties
Font Font   y Toolbar Toolbar User-Default
  Style   y Toolbar Toolbar User-Default
  Size   y Toolbar Toolbar User-Default
  UnderLine   y Toolbar Toolbar User-Default
  Color   y Toolbar Toolbar User-Default
  Ratio   y Original properties User-Default User-Default
  Strikethrough   y Toolbar Toolbar User-Default
  Superscript   y Toolbar Toolbar User-Default
  Subscript   y Toolbar Toolbar User-Default
  Overline   y Toolbar Toolbar User-Default
Text Frame   y Toolbar Toolbar User-Default
  Color   y Toolbar Toolbar User-Default
  Thickness   y Toolbar Toolbar User-Default
  Line Type   y Toolbar Toolbar User-Default
  Anchor point   y Toolbar Toolbar User-Default
  X   y Toolbar Toolbar User-Default
  Y   y Toolbar Toolbar User-Default
  Anchor Line   y Original properties Original properties User-Default
  Line Spacing   y Original properties User-Default User-Default
  Line Spacing Mode   y Original properties User-Default User-Default
  Justification   y Toolbar Toolbar User-Default
  Word wrap   y Original properties Original properties User-Default
  Reference   y Original properties User-Default User-Default
  Orientation   y Original properties User-Default User-Default
  Angle   y Original properties User-Default User-Default
  Mirroring   y Original properties User-Default User-Default
  Auto flip   y Original properties User-Default User-Default
Graphic Thickness   y Toolbar Toolbar User-Default
  Linetype   y Toolbar Toolbar User-Default
  Color   y Toolbar Toolbar User-Default
  Pickable   n Original properties -
Text with leader String     n - - -
Name     n Original properties
Font Font   y Toolbar Toolbar User-Default
  Style   y Toolbar Toolbar User-Default
  Size   y Toolbar Toolbar User-Default
  UnderLine   y Toolbar Toolbar User-Default
  Color   y Toolbar Toolbar User-Default
  Ratio   y Original properties User-Default User-Default
  Strikethrough   y Toolbar Toolbar User-Default
  Superscript   y Toolbar Toolbar User-Default
  Subscript   y Toolbar Toolbar User-Default
  Overline   y Toolbar Toolbar User-Default
Text Frame   y Toolbar Toolbar User-Default
  Color   y Toolbar Toolbar User-Default
  Thickness   y Toolbar Toolbar User-Default
  Line Type   y Toolbar Toolbar User-Default
  Anchor point   y Toolbar Toolbar User-Default
  Anchor Line   y Original properties User-Default User-Default
  Line Spacing   y Original properties User-Default User-Default
  Line Spacing Mode   y Original properties User-Default User-Default
  Justification   y Toolbar User-Default User-Default
  Word wrap   y Original properties User-Default User-Default
  Reference   y Original properties User-Default User-Default
  Orientation   y Original properties User-Default User-Default
  Angle   y Original properties User-Default User-Default
  Mirroring   y Original properties User-Default User-Default
  Auto flip   y Original properties User-Default User-Default
Graphic Color   y Toolbar Toolbar User-Default
  Linetype   y Toolbar Toolbar User-Default
  Thickness   y Toolbar Toolbar User-Default
  Pickable   n Original properties -

User-Default
View Scale     n Original properties User-Default User-Default
Rotation     n Original properties User-Default User-Default
View Name Prefix   n Original properties Original properties Original properties
  Ident   n Original properties Original properties Original properties
  Suffix   n Original properties Original properties Original properties
Dressup Hidden Lines   n Original properties Original properties Original properties
  Axis   n Original properties User-Default User-Default
  Center Line   n Original properties User-Default User-Default
  Thread   n Original properties User-Default User-Default
  Boundary fillet   n Original properties Original properties Original properties
  Uncut spec     Original properties Original properties Original properties
  3D Wireframe     Original properties Original properties Original properties
Visualization and Behaviour Display View Frame   n Original properties User-Default User-Default
  Lock View   n Original properties User-Default User-Default
Color     y Toolbar Toolbar User-Default
Linetype     y Toolbar Toolbar User-Default
Thickness     y Toolbar Toolbar User-Default
Pickable     n Original properties - -
Sheet







 Name     - Original properties Original properties Original properties
Global Scale     - Original properties User-Default User-Default
Projection method first angle standard   - Original properties User-Default User-Default
  second angle standard   - Original properties User-Default User-Default
Drawing Name     - - - -
Axis Line Name     n Original properties
Color     y Toolbar Toolbar User-Default
Linetype     y Original properties Original properties User-Default
Thickness     y Original properties Original properties User-Default
Pickable     n Original properties - -
Center Line Name     n Original properties
Color     y Toolbar Toolbar User-Default
Linetype     y Original properties Original properties User-Default
Thickness     y Original properties Original properties User-Default
Pickable     n Original properties - -
Thread Name     n Original properties
Color     y Toolbar Toolbar User-Default
Linetype     y Original properties Original properties User-Default
Thickness     y Original properties Original properties User-Default
Pickable     n Original properties - -
Dimension Drive Geometry     n Original properties Original properties Original properties
Value     n - - -
Value Driving   n Original properties Original properties Original properties
  Value Orientation Reference y Original properties User-Default User-Default
    Orientation y Original properties User-Default User-Default
    Angle y Original properties User-Default User-Default
  Dual Value Show dual value y Original properties User-Default User-Default
  Format Main Value n Original properties Original properties User-Default
    Dual Value n Original properties User-Default User-Default
  Fake Dimension Numerical n Original properties User-Default User-Default
    Alphanumerical n Original properties User-Default User-Default
Tolerance Main value Upper Value y Toolbar Toolbar User-Default
    Lower Value y Toolbar Toolbar User-Default
    First Value y Toolbar Toolbar User-Default
    Second Value y Toolbar Toolbar User-Default
  Dual value Upper Value n Original properties User-Default User-Default
    Lower Value n Original properties User-Default User-Default
    First Value n Original properties User-Default User-Default
    Second Value n Original properties User-Default User-Default
Dimension Line Representation   y Original properties Original properties User-Default
  Orientation   y Original properties Original properties User-Default
  Reference   y Original properties Original properties User-Default
  Angle   y Original properties Original properties User-Default
  Thickness   y Original properties User-Default User-Default
  Color   y Original properties User-Default User-Default
  Symbol 1 Shape y Original properties User-Default User-Default
    Color y Original properties User-Default User-Default
    Thickness y Original properties User-Default User-Default
  Symbol 2 Shape y Original properties User-Default User-Default
    Color y Original properties User-Default User-Default
    Thickness y Original properties User-Default User-Default
  Reversal   y Original properties User-Default User-Default
  Foreshortened Text Position n Original properties Original properties Original properties
    Orientation n Original properties Original properties Original properties
    Angle n Original properties Original properties Original properties
    Ratio n Original properties Original properties Original properties
    Point scale n Original properties Original properties Original properties
Extension Line Extremities Overrun n Original properties User-Default User-Default
    Blanking n Original properties User-Default User-Default
  Color   y Original properties User-Default User-Default
  Thickness   y Original properties User-Default User-Default
  Display first extension line   y Original properties User-Default User-Default
  Display second extension line   y Original properties User-Default User-Default
  Funnel Height n Original properties User-Default User-Default
    Angle n Original properties User-Default User-Default
    Width n Original properties User-Default User-Default
    Funnel mode n Original properties User-Default User-Default
    Funnel side n Original properties User-Default User-Default
Dimension Text Prefix - Sufix Symbol y Toolbar Toolbar User-Default
    Main Value y Toolbar Toolbar User-Default
  Associated texts Main Value y Original properties   User-Default
    Dual Value n Original properties   User-Default
  Dimension score options Main y Original properties   User-Default
    Dual y Original properties   User-Default
  Dimension frame options Element y Original properties   User-Default
    Group y Original properties   User-Default
Font Font   n Toolbar Toolbar User-Default
  Style   y Toolbar Toolbar User-Default
  Size   y Toolbar Toolbar User-Default
  UnderLine   n Toolbar Toolbar User-Default
  Color   y Toolbar Toolbar User-Default
  Strikethrough   n Toolbar Toolbar User-Default
  Overline   n Toolbar Toolbar User-Default
Text Frame   y Toolbar Toolbar User-Default
  Color   y Toolbar Toolbar User-Default
  Thickness   y Toolbar Toolbar User-Default
  Line Type   y Toolbar Toolbar User-Default
Graphic Color   y Original properties User-Default User-Default
  Linetype   y Original properties User-Default User-Default
  Thickness   y Original properties User-Default User-Default
  Pickable   y Original properties - -
Area Fill Name     n Original properties
Color     - Original properties User-Default User-Default
Linetype     - Toolbar User-Default User-Default
Thickness     - Toolbar User-Default User-Default
Pickable     n Original properties User-Default User-Default
Type Dotting Pitch y Toolbar Original properties User-Default
    Zigzag y Toolbar Toolbar User-Default
    Color y Toolbar Toolbar User-Default
  Coloring Color y Toolbar Toolbar User-Default
  Hatching Number of hatching y Toolbar Toolbar User-Default
    n-th hatching properties y Toolbar Toolbar User-Default
2D Component Name     n - - -
Color     y Original properties - -
Linetype     y Original properties - -
Thickness     y Original properties - -
Pickable     n Original properties -
Angle     n Original properties - -
Scale     n Original properties - -
X     - - - -
Y     - - - -
Roughness Symbol Font Font   n Toolbar Toolbar Toolbar
  Style   y Toolbar Toolbar Toolbar
  Size   y Toolbar Toolbar Toolbar
  Color   y Toolbar Toolbar Toolbar
Text Color     Toolbar User-Default User-Default
  Thickness   n Toolbar User-Default User-Default
  Line Type   n Toolbar User-Default User-Default
  Anchor Point   n Toolbar User-Default Original properties
  Anchor Line   - Original properties Original properties Original properties
  Reference   n Toolbar User-Default User-Default
  Orientation   n Toolbar User-Default User-Default
  Angle   n Toolbar User-Default User-Default
Graphic Color   y Original properties User-Default User-Default
  Line Type   y Original properties User-Default User-Default
  Thickness   y Original properties User-Default User-Default
Rugosity type     n Original properties Original properties Original properties
Contact rugosity     n Original properties Original properties Original properties
Rugosity mode     n Original properties Original properties Original properties
Name     n Original properties User-Default User-Default
Welding Symbol Length of weld side 1     n Original properties User-Default User-Default
size of weld side 1     n Original properties User-Default User-Default
weld type side 1     n Original properties User-Default User-Default
Length of weld side 2     n Original properties User-Default User-Default
size of weld side 2     n Original properties User-Default User-Default
weld type side 2     n Original properties User-Default User-Default
field weld symbol     n Original properties User-Default User-Default
weld-all-around symbol     n Original properties User-Default User-Default
Font Font   y Toolbar User-Default User-Default
  Style   y Toolbar Toolbar User-Default
  Size   y Toolbar Toolbar User-Default
  Color   y Toolbar Toolbar User-Default
Text Frame color     Toolbar Toolbar User-Default
  Frame Thickness   y Toolbar Toolbar User-Default
  Frame Line Type   y Toolbar Toolbar User-Default
  Reference   n Original properties User-Default User-Default
  Orientation   - Original properties User-Default User-Default
  Angle   n Original properties User-Default User-Default
Graphic Color   y Toolbar Toolbar User-Default
  Line Type



 y Toolbar Toolbar User-Default
  Thickness   y Toolbar Toolbar User-Default
Name     n Original properties User-Default User-Default
Balloon
String     n - - -
Font Font   n Toolbar Toolbar User-Default
  Style   n Toolbar Toolbar User-Default
  Size   n Toolbar Toolbar User-Default
  Color   n Toolbar Toolbar User-Default
Text Frame color   y Original properties Toolbar User-Default
  Thickness   y Toolbar Toolbar User-Default
  Frame Line Type   y Toolbar Toolbar User-Default
  Anchor Point   n Toolbar Toolbar Toolbar
  Anchor Line   n Original properties Original properties Toolbar
  Reference   n Original properties Original properties Original properties
  Orientation   n Original properties Original properties Original properties
  Angle   n Original properties Original properties Original properties
Graphic Color   y Original properties Toolbar User-Default
  Line Type



 y Toolbar Toolbar User-Default


Thickness

   y Toolbar Toolbar

User-Default
Name     n Original properties User-Default

User-Default
Datum Feature
String     n - - -
Name     n Original properties User-Default User-Default
Font Font   n Toolbar Toolbar User-Default
  Style   n Toolbar Toolbar User-Default
  Size   n Toolbar Toolbar User-Default
  Color   n Toolbar Toolbar User-Default
Text Frame color   y Original properties User-Default User-Default
  Thickness   y Toolbar Toolbar User-Default
  Frame Line Type   y Toolbar Toolbar User-Default
  Anchor Point   n Toolbar Toolbar User-Default
  Anchor Line   n Original properties Original properties User-Default
  Reference   n Original properties User-Default User-Default
  Orientation   n Original properties Original properties Original properties
  Angle   n Original properties Original properties Original properties
Graphic Color   y Original properties User-Default User-Default
  Line Type



 y Toolbar Toolbar User-Default



 Thickness



 y Toolbar

Toolbar

User-Default
Datum Target
String     n - - -
Diameter     y - Original properties Original properties
Name     n Original properties User-Default User-Default
Font Font   y Original properties User-Default User-Default
  Style   y Original properties User-Default User-Default
  Size   y Original properties User-Default User-Default
  Color   y Original properties User-Default User-Default
Text Frame color   y Original properties User-Default User-Default
  Thickness   y Original properties User-Default User-Default
  Frame Line Type   y Original properties User-Default User-Default
  Anchor Point   y Original properties User-Default Toolbar
  Anchor Line   n Original properties Original properties Original properties
  Reference   n Original properties User-Default User-Default
  Orientation   n Original properties Original properties Original properties
  Angle   n Original properties Original properties Original properties
Graphic Color   y Original properties User-Default User-Default
  Line Type



 y Original properties User-Default User-Default


Thickness



 y

Original properties

User-Default

User-Default
Geometrical Tolerance
Name     n Original properties - -
Primary Geometric Characteristic     n - - -
Diameter Zone     n - - -
Tolerance Value     n - - -
tolerance Feature Modifier     n - - -
Primary Datum Text     n - - -
Primary Datum Feature Modifier     n - - -
Secondary Datum Text     n - - -
Secondary Datum Feature Modifier     n - - -
Tertiary Datum Text     n - - -
Tertiary Datum Feature Modifier     n - - -
Font Font   n Toolbar - -
  Style   n Toolbar - -
  Size   n Toolbar - -
  Color   n Toolbar - -
Text Frame color   y Original properties - -
  Thickness   y Original properties - -
  Frame Line Type   y Original properties - -
  Anchor Point   n Original properties - -
  Anchor Line   n Original properties - -
  Reference   n Original properties - -
  Orientation   n Original properties - -
  Angle   n Original properties - -
Graphic Color   y Original properties - -
  Line Type



 y Original properties - -


Thickness



 y

Original properties

-

-




Back Up Next
