This task shows you how to create circles and circle centers
using coordinates. |
![](../icons_C2/common/ascenari.gif) |
1. Select the Circle icon from the Geometry
creation toolbar.
|
|

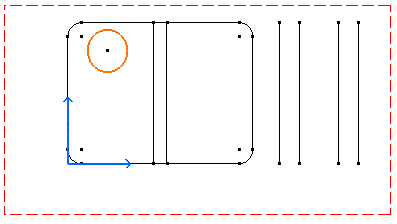

The Tools toolbar displays circle value fields.![gscreatingcircles15.gif (3859 bytes)](images/gscreatingcircles15.gif) |
2. Enter the Circle Center coordinates. For example, H: 0.75in and
V: 2in. |
|
3. Press Enter.
|
|
4. Enter the circle radius. For example, R: 0.375in. |
5. Press Enter.
|
|

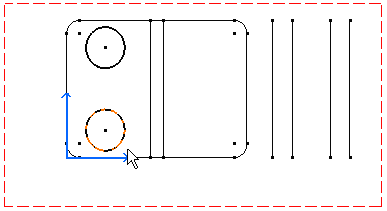

6. Repeat the scenario to create the second circle using the same
circle radius values.
|
|
Now, let's create inner circles. For this: 7.
Click again the Circle icon .

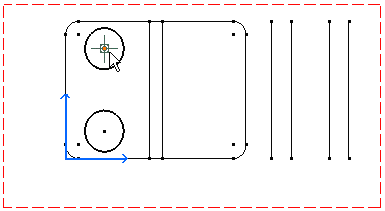

8. Select the existing circle center.
|
|
9. Enter the center circle radius.

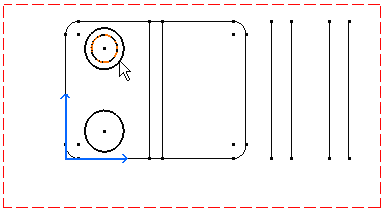

10. Press Enter. ![](images/gscreatingcircles08.gif)
|
|

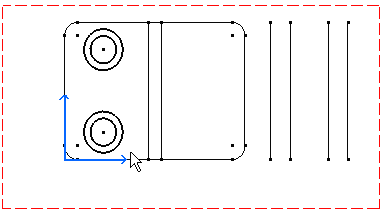

11. Repeat the scenario to create the second inner circle. This is what you obtain:
|
|
You can also select the geometry to be translated first and then the Translate command
. |
|

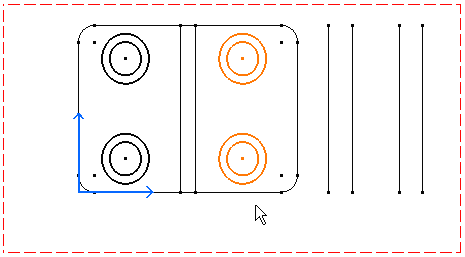

You can then translate the circles newly
created and get the following result: |
|
