This task shows
how to display and edit the properties of a pad. |
|
To perform this scenario, for
example you can open the Properties.CATPart
document. |
|
1. |
Select the feature, that is Pad2,
in the specification tree, . |
|
|
|
|
2. |
Select the Edit->Properties command or select the Properties
command on the contextual menu. The Properties dialog box displays,
containing these tabs:
| Mechanical |
| Feature Properties |
| Graphic |
|
|
|
The Mechanical
tab displays the Update status of the pad.
The following attributes characterize features:
|
|
|
| Deactivated: checking this option will prevent
the application from taking
deactivated features into account during an update operation. |
| To Update: indicates that the selected feature is to be updated. |
| Unresolved: indicates that the selected feature
cannot be computed
by the application. You cannot control the last two options. The symbol displayed in
front of each attribute may appear in the specification tree in some circumstances.
For more about updates, refer to Updating Parts.
|
|
|
|
3. |

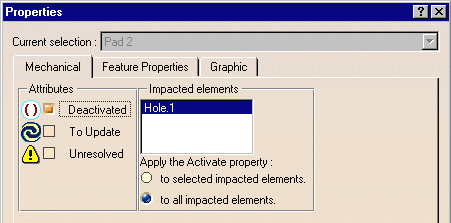

Check the Deactivated option to deactivate the pad. You will note
that a new frame is displayed, providing additional information. CATIA actually warns you
that the operation will affect the only child of the pad, that is the hole.
In certain cases, features may have several children. What you need to do is select the
children in the list and check the first option if you wish to deactivate them or just
check the second option to deactivate all of the children affected.
|
|
|
|
|
4. |
Click the Feature Properties tab. |
|
5. |
Enter "NewPad" as the new name for the pad in the Name: field.
|
|
6. |
Click Apply to display the new name in the specification tree. |
|
7. |
Click the Graphic tab to change the color of the feature.
The graphic properties available for editing are:
| Fill Color (colors the current object) and
transparency |
| Edge Color, Line type and Weight |
| Line and Curve Color, Line type and Weight |
| Point Color and Symbol |
| Show and Pick attributes |
| Set as default |
To have details
about how to change graphic properties, please refer to CATIA-
Infrastructure User's Guide Version 5.
|
|
8. |
Press OK to confirm the operation and close the dialog box. The
geometry no longer shows the deactivated features and the specification tree displays red
parentheses on them to symbolize their status.
|
|
|
|
|
|
