You can
create points, curves, and lofted surfaces from a Microsoft ® Excel
spreadsheet containing macros, and in which you define:
| the points space coordinates |
| the points through which the curves pass |
| the curves used as profiles for the lofted surface. |
|
|
Only Excel sheets
created with Excel 97 and subsequent versions are supported.
Therefore this capability is available with WindowsTM
only. |
|
Open any .CATPart document containing an Open
Body (automatically created when entering the Wireframe and Surface Design
workbench). |
|
-
Open the PointSplineLoftFromExcel.xls
file from the Samples directory into Excel, and enable the macros.
|
|

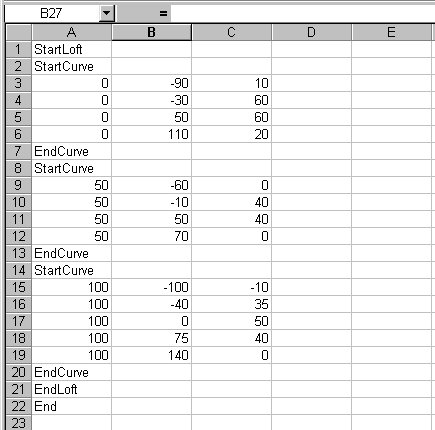

The document looks like this:
|
|
|
|
It contains:
| instructions, such as StartLoft and EndLoft, StartCurve and EndCurve
between which other instructions or numerical data are given. |
| numerical data that are point space coordinates: X, Y, Z
respectively from the left to the right |
| a final End instruction |
In the above example, a loft is to be created based on three curves.
The first and second curve pass through four points, and the third curve
passes through five points.
The elements will be created from top to bottom, i.e. the four points
of the first curve will be created, then the curve itself, then the points
making up the second curve and the latter itself, and so forth. |
|
You can add rows to create more elements or delete rows to
edit elements or delete them (point), then save the spreadsheet.
|
|
-
From Excel,
select the Tools -> Macro -> Macros menu item.

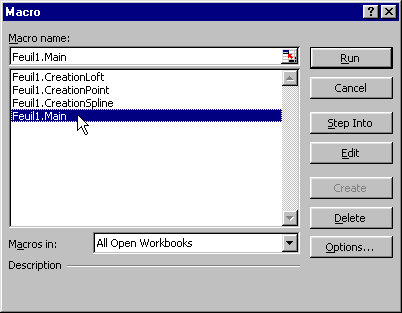

The Macro dialog
box is displayed.
|
|
|
-
Select the Feuil1.Main macro and click Run.
|
|

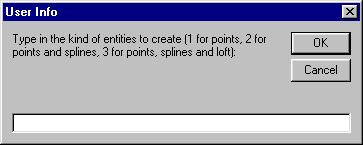

The User Info dialog box is
displayed. |
|
|
-
Key in the type of element to be generated:
|
|
-
Click OK.

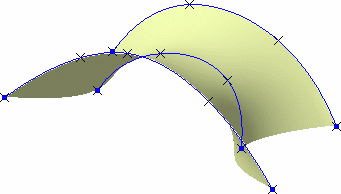

The elements (points, curves, and lofted surface) are created in the
geometry. The specification tree is updated accordingly.
|
|
|
|
The Wireframe and Surface workbench needs not to be
loaded, provided a CATIA session is running and a .CATPart document is
loaded. |
|
