Entering the Workbench

This first task shows you how to enter the Wireframe and Surface workbench and open a  design part.

Before starting this scenario, you should be familiar with the basic commands common to all workbenches. These are described in the Infrastructure User's Guide.
  1. Select Mechanical Design -> Wireframe and Surface Design from the Start menu.

The Wireframe and Surface workbench is displayed.

  1. Select File -> Open then select the GettingStartedWireframeAndSurface.CATPart document.

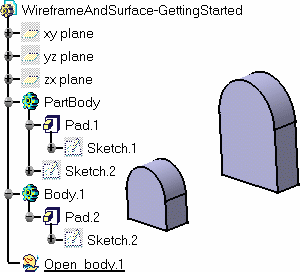

The following  design part is displayed.

In the rest of this scenario, you will add to the existing elements of this part to complete the design.
