Creating Two Swept Surfaces

This task shows how to create two swept surfaces between opposite edges of the two pads.

  1. Click the Sweep icon I_SweepP2.gif (233 bytes).

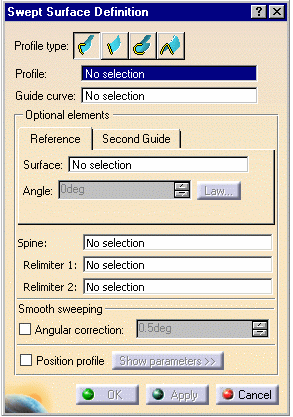

The Swept Surface Definition dialog box appears.

  1. Select the vertical edge of Pad 2 as profile.

  2. Select the bottom line as first guide curve.

  3. Click the Second Guide tab then select  the inclined line as second guide curve.

  4. Click OK to create the swept surface.

  1. Repeat these steps on the other side to create a second swept surface.

In the opposite figure the previously created lofted surface is hidden in order to illustrate the swept surfaces better.
