Joining Surfaces

This task shows how to join the lofted and swept surfaces.

  1. Click the Join icon  .

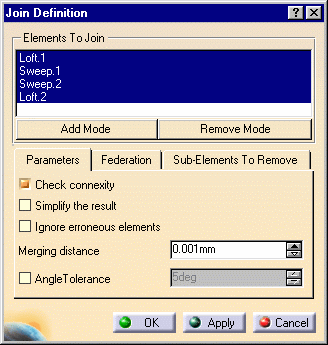

    The Join Definition dialog box appears.

  1. Select the two lofted surfaces and the two swept surfaces.

  2. Click OK to create the joined surface
The specification tree is updated to include the joined surface.
