Printing using a Clipping Operator
 |
This task will show you how to print using a clipping operator with scaling support. |
 |
Open the Product_Balloon.CATDrawing document. |
 |
1. Select File -> Print |

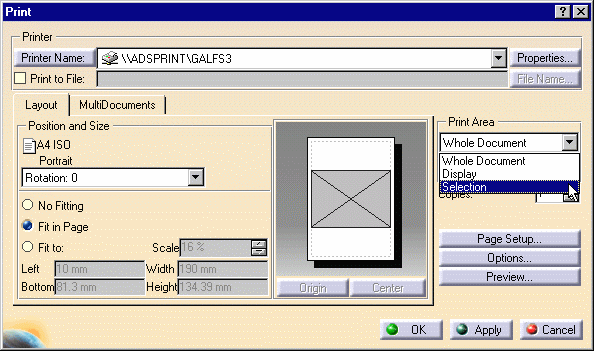

2. In the Print Dialog Box, choose Selection in Print Area. It activate the select mode button and allows you to select the area to print.
3. Click on the select mode
button
4. Click ok to print the area. |
|
|
|

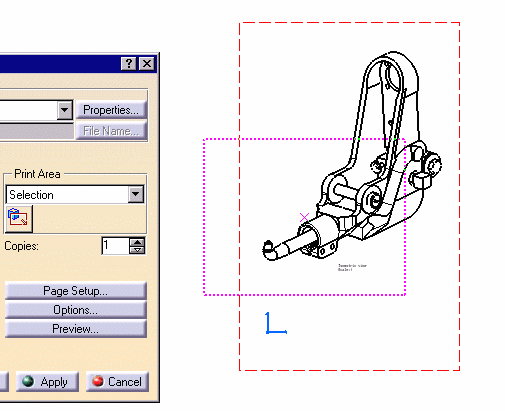

and drag the
cursor on the drawing to define the Print Area.
