Export Data

This task shows you how to transfer Nodal type images into a .txt or .xls file. This can be performed in the case of hybrid or non-hybrid models.

Open sample35.CATAnalysis document from the samples directory for this task.

1. Right-click on the image feature in the specification tree.

2. Select the Export Data option displayed in the contextual menu .

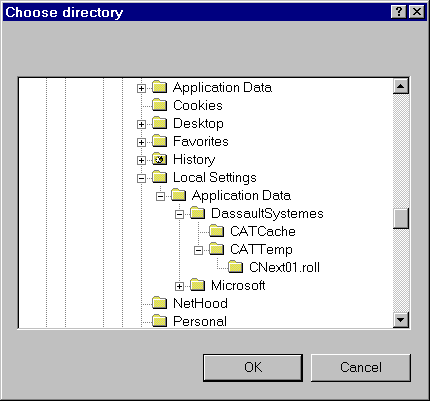

The Export Data dialog box appears, which lets you define the desired directory, name and type of the file to be generated.

Output directory: you can select the directory in which the data will be exported.

	`File name:` You can choose the desired file name.
	`File type:` The file type can be either .txt or .xls.

3. Click OK in the Export Data dialog box.

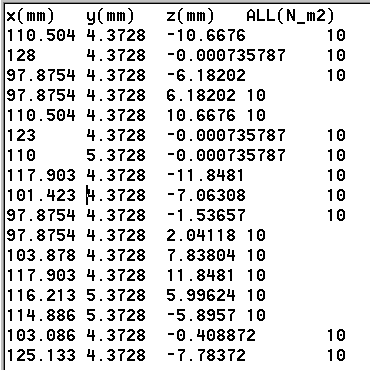

The file appears as shown here:

	x, y and z values
	values previously assigned to the image via the Filter operation.
