You
can re-dimension, move and rotate section planes directly. As you move the cursor
over the plane, the plane edge or the local axis system, its appearance
changes and arrows appear to help you.
Sectioning results are updated as
you manipulate the plane.
This task illustrates how to
manipulate section planes directly. |
![](../icons_C2/common/aprereq.gif) |
Open the WeldPlanner.CATProduct
document. |
![](../icons_C2/common/ascenari.gif) |
1. |

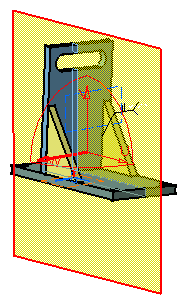

Click the Sectioning
icon. The Sectioning Definition dialog box appears and the
section plane is automatically created. |
|
|
![](images/bt176.gif)
|
|
|
A Preview window, showing the generated section, also appears. The
generated section is automatically updated to reflect changes made to the
section plane.
You can re-dimension the section plane: |
|
2. |
Click
and drag plane edges to re-dimension plane. A dynamic plane dimension is indicated as you
drag the plane edge. |
|
|
![](images/bt181.gif)
|
|
|
You
can view and edit plane dimensions in the Edit
Position and Dimensions command. The plane height corresponds to its
dimension along the local U-axis and the width to its dimension along the
local V-axis.
|
|
3. |
You can move the section plane along the
normal vector of the plane: move
the cursor over the plane, click and drag to move the plane to the
desired location.
|
|
|
![](images/bt182.gif)
|
|
4. |

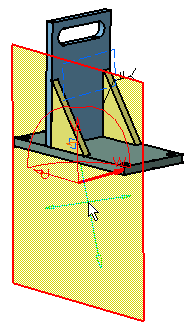

You can move the section plane in the U,V
plane of the local axis system: press
and hold down the left mouse button, then the middle mouse button and drag
(still holding both buttons down) to move the plane to the desired
location. |
|
|
![](images/bt183.gif)
|
|
5. |
You can rotate the section plane around its axes: move
the cursor over the desired plane axis system axis, click and drag to
rotate the plane around the selected axis. |
|
|
![](images/bt184.gif)
|
|
6. |
(Optional)
Click the
Reset Position
icon to restore the center of the plane to its original position. |
|
|
![](images/bt176.gif)
|
|
7. |
Click
OK in the Sectioning Definition dialog box when done. |
|
