Analyzing Assembly Constraints
 |
This task shows you how to analyze the status of all assembly constraints defined for Product1. | |
 |
1. | Select the Analyze ->

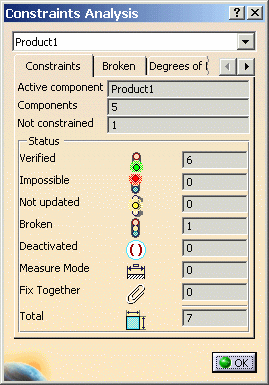

Constraints... command. The Constraints Analysis dialog box that appears displays all the information you need. The Constraints tab contains a detailed status of the assembly: the number of non-constrained components and the status of the defined constraints. |
 |
 |
|
|
2. | Click the Broken tab to see the list of broken constraints. We have only one broken constraint, a contact constraint. |
| 3. | Click on the name of the constraint. The constraint is highlighted in the specification tree. |
|
| 4. | Click on OK to close the dialog
box.
Reconnecting this contact constraint is our next task. |
|
|
|
||
