This task shows you how to replace Sub_Product1.CATProduct by another component. |
 |
1. |
Select Sub_Product1.CATProduct in the specification tree. |
|
2. |
Click the Replace Component icon
in the Product Structure Tools toolbar. |
|
3. |
In the dialog box that appears, select
Sub_Product2.CATProduct as the replacement component and click Open.

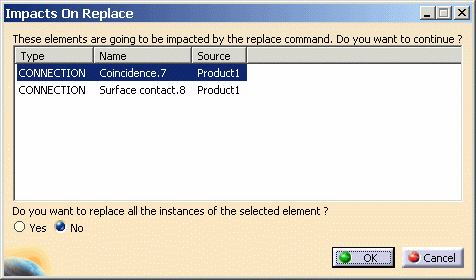

The Impacts on Replace dialog box is displayed:
|
|
|
|
|
4. |
Check Yes to replace all instances of the
selected element and click OK to confirm. |
|
|

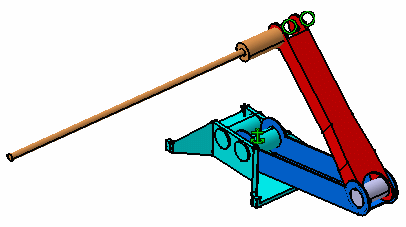

Sub_Product1.CATProduct is no
longer visible. This is Sub_Product2.CATProduct: |
|
|
-
|
|
|
If necessary update the
document.
Note that the coincidence constraint
is maintained. This is due to the publication of the axis used in the constraint
definition. As the axis is a published element, the application can reconnect the
constraint.
Conversely, the contact constraint is broken. You will know how to
reconnect it later.
|
 |
