Scaling a View

This task will show you how to modify the scale of a view.



Before You Begin, make sure you customized the following settings:

Grid:
De-activate the Grid icon from the Tools toolbar (bottom right).

View names and scaling factors:
Go to Tools->Options (Mechanical Design -> Drafting option at the left of the dialog box, Layout tab) and check the View name and Scaling factor options.



Open the GenDrafting_detailview_scale.CATDrawing document.
1. Right-click the frame of the view to be modified. In this case, right-click the detail view.


2. Select the Properties option from the displayed contextual menu.

3. Enter the new Scale value in the Properties dialog box. For example, 3.


4. Click OK.

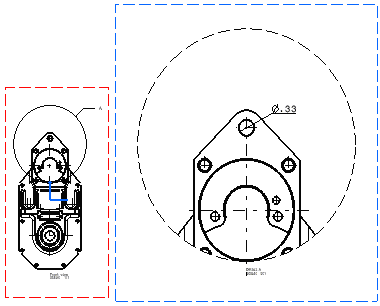

The detail view is updated. Note that only the generative elements (axes included) are scaled, neither the view name nor the dimension.
