Creating and Modifying Views from a .Model

Before You Begin, make sure you customized the following settings:

Grid:
De-activate the Grid icon from the Tools toolbar (bottom right).

View names and scaling factors:
Go to Tools->Options (Mechanical Design -> Drafting optionat the left of the dialog box, Layout tab) and check the View name and Scaling factor options.

	This task will show you how to create and modify views from a `.model` on the condition this `.model` is a master model exact solid.

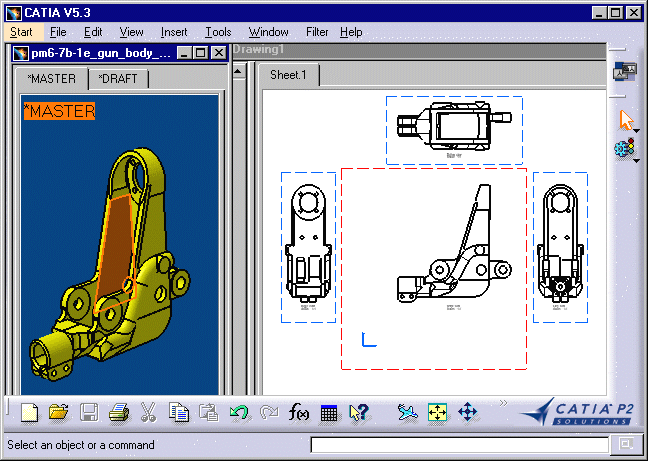

	Open pm6-7b-1e_gun_body_draw.model. Tile the windows horizontally to see your drawing sheet and your Sheet Metal part at the same time.
	1. Create projection views from this `.model.`


	The only modifications you can perform on a CATDrawing are dressup modifications. The dressup modifications applied to any .model are not associative.
