Modifying a Sheet
 |
This task will show you how to modify the standard, format, orientation and/or scale of a sheet. Doing this amounts to modifying the options you selected in the New Drawing dialog box when defining the sheet. | ||
 |
Create a sheet using the ISO standard, the A0 ISO format, and the Landscape orientation in the New Drawing dialog box. | ||
 |

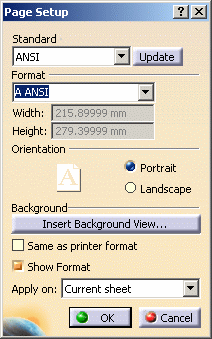

1. Select File -> Page Setup from the menu bar. The Page Setup dialog box appears. | ||
2. From the Page Setup dialog box, select the ANSI standard, and the A ANSI format. |
 |
||
| You can update the current standards by clicking the Update button. This copies the most recent version of the standard file in the drawing, thus reflecting the latest changes an administrator or user may have performed in the standard file. | |||
|

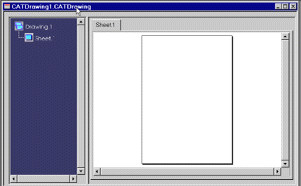

3. Select the Portrait orientation, and then click OK. The sheet is modified. |
|||
 |
|||
|
|||
