Modifying Geometrical Tolerances

atarget.gif (1372 bytes) This task shows you how to modify a geometrical tolerance.
aprereq.gif (1223 bytes) Open the Brackets_views03.CATDrawing document. Create a geometrical tolerance.

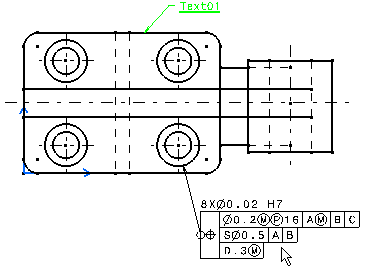

ascenari.gif (1364 bytes) 1. Double-click the geometrical tolerance you want to modify.

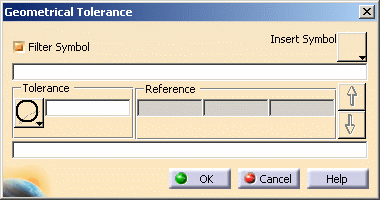

The Geometrical Tolerance dialog box is displayed.

2.  Modify any desired value from the dialog box.

3. Click OK.

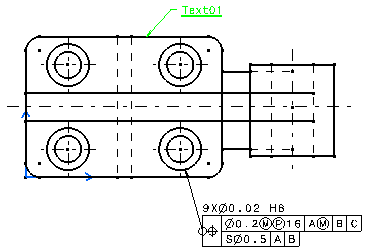

4. Click in the free space to validate the geometrical dimension modification.
