Creating Solid Properties
 |
A solid property is a physical property assigned to a 3D part. A solid property references a material assigned to this 3D part. A solid property is associative to the geometry this property points at. To know more about this property, see Solid Property in the Finite Element Reference Guide.
|
 |

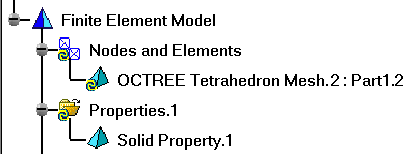

This task shows you how to add solid physical properties to a modified product, on the condition a mesh part was
previously created.
|
 |
Open the sample41.CATAnalysis
document.
|
 |

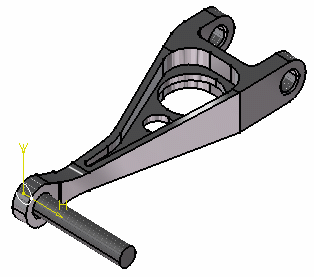

1. Insert a new part called sample03.CATPart
in the product. For this, right-click on the Product feature in the specification tree and select the Components -> Existing Component option from the displayed contextual menu. You will then select the desired part from the displayed File Selection dialog box.
2. Add a mesh part to the
CATAnalysis document.
The OCTREE Tetrahedron Mesh.3 : Part1.1 feature now appears in the specification tree and the green OCTREE symbol is displayed on the part. 3. Assign a solid property to the
CATAnalysis document. The Solid Property dialog box appears.
4. Select the part to be applied a Solid property. in this particular case, select the part to which you just added a mesh.
The Solid Property dialog box now appears as shown here:

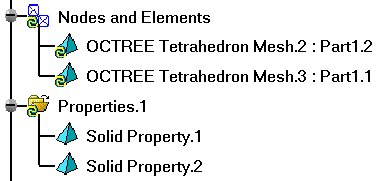

5. Click OK in the Solid Property dialog box. The solid property is created. The specification tree is updated: the Solid Property.2 feature is displayed.
|
 |
You can manually add and delete
Solid properties.
|
|
|
and then select the newly inserted part component that now appears in the
document.
.
