Adding a Parameter to a Feature

This task explains how to add two parameters to a circular pattern feature. One parameter is a multiple value string, the other is a mass with upper and lower bounds.


  1. Open the KwrBallBearing1.CATPart document.

  2. In the specification tree, select the root feature, then select the Start->Knowledgeware->Knowledge Advisor command to access the Knowledge Advisor workbench.

  3. In the specification tree, select the CircPattern.1 feature.

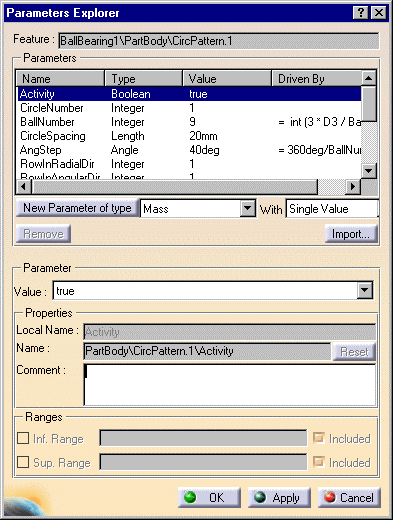

  4. Click the Parameters Explorer  icon, the dialog box below is displayed:


  5. In the New Parameter of Type list, select the String type, then in the opposite field ('With'), select the Multiple Values item. Click New Parameter of Type.

  6. In the Value list dialog box:
         a) enter the Type1 string, then press Enter
         b) enter the Type2 string, then press Enter
         c) click OK to go back to the Parameter Explorer dialog box.

  7. If need be, rename the created parameter in the Local Name field and add a comment.

  8. In the New Parameter of Type list, select the Mass type, then in the opposite field ('With'), select the Single Value item. Click New Parameter of Type. The MASS.1 name is displayed by default in the Properties and a default value of 0kg is assigned to the created parameter.

  9. Modify these values as indicated on the figure below:

  10. Click OK. Both parameters are displayed in the specification tree right below the CircPatter.1 feature.

    Parameters added by using the Parameters Explorer are displayed right below the feature they are assigned.
