This task shows how to
create a loft feature.
You can generate a loft feature by sweeping one or more planar section
curves along a computed or user-defined spine. The feature can be made to
respect one or more guide curves. The resulting feature is a closed
volume. |
|
Open the Loft1.CATPart
document. |
|
1. |
Click the Loft icon
.
The Loft Definition dialog box appears.
|
|
|
|
|
2. |

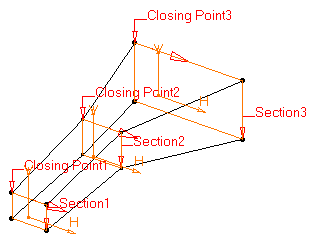

Select the three section curves as
shown:
They are highlighted in the geometry area.
|
|
|
|
|
|
The Loft capability assumes that the
section curves to be used do not intersect. |
|
|
|
|
3. |
Click Apply to preview the loft to be
created.
You can note that by default, tangency discontinuity points are
coupled: |
|
|
|
|
|
Several
coupling types are available in the Coupling tab:
| Ratio: the curves are coupled according to the
curvilinear abscissa ratio. |
| Tangency: the curves are coupled according to their
tangency discontinuity points. If they do not have the same number of
points, they cannot be coupled using this option. |
| Tangency then curvature: the curves are coupled according
to their curvature discontinuity points. If they do not have the same
number of points, they cannot be coupled using this option. |
| Vertices: the curves are coupled according to their
vertices. If they do not have the same number of vertices, they cannot
be coupled using this option. |
|
|
4. |
For the purpose of our scenario, you are going to use guide curves.
Click the Guide field and select the four joins. The curves to be used
must be joined.
They are highlighted in the geometry area.
|
|
|
It is possible to edit the loft reference elements by first selecting a
curve in the dialog box list then choosing a button to either:
| Remove the selected curve |
| Replace the selected curve by another curve. |
| Add another curve. |
|
|
|
By default, the application computes a spine, but if you
wish to impose a curve as the spine to be used, you just need to click the
Spine tab then the Spine field and select the spine of your choice in the
geometry. |
|
|
The Relimitation tab lets you specify the loft
relimitation type. You can choose to limit the loft only on the Start
section, only on the End section, on both, or on none.
|
when one or both
are checked: the loft is limited to corresponding section |
|
when one or both
are when unchecked: the loft is swept along the spine:
|
if the spine
is a user spine, the loft is limited by the spine extremities |
|
if the spine
is an automatically computed spine, and no guide is selected: the
loft is limited by the start and end sections |
|
if the spine
is an automatically computed spine, and guides are selected, the
loft is limited by the guides extremities. |
|
|
|
|
|
|
5. |
Click OK to create the volume.
The feature (identified as Loft.xxx) is added to the specification
tree.
|
|
|
