Reconnecting a Replaced Representation
 |
This task first consists in replacing a representation then in reconnecting geometrical elements. | |
 |
Open the Reconnect01.CATProduct document. | |
 |

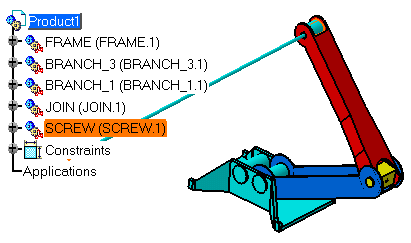

1. | Right-click on SCREW in the specifications tree. |
 |
||
| 2. | Select Representations ->
Manage Representations from the contextual menu.

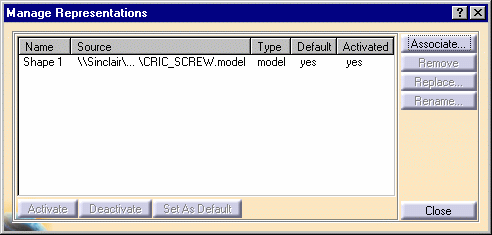

The Manage Representation dialog box is displayed. |
|
|
||
| 3. | Click on CRIC_SCREW.model in the Source field. | |
| 4. | Click Replace...
The Associate Representation dialog box is displayed. |
|
| 5. | Navigate to open the CRIC_SCREW_NEW.model. | |

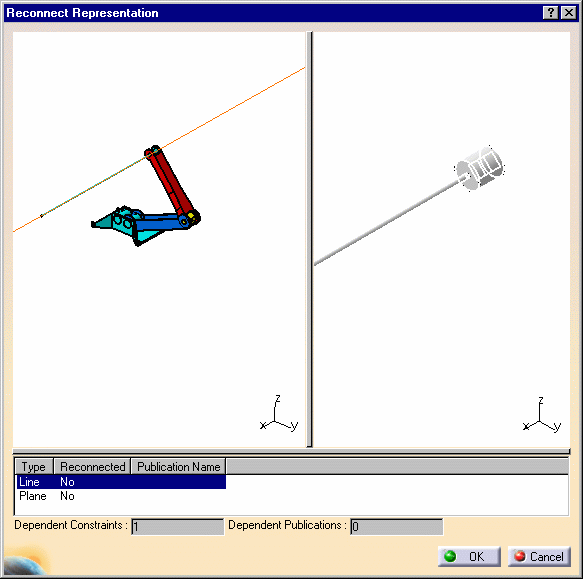

| 6. | The Reconnect Representation dialog box is displayed. | |
 |
||
| A window containing the assembly with the old representation
is displayed in the window to the left of the dialog box.
A window containing only the new representation is displayed to the right of the dialog box. You are going to reconnect the geometrical elements in this window.
|
||
| 5. | To reconnect the highlighted geometric element of the old representation, that is a line, select the axis of the new representation. | |
| 6. | Select Plane and select the circular face as shown to reconnect the plane. | |
|
|
||
| Two "Yes" are now displayed in the Reconnect field. | ||
| 6. | Click OK to validate. | |
| 7. | Click Close to close the Manage Representation

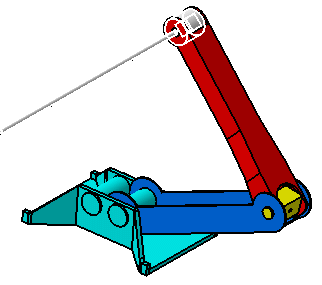

dialog box. The representation is replaced and constraints are valid. |
|
|
|
||
|
|
||
