Selecting the Constraints of Given Components
 |
This task consists in
selecting all the constraints defined for a component. You can only select child components of the active component. The Component Constraints command allows you to select the constraints linked to one or more selected components. These components are child components of the active component. |
|
 |
Open the GettingStarted.CATProduct document and use the Show capability if the constraints are not visible. | |
 |
1. | Select the component
whose constraints are to be selected. Multiselection is also possible. |
|
|
||
| 2. | Right-click and select CRIC_FRAME.1 object -> Component Constraints contextual command. | |

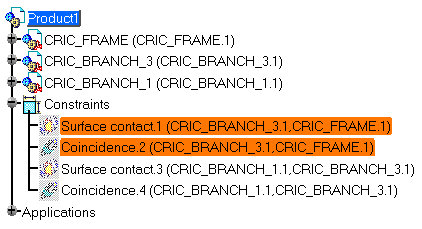

| The application highlights two constraints, both in the specification tree and the geometry area. | ||
 |
||
 |
||
 |
||
