The
Extract capability
lets you generate separate elements from initial geometry, without
deleting geometry. This operation may be especially useful to solve drafting
difficulties, as illustrated below. |
 |
The angle value used for drafting the face
generates a twisted face. The
application then informs you via an error message window that the operation cannot be properly
performed. |
|
|
|
Closing the error message
window displays a new dialog box providing with a solution: you can deactivate the draft and
extract its geometry. |
|
After clicking Yes to confirm these

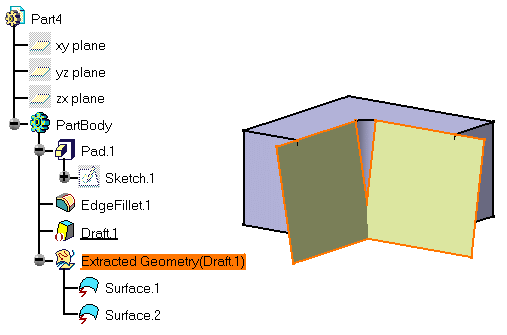

operations,Draft.1 appears as deactivated in the specification tree. A node
"Extracted Geometry (Draft.1)" is displayed in the tree too. This category
includes the elements created by the application, namely two surfaces. |
|
|
|
You then just have to fillet these surfaces (for
more information, refer to Generative Shape Design
User's Guide) and use Thick Surface,
Split and Add
capabilities available in Part Design workbench to complete the draft. |
|
|
|
|
