The Thread capability removes
material surrounding the hole. To define a thread, you can enter the
values of your choice, but you can use standard
values or personal values available in files too.
This task shows you how to create a
threaded hole using values previously defined in a file.
|
|
Open the Hole1.CATPart
document. |
|
1. |
Click the Hole icon . |
|
2. |
Select the face on which you wish to create the
hole. |
|
|
|
|
3. |

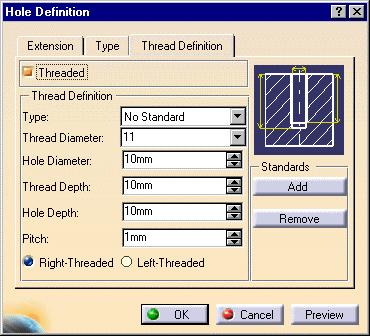

In the Hole Definition dialog box that
displays, define the
hole shape and enter the parameters of your choice. For more
information, refer to Hole. |
|
4. |
Click the Thread tab. |
|
5. |
Check Threaded to access the thread definition options. |
|
|
|
|
|
You can define three different
thread types:
|
|
|
| Metric Thin Pitch: AFNOR standard |
Refer to (NF E03-053-1970). This normative reference is linked to NF E03-051-1982)
The application uses the minimum standard values. |
|
|
Nominaldiam |
Pitch |
Minordiam |
M |
8.0 |
1.0 |
6.917 |
|
9.1 |
1.0 |
7.917 |
|
10.0 |
1.25 |
8.647 |
|
12. |
1.25 |
10.647 |
|
14.0 |
1.5 |
12.376 |
|
16.0 |
1.5 |
14.376 |
|
18.0 |
1.5 |
16.376 |
|
20.0 |
1.5 |
18.376 |
|
22.0 |
1.5 |
20.376 |
|
24.0 |
2.0 |
21.835 |
|
27.0 |
2.0 |
24.835 |
|
30.0 |
2.0 |
27.835 |
|
33.0 |
2.0 |
30.835 |
|
36.0 |
3.0 |
32.752 |
|
39.0 |
3.0 |
35.752 |
|
|
|
|
| Metric Thick Pitch: AFNOR standard |
Refer to (NF E03-053-1970). This normative reference is linked to NF E03-051-1982)
The application uses the minimum standard values. |
|
|
Nominaldiam
|
Pitch |
Minordiam |
M |
1 |
0.25 |
0.729 |
|
1.1 |
0.25 |
0.829 |
|
1.2 |
0.25 |
0.829 |
|
1.4 |
0.3 |
1.075 |
|
1.6 |
0.35 |
1.221 |
|
1.8 |
0.35 |
1.221 |
|
2.0 |
0.4 |
1.567 |
|
2.2 |
0.45 |
1.713 |
|
2.5 |
0.45 |
2.013 |
|
3.0 |
0.5 |
2.459 |
|
3.5 |
0.6 |
2.850 |
|
4.0 |
0.7 |
3.242 |
|
4.5 |
0.75 |
3.688 |
|
5.0 |
0.8 |
4.134 |
|
6.0 |
1.0 |
4.917 |
|
7.0 |
1.0 |
5.917 |
|
8.0 |
1.25 |
6.647 |
|
9.0 |
1.25 |
7.647 |
|
10.0 |
1.5 |
8.376 |
|
12.0 |
1.75 |
10.106 |
|
14.0 |
2.0 |
11.835 |
|
16.0 |
2.0 |
13.835 |
|
18.0 |
2.5 |
15.294 |
|
20.0 |
2.5 |
17.294 |
|
22.0 |
2.5 |
19.294 |
|
24.0 |
3.0 |
20.752 |
|
27.0 |
3.0 |
23.752 |
|
30.0 |
3.5 |
26.211 |
|
33.0 |
3.5 |
29.211 |
|
36.0 |
4.0 |
31.670 |
|
39.0 |
4.0 |
34.670 |
|
42.0 |
4.5 |
37.129 |
|
45.0 |
4.5 |
40.129 |
|
48.0 |
5.0 |
42.587 |
|
52.0 |
5.0 |
46.587 |
|
56.0 |
5.5 |
50.046 |
|
60.0 |
5.5 |
54.046 |
|
64.0 |
6.0 |
57.505 |
|
68.0 |
6.0 |
61.505 |
|
72.0 |
6.0 |
65.505 |
|
76.0 |
6.0 |
69.505 |
|
80.0 |
6.0 |
73.505 |
|
85.0 |
6.0 |
78.505 |
|
90.0 |
6.0 |
83.505 |
|
|
|
6. |
Keep the option No
Standard. |
|
7. |
As you wish to use values already
defined in an file, click Add to access this file. Otherwise, you could
directly enter values in the fields.
A dialog box displays, in which you can navigate to reach the file
containing your own values. This file may be of one of the following
types:
| Excel files (general format) |
| Lotus files |
| tabulated files (in Unix environment) |
|
|
8. |
Navigate to STANDARD1.txt
file and click Open to get the values it contains.
The Hole Definition dialog box reappears.
Your file was created as follows:
Nominal diameter |
Pitch |
Minor Diameter |
Key |
| the first row contains no numerical values |
| the other rows below are reserved for numerical values |
| the mandatory items are keys that define the names associated with
the values. |
Moreover, the name of the standard is the same as the name of the file
without the extension.
Remember these recommendations for creating your own personal
files. |
|
9. |
Set the Type option to STANDARD1. |
|
10. |
Define the nominal diameter: set
the Thread Diameter to a value. For example, set USR1.9.
You can note that the Hole diameter as well as the Pitch values are
then provided in the corresponding fields. The Pitch field defines the
distance between each crest. |
|
|
|
|
11. |
If necessary, edit the Hole Diameter value if you
need to modify the value you had previously set in the Extension tab.
This value must not exceed the thread diameter value. |
|
12. |
Repeat the operation for editing the thread
depth if necessary too. |
|
13. |
Check the Left-Threaded option. |
|
14. |
Click OK to confirm your operation and close
the Hole Definition dialog box. |
|
|
The application displays the hole in the
geometry area but not the thread. Note also that an icon specific to this feature is displayed in the specification
tree. |
|
|
|
A Few Words About Removing Files
|
|
|
The Remove button removes files containing
user-defined values. You cannot remove files containing standard values.
Clicking the Remove button displays the list of user-defined files. You
then just need to select or multi-select (using ctrl key) the files
and click OK to confirm the operation. |
|
|
|
|
|
Note also that you cannot remove a standard
file if it is used for a hole created in the CATPart document. |
|
