SpuCollisionTaskProcess Class Reference

SpuCollisionTaskProcess handles SPU processing of collision pairs. More...

#include <SpuCollisionTaskProcess.h>

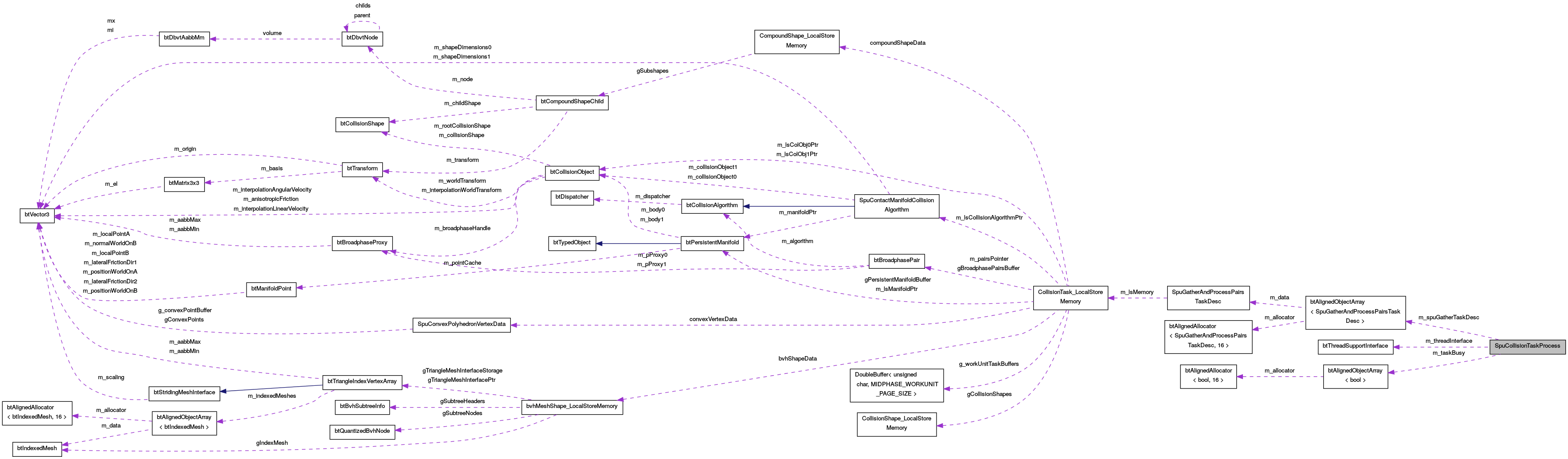

Collaboration diagram for SpuCollisionTaskProcess:

Public Member Functions
	SpuCollisionTaskProcess (btThreadSupportInterface *threadInterface, unsigned int maxNumOutstandingTasks)
	~SpuCollisionTaskProcess ()
void	initialize2 (bool useEpa=false)
	call initialize in the beginning of the frame, before addCollisionPairToTask More...
void	addWorkToTask (void *pairArrayPtr, int startIndex, int endIndex)
	batch up additional work to a current task for SPU processing. When batch is full, it issues the task. More...
void	flush2 ()
	call flush to submit potential outstanding work to SPUs and wait for all involved SPUs to be finished More...
void	setNumTasks (int maxNumTasks)
	set the maximum number of SPU tasks allocated More...
int	getNumTasks () const

Private Member Functions
void	issueTask2 ()

Private Attributes
unsigned char *	m_workUnitTaskBuffers
btAlignedObjectArray< bool >	m_taskBusy
btAlignedObjectArray < SpuGatherAndProcessPairsTaskDesc >	m_spuGatherTaskDesc
class btThreadSupportInterface *	m_threadInterface
unsigned int	m_maxNumOutstandingTasks
unsigned int	m_numBusyTasks
unsigned int	m_currentTask
unsigned int	m_currentPage
unsigned int	m_currentPageEntry
bool	m_useEpa
bool	m_initialized

Detailed Description

SpuCollisionTaskProcess handles SPU processing of collision pairs.

Maintains a set of task buffers. When the task is full, the task is issued for SPUs to process. Contact output goes into btPersistentManifold associated with each task. When PPU issues a task, it will look for completed task buffers PPU will do postprocessing, dependent on workunit output (not likely)

Definition at line 93 of file SpuCollisionTaskProcess.h.

Constructor & Destructor Documentation

SpuCollisionTaskProcess::SpuCollisionTaskProcess	(	btThreadSupportInterface *	threadInterface,
		unsigned int	maxNumOutstandingTasks
	)

Definition at line 53 of file SpuCollisionTaskProcess.cpp.

SpuCollisionTaskProcess::~SpuCollisionTaskProcess

(

)

Definition at line 75 of file SpuCollisionTaskProcess.cpp.

Member Function Documentation

void SpuCollisionTaskProcess::addWorkToTask	(	void *	pairArrayPtr,
		int	startIndex,
		int	endIndex
	)

batch up additional work to a current task for SPU processing. When batch is full, it issues the task.

Definition at line 182 of file SpuCollisionTaskProcess.cpp.

void SpuCollisionTaskProcess::flush2

(

)

call flush to submit potential outstanding work to SPUs and wait for all involved SPUs to be finished

Definition at line 269 of file SpuCollisionTaskProcess.cpp.

int SpuCollisionTaskProcess::getNumTasks ( ) const

inline

Definition at line 139 of file SpuCollisionTaskProcess.h.

void SpuCollisionTaskProcess::initialize2

(

bool

useEpa = false

)

call initialize in the beginning of the frame, before addCollisionPairToTask

Definition at line 92 of file SpuCollisionTaskProcess.cpp.

void SpuCollisionTaskProcess::issueTask2 ( )

private

Definition at line 116 of file SpuCollisionTaskProcess.cpp.

void SpuCollisionTaskProcess::setNumTasks

(

int

maxNumTasks

)

set the maximum number of SPU tasks allocated

re-allocate task memory buffers

Definition at line 27 of file SpuCollisionTaskProcess.cpp.

Member Data Documentation

unsigned int SpuCollisionTaskProcess::m_currentPage

private

Definition at line 111 of file SpuCollisionTaskProcess.h.

unsigned int SpuCollisionTaskProcess::m_currentPageEntry

private

Definition at line 112 of file SpuCollisionTaskProcess.h.

unsigned int SpuCollisionTaskProcess::m_currentTask

private

Definition at line 110 of file SpuCollisionTaskProcess.h.

bool SpuCollisionTaskProcess::m_initialized

private

Definition at line 117 of file SpuCollisionTaskProcess.h.

unsigned int SpuCollisionTaskProcess::m_maxNumOutstandingTasks

private

Definition at line 105 of file SpuCollisionTaskProcess.h.

unsigned int SpuCollisionTaskProcess::m_numBusyTasks

private

Definition at line 107 of file SpuCollisionTaskProcess.h.

btAlignedObjectArray<SpuGatherAndProcessPairsTaskDesc> SpuCollisionTaskProcess::m_spuGatherTaskDesc

private

Definition at line 101 of file SpuCollisionTaskProcess.h.

btAlignedObjectArray<bool> SpuCollisionTaskProcess::m_taskBusy

private

Definition at line 100 of file SpuCollisionTaskProcess.h.

class btThreadSupportInterface* SpuCollisionTaskProcess::m_threadInterface

private

Definition at line 103 of file SpuCollisionTaskProcess.h.

bool SpuCollisionTaskProcess::m_useEpa

private

Definition at line 114 of file SpuCollisionTaskProcess.h.

unsigned char* SpuCollisionTaskProcess::m_workUnitTaskBuffers

private

Definition at line 96 of file SpuCollisionTaskProcess.h.

---

The documentation for this class was generated from the following files:

• SpuCollisionTaskProcess.h
• SpuCollisionTaskProcess.cpp
