#include <btSoftBodySolverLinkData_OpenCL.h>

Inheritance diagram for btSoftBodyLinkDataOpenCL:

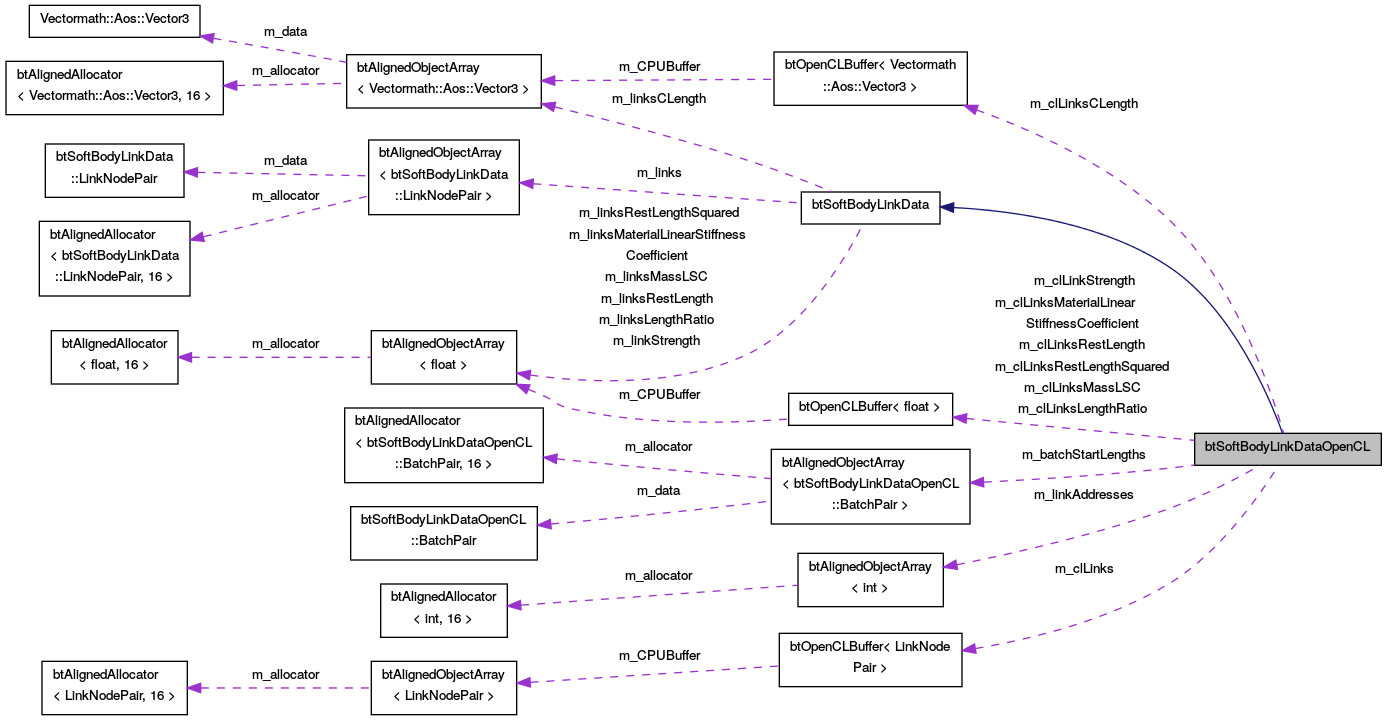

Collaboration diagram for btSoftBodyLinkDataOpenCL:

Classes
struct	BatchPair

Public Member Functions
	btSoftBodyLinkDataOpenCL (cl_command_queue queue, cl_context ctx)

virtual	~btSoftBodyLinkDataOpenCL ()

virtual void	createLinks (int numLinks)
	Allocate enough space in all link-related arrays to fit numLinks links. More...

virtual void	setLinkAt (const LinkDescription &link, int linkIndex)
	Insert the link described into the correct data structures assuming space has already been allocated by a call to createLinks. More...

virtual bool	onAccelerator ()
	Return true if data is on the accelerator. More...

virtual bool	moveToAccelerator ()
	Move data from host memory to the accelerator. More...

virtual bool	moveFromAccelerator ()
	Move data from host memory from the accelerator. More...

void	generateBatches ()
	Generate (and later update) the batching for the entire link set. More...

Public Member Functions inherited from btSoftBodyLinkData
	btSoftBodyLinkData ()

virtual	~btSoftBodyLinkData ()

virtual void	clear ()

int	getNumLinks ()

LinkNodePair &	getVertexPair (int linkIndex)
	Return reference to the vertex index pair for link linkIndex as stored on the host. More...

float &	getStrength (int linkIndex)
	Return reference to strength of link linkIndex as stored on the host. More...

virtual float &	getStrengthCorrected (int linkIndex)
	Return a reference to the strength of the link corrected for link sorting. More...

float &	getRestLength (int linkIndex)
	Return reference to the rest length of link linkIndex as stored on the host. More...

float &	getLinearStiffnessCoefficient (int linkIndex)
	Return reference to linear stiffness coefficient for link linkIndex as stored on the host. More...

float &	getMassLSC (int linkIndex)
	Return reference to the MassLSC value for link linkIndex as stored on the host. More...

float &	getRestLengthSquared (int linkIndex)
	Return reference to rest length squared for link linkIndex as stored on the host. More...

Vectormath::Aos::Vector3 &	getCurrentLength (int linkIndex)
	Return reference to current length of link linkIndex as stored on the host. More...

float &	getLinkLengthRatio (int linkIndex)
	Return the link length ratio from for link linkIndex as stored on the host. More...

Public Attributes
bool	m_onGPU

cl_command_queue	m_cqCommandQue

btOpenCLBuffer< LinkNodePair >	m_clLinks

btOpenCLBuffer< float >	m_clLinkStrength

btOpenCLBuffer< float >	m_clLinksMassLSC

btOpenCLBuffer< float >	m_clLinksRestLengthSquared

btOpenCLBuffer < Vectormath::Aos::Vector3 >	m_clLinksCLength

btOpenCLBuffer< float >	m_clLinksLengthRatio

btOpenCLBuffer< float >	m_clLinksRestLength

btOpenCLBuffer< float >	m_clLinksMaterialLinearStiffnessCoefficient

btAlignedObjectArray< int >	m_linkAddresses
	Link addressing information for each cloth. More...

btAlignedObjectArray< BatchPair >	m_batchStartLengths
	Start and length values for computation batches over link data. More...

Additional Inherited Members
Protected Attributes inherited from btSoftBodyLinkData
btAlignedObjectArray < LinkNodePair >	m_links

btAlignedObjectArray< float >	m_linkStrength

btAlignedObjectArray< float >	m_linksMassLSC

btAlignedObjectArray< float >	m_linksRestLengthSquared

btAlignedObjectArray < Vectormath::Aos::Vector3 >	m_linksCLength

btAlignedObjectArray< float >	m_linksLengthRatio

btAlignedObjectArray< float >	m_linksRestLength

btAlignedObjectArray< float >	m_linksMaterialLinearStiffnessCoefficient

Detailed Description

Definition at line 24 of file btSoftBodySolverLinkData_OpenCL.h.

Constructor & Destructor Documentation

btSoftBodyLinkDataOpenCL::btSoftBodyLinkDataOpenCL	(	cl_command_queue	queue,
		cl_context	ctx
	)

Definition at line 164 of file btSoftBodySolver_OpenCL.cpp.

btSoftBodyLinkDataOpenCL::~btSoftBodyLinkDataOpenCL ( )

virtual

Definition at line 177 of file btSoftBodySolver_OpenCL.cpp.

Member Function Documentation

void btSoftBodyLinkDataOpenCL::createLinks ( int numLinks )

virtual

Allocate enough space in all link-related arrays to fit numLinks links.

Reimplemented from btSoftBodyLinkData.

Definition at line 188 of file btSoftBodySolver_OpenCL.cpp.

void btSoftBodyLinkDataOpenCL::generateBatches ( )

Generate (and later update) the batching for the entire link set.

This redoes a lot of work because it batches the entire set when each cloth is inserted. In theory we could delay it until just before we need the cloth. It's a one-off overhead, though, so that is a later optimisation.

Definition at line 259 of file btSoftBodySolver_OpenCL.cpp.

bool btSoftBodyLinkDataOpenCL::moveFromAccelerator ( )

virtual

Move data from host memory from the accelerator.

The CPU version will always return that it has moved it.

Reimplemented from btSoftBodyLinkData.

Definition at line 234 of file btSoftBodySolver_OpenCL.cpp.

bool btSoftBodyLinkDataOpenCL::moveToAccelerator ( )

virtual

Move data from host memory to the accelerator.

The CPU version will always return that it has moved it.

Reimplemented from btSoftBodyLinkData.
