#include <btSoftBodySolverTriangleData_OpenCL.h>

Inheritance diagram for btSoftBodyTriangleDataOpenCL:

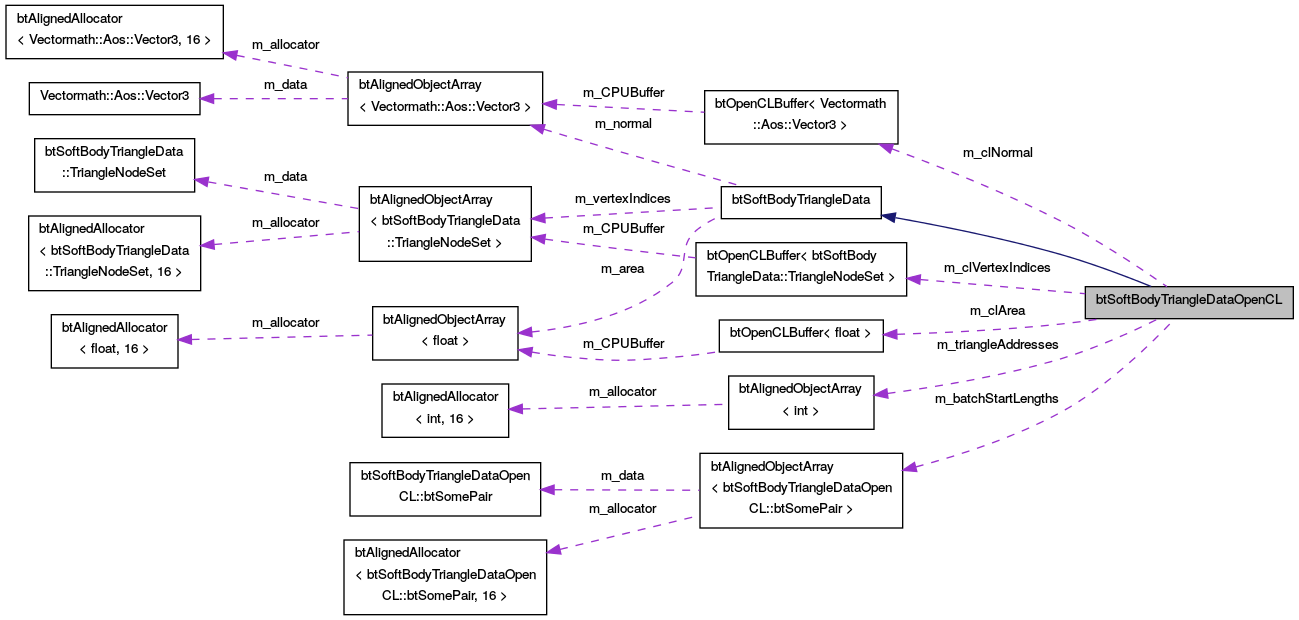

Collaboration diagram for btSoftBodyTriangleDataOpenCL:

Classes
struct	btSomePair
	Start and length values for computation batches over link data. More...

Public Member Functions
	btSoftBodyTriangleDataOpenCL (cl_command_queue queue, cl_context ctx)

virtual	~btSoftBodyTriangleDataOpenCL ()

virtual void	createTriangles (int numTriangles)
	Allocate enough space in all link-related arrays to fit numLinks links. More...

virtual void	setTriangleAt (const btSoftBodyTriangleData::TriangleDescription &triangle, int triangleIndex)
	Insert the link described into the correct data structures assuming space has already been allocated by a call to createLinks. More...

virtual bool	onAccelerator ()
	Return true if data is on the accelerator. More...

virtual bool	moveToAccelerator ()
	Move data from host memory to the accelerator. More...

virtual bool	moveFromAccelerator ()
	Move data from host memory from the accelerator. More...

void	generateBatches ()
	Generate (and later update) the batching for the entire triangle set. More...

Public Member Functions inherited from btSoftBodyTriangleData
	btSoftBodyTriangleData ()

virtual	~btSoftBodyTriangleData ()

virtual void	clear ()

int	getNumTriangles ()

const TriangleNodeSet &	getVertexSet (int triangleIndex)
	Return the vertex index set for triangle triangleIndex as stored on the host. More...

float &	getTriangleArea (int triangleIndex)
	Get access to the triangle area. More...

Vectormath::Aos::Vector3 &	getNormal (int triangleIndex)
	Get access to the normal vector for this triangle. More...

Public Attributes
bool	m_onGPU

cl_command_queue	m_queue

btOpenCLBuffer < btSoftBodyTriangleData::TriangleNodeSet >	m_clVertexIndices

btOpenCLBuffer< float >	m_clArea

btOpenCLBuffer < Vectormath::Aos::Vector3 >	m_clNormal

btAlignedObjectArray< int >	m_triangleAddresses
	Link addressing information for each cloth. More...

btAlignedObjectArray< btSomePair >	m_batchStartLengths

Additional Inherited Members
Protected Attributes inherited from btSoftBodyTriangleData
btAlignedObjectArray < TriangleNodeSet >	m_vertexIndices

btAlignedObjectArray< float >	m_area

btAlignedObjectArray < Vectormath::Aos::Vector3 >	m_normal

Detailed Description

Definition at line 25 of file btSoftBodySolverTriangleData_OpenCL.h.

Constructor & Destructor Documentation

btSoftBodyTriangleDataOpenCL::btSoftBodyTriangleDataOpenCL	(	cl_command_queue	queue,
		cl_context	ctx
	)

Definition at line 392 of file btSoftBodySolver_OpenCL.cpp.

btSoftBodyTriangleDataOpenCL::~btSoftBodyTriangleDataOpenCL ( )

virtual

Definition at line 400 of file btSoftBodySolver_OpenCL.cpp.

Member Function Documentation

void btSoftBodyTriangleDataOpenCL::createTriangles ( int numTriangles )

virtual

Allocate enough space in all link-related arrays to fit numLinks links.

Reimplemented from btSoftBodyTriangleData.

Definition at line 405 of file btSoftBodySolver_OpenCL.cpp.

void btSoftBodyTriangleDataOpenCL::generateBatches ( )

Generate (and later update) the batching for the entire triangle set.

This redoes a lot of work because it batches the entire set when each cloth is inserted. In theory we could delay it until just before we need the cloth. It's a one-off overhead, though, so that is a later optimisation.

Definition at line 461 of file btSoftBodySolver_OpenCL.cpp.

bool btSoftBodyTriangleDataOpenCL::moveFromAccelerator ( )

virtual

Move data from host memory from the accelerator.

The CPU version will always return that it has moved it.

Reimplemented from btSoftBodyTriangleData.

Definition at line 442 of file btSoftBodySolver_OpenCL.cpp.

bool btSoftBodyTriangleDataOpenCL::moveToAccelerator ( )

virtual

Move data from host memory to the accelerator.

The CPU version will always return that it has moved it.

Reimplemented from btSoftBodyTriangleData.
