btVertexBufferDescriptor Class Reference

#include <btSoftBodySolverVertexBuffer.h>

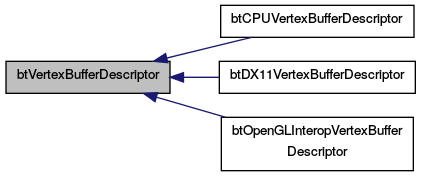

Inheritance diagram for btVertexBufferDescriptor:

Public Types
enum	BufferTypes {   CPU_BUFFER,   DX11_BUFFER,   OPENGL_BUFFER }

Public Member Functions
	btVertexBufferDescriptor ()
virtual	~btVertexBufferDescriptor ()
virtual bool	hasVertexPositions () const
virtual bool	hasNormals () const
virtual BufferTypes	getBufferType () const =0
	Return the type of the vertex buffer descriptor. More...
virtual int	getVertexOffset () const
	Return the vertex offset in floats from the base pointer. More...
virtual int	getVertexStride () const
	Return the vertex stride in number of floats between vertices. More...
virtual int	getNormalOffset () const
	Return the vertex offset in floats from the base pointer. More...
virtual int	getNormalStride () const
	Return the vertex stride in number of floats between vertices. More...

Protected Attributes
bool	m_hasVertexPositions
bool	m_hasNormals
int	m_vertexOffset
int	m_vertexStride
int	m_normalOffset
int	m_normalStride

Detailed Description

Definition at line 20 of file btSoftBodySolverVertexBuffer.h.

Member Enumeration Documentation

enum btVertexBufferDescriptor::BufferTypes

Enumerator
CPU_BUFFER
DX11_BUFFER
OPENGL_BUFFER

Definition at line 23 of file btSoftBodySolverVertexBuffer.h.

Constructor & Destructor Documentation

btVertexBufferDescriptor::btVertexBufferDescriptor ( )

inline

Definition at line 42 of file btSoftBodySolverVertexBuffer.h.

virtual btVertexBufferDescriptor::~btVertexBufferDescriptor ( )

inlinevirtual

Definition at line 52 of file btSoftBodySolverVertexBuffer.h.

Member Function Documentation

virtual BufferTypes btVertexBufferDescriptor::getBufferType ( ) const

pure virtual

Return the type of the vertex buffer descriptor.

Implemented in btCPUVertexBufferDescriptor, btOpenGLInteropVertexBufferDescriptor, and btDX11VertexBufferDescriptor.

virtual int btVertexBufferDescriptor::getNormalOffset ( ) const

inlinevirtual

Return the vertex offset in floats from the base pointer.

Definition at line 91 of file btSoftBodySolverVertexBuffer.h.

virtual int btVertexBufferDescriptor::getNormalStride ( ) const

inlinevirtual

Return the vertex stride in number of floats between vertices.

Definition at line 99 of file btSoftBodySolverVertexBuffer.h.

virtual int btVertexBufferDescriptor::getVertexOffset ( ) const

inlinevirtual

Return the vertex offset in floats from the base pointer.

Definition at line 75 of file btSoftBodySolverVertexBuffer.h.

virtual int btVertexBufferDescriptor::getVertexStride ( ) const

inlinevirtual

Return the vertex stride in number of floats between vertices.

Definition at line 83 of file btSoftBodySolverVertexBuffer.h.

virtual bool btVertexBufferDescriptor::hasNormals ( ) const

inlinevirtual

Definition at line 62 of file btSoftBodySolverVertexBuffer.h.

virtual bool btVertexBufferDescriptor::hasVertexPositions ( ) const

inlinevirtual

Definition at line 57 of file btSoftBodySolverVertexBuffer.h.

Member Data Documentation

bool btVertexBufferDescriptor::m_hasNormals

protected

Definition at line 33 of file btSoftBodySolverVertexBuffer.h.

bool btVertexBufferDescriptor::m_hasVertexPositions

protected

Definition at line 32 of file btSoftBodySolverVertexBuffer.h.

int btVertexBufferDescriptor::m_normalOffset

protected

Definition at line 38 of file btSoftBodySolverVertexBuffer.h.

int btVertexBufferDescriptor::m_normalStride

protected

Definition at line 39 of file btSoftBodySolverVertexBuffer.h.

int btVertexBufferDescriptor::m_vertexOffset

protected

Definition at line 35 of file btSoftBodySolverVertexBuffer.h.

int btVertexBufferDescriptor::m_vertexStride

protected

Definition at line 36 of file btSoftBodySolverVertexBuffer.h.

---

The documentation for this class was generated from the following file:

• btSoftBodySolverVertexBuffer.h
