Ball Joins are
spherical join
restraints applied to handle points of virtual parts,
which result in constraining the point to rotate around a coinciding
fixed point. They can be
viewed as particular cases of general spherical joins,
which allow a relative rotation between two points (in the Ball Join case, one of the two points is fixed).
means
that there is no translation degree of freedom left in that direction.
Ball Join objects belong to Restraints objects sets.

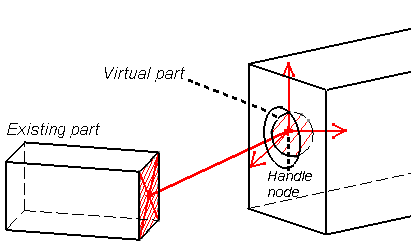

For the fixed point, the program automatically picks the handle of the
virtual part. The virtual part as a whole is then allowed to rotate around
this point.
Make sure you fixed all the
global degrees of freedom of your assembly, otherwise a global singularity
will be detected at the time of the Static Computation (such a model is
unsolvable). To allow you to easily correct the model (Static Analysis
Cases only), the singular displacement of the assembly will be simulated
and visualized after computation.
When connected to deformable bodies, the virtual part will
transmit the effect of the Ball Join restraint collectively to the entire
connected geometry.
|
|
Ball Joins can be applied to the following types of Supports:
|
|
This task shows how to create a
Ball Join on a virtual part.
|
|
You can use the sample15.CATAnalysis
document from the samples directory for this task: a Finite Element Model containing a
Static or Frequency Analysis Case and created a Virtual
part. Before You Begin:
Go to View -> Render Style -> Customize View and make
sure the Shading, Outlines and Materials options are active in the Custom View Modes
dialog box. |
|
1. Click the Ball Join icon .
The Ball Join dialog box is displayed.
2. You can change the identifier of the
Ball Join by editing the Name field, if needed.
3. Select the virtual part.
The Ball Join dialog box is updated.
A symbol representing the Ball Join is displayed on the virtual
part.
4. Click OK in the Ball Join dialog box to create the Ball
Join.
A Ball Join object appears in the specification tree under the active
Restraints objects set.
|
|
|
|
Make sure the computation is finished before
starting any of the following operations. |
|
Products
Available in
Analysis Workbench
The ELFINI Structural Analysis product offers the
following additional features with a right mouse click (key 3):
|
on a Ball
Join object:
| Restraint visualization on mesh: the translation of your Ball Join
object specifications into solver specifications can be visualized
symbolically at the impacted mesh nodes, provided the mesh has been
previously generated via a Compute action. |
|
|
|
