The btOptimizedBvh extends the btQuantizedBvh to create AABB tree for triangle meshes, through the btStridingMeshInterface. More...
#include <btOptimizedBvh.h>
Inheritance diagram for btOptimizedBvh:

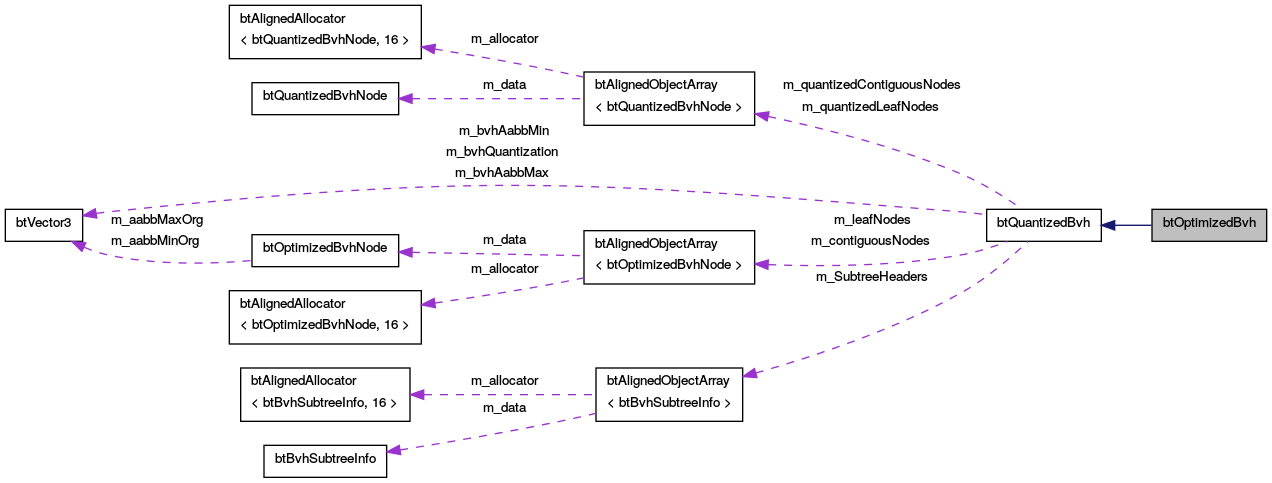

Collaboration diagram for btOptimizedBvh:
Public Member Functions | |
| BT_DECLARE_ALIGNED_ALLOCATOR () | |
| btOptimizedBvh () | |
| virtual | ~btOptimizedBvh () |
| void | build (btStridingMeshInterface *triangles, bool useQuantizedAabbCompression, const btVector3 &bvhAabbMin, const btVector3 &bvhAabbMax) |
| void | refit (btStridingMeshInterface *triangles, const btVector3 &aabbMin, const btVector3 &aabbMax) |
| void | refitPartial (btStridingMeshInterface *triangles, const btVector3 &aabbMin, const btVector3 &aabbMax) |
| void | updateBvhNodes (btStridingMeshInterface *meshInterface, int firstNode, int endNode, int index) |
| virtual bool | serializeInPlace (void *o_alignedDataBuffer, unsigned i_dataBufferSize, bool i_swapEndian) const |
| Data buffer MUST be 16 byte aligned. More... | |
 Public Member Functions inherited from btQuantizedBvh | |
| BT_DECLARE_ALIGNED_ALLOCATOR () | |
| btQuantizedBvh () | |
| virtual | ~btQuantizedBvh () |
| void | setQuantizationValues (const btVector3 &bvhAabbMin, const btVector3 &bvhAabbMax, btScalar quantizationMargin=btScalar(1.0)) |
| ***************************************** expert/internal use only ************************* More... | |
| QuantizedNodeArray & | getLeafNodeArray () |
| void | buildInternal () |
| buildInternal is expert use only: assumes that setQuantizationValues and LeafNodeArray are initialized More... | |
| void | reportAabbOverlappingNodex (btNodeOverlapCallback *nodeCallback, const btVector3 &aabbMin, const btVector3 &aabbMax) const |
| ***************************************** expert/internal use only ************************* More... | |
| void | reportRayOverlappingNodex (btNodeOverlapCallback *nodeCallback, const btVector3 &raySource, const btVector3 &rayTarget) const |
| void | reportBoxCastOverlappingNodex (btNodeOverlapCallback *nodeCallback, const btVector3 &raySource, const btVector3 &rayTarget, const btVector3 &aabbMin, const btVector3 &aabbMax) const |
| void | quantize (unsigned short *out, const btVector3 &point, int isMax) const |
| void | quantizeWithClamp (unsigned short *out, const btVector3 &point2, int isMax) const |
| btVector3 | unQuantize (const unsigned short *vecIn) const |
| void | setTraversalMode (btTraversalMode traversalMode) |
| setTraversalMode let's you choose between stackless, recursive or stackless cache friendly tree traversal. Note this is only implemented for quantized trees. More... | |
| QuantizedNodeArray & | getQuantizedNodeArray () |
| BvhSubtreeInfoArray & | getSubtreeInfoArray () |
| unsigned | calculateSerializeBufferSize () const |
| virtual bool | serialize (void *o_alignedDataBuffer, unsigned i_dataBufferSize, bool i_swapEndian) const |
| Data buffer MUST be 16 byte aligned. More... | |
| virtual int | calculateSerializeBufferSizeNew () const |
| virtual const char * | serialize (void *dataBuffer, btSerializer *serializer) const |
| fills the dataBuffer and returns the struct name (and 0 on failure) More... | |
| virtual void | deSerializeFloat (struct btQuantizedBvhFloatData &quantizedBvhFloatData) |
| virtual void | deSerializeDouble (struct btQuantizedBvhDoubleData &quantizedBvhDoubleData) |
| bool | isQuantized () |
Static Public Member Functions | |
| static btOptimizedBvh * | deSerializeInPlace (void *i_alignedDataBuffer, unsigned int i_dataBufferSize, bool i_swapEndian) |
| deSerializeInPlace loads and initializes a BVH from a buffer in memory 'in place' More... | |
| Static Public Member Functions inherited from btQuantizedBvh | |
| static btQuantizedBvh * | deSerializeInPlace (void *i_alignedDataBuffer, unsigned int i_dataBufferSize, bool i_swapEndian) |
| deSerializeInPlace loads and initializes a BVH from a buffer in memory 'in place' More... | |
| static unsigned int | getAlignmentSerializationPadding () |
Additional Inherited Members | |
| Public Types inherited from btQuantizedBvh | |
| enum | btTraversalMode { TRAVERSAL_STACKLESS = 0, TRAVERSAL_STACKLESS_CACHE_FRIENDLY, TRAVERSAL_RECURSIVE } |
| Protected Member Functions inherited from btQuantizedBvh | |
| void | setInternalNodeAabbMin (int nodeIndex, const btVector3 &aabbMin) |
| two versions, one for quantized and normal nodes. More... | |
| void | setInternalNodeAabbMax (int nodeIndex, const btVector3 &aabbMax) |
| btVector3 | getAabbMin (int nodeIndex) const |
| btVector3 | getAabbMax (int nodeIndex) const |
| void | setInternalNodeEscapeIndex (int nodeIndex, int escapeIndex) |
| void | mergeInternalNodeAabb (int nodeIndex, const btVector3 &newAabbMin, const btVector3 &newAabbMax) |
| void | swapLeafNodes (int firstIndex, int secondIndex) |
| void | assignInternalNodeFromLeafNode (int internalNode, int leafNodeIndex) |
| void | buildTree (int startIndex, int endIndex) |
| int | calcSplittingAxis (int startIndex, int endIndex) |
| int | sortAndCalcSplittingIndex (int startIndex, int endIndex, int splitAxis) |
| void | walkStacklessTree (btNodeOverlapCallback *nodeCallback, const btVector3 &aabbMin, const btVector3 &aabbMax) const |
| void | walkStacklessQuantizedTreeAgainstRay (btNodeOverlapCallback *nodeCallback, const btVector3 &raySource, const btVector3 &rayTarget, const btVector3 &aabbMin, const btVector3 &aabbMax, int startNodeIndex, int endNodeIndex) const |
| void | walkStacklessQuantizedTree (btNodeOverlapCallback *nodeCallback, unsigned short int *quantizedQueryAabbMin, unsigned short int *quantizedQueryAabbMax, int startNodeIndex, int endNodeIndex) const |
| void | walkStacklessTreeAgainstRay (btNodeOverlapCallback *nodeCallback, const btVector3 &raySource, const btVector3 &rayTarget, const btVector3 &aabbMin, const btVector3 &aabbMax, int startNodeIndex, int endNodeIndex) const |
| void | walkStacklessQuantizedTreeCacheFriendly (btNodeOverlapCallback *nodeCallback, unsigned short int *quantizedQueryAabbMin, unsigned short int *quantizedQueryAabbMax) const |
| tree traversal designed for small-memory processors like PS3 SPU More... | |
| void | walkRecursiveQuantizedTreeAgainstQueryAabb (const btQuantizedBvhNode *currentNode, btNodeOverlapCallback *nodeCallback, unsigned short int *quantizedQueryAabbMin, unsigned short int *quantizedQueryAabbMax) const |
| use the 16-byte stackless 'skipindex' node tree to do a recursive traversal More... | |
| void | walkRecursiveQuantizedTreeAgainstQuantizedTree (const btQuantizedBvhNode *treeNodeA, const btQuantizedBvhNode *treeNodeB, btNodeOverlapCallback *nodeCallback) const |
| use the 16-byte stackless 'skipindex' node tree to do a recursive traversal More... | |
| void | updateSubtreeHeaders (int leftChildNodexIndex, int rightChildNodexIndex) |
| Protected Attributes inherited from btQuantizedBvh | |
| btVector3 | m_bvhAabbMin |
| btVector3 | m_bvhAabbMax |
| btVector3 | m_bvhQuantization |
| int | m_bulletVersion |
| int | m_curNodeIndex |
| bool | m_useQuantization |
| NodeArray | m_leafNodes |
| NodeArray | m_contiguousNodes |
| QuantizedNodeArray | m_quantizedLeafNodes |
| QuantizedNodeArray | m_quantizedContiguousNodes |
| btTraversalMode | m_traversalMode |
| BvhSubtreeInfoArray | m_SubtreeHeaders |
| int | m_subtreeHeaderCount |
Detailed Description
The btOptimizedBvh extends the btQuantizedBvh to create AABB tree for triangle meshes, through the btStridingMeshInterface.
Definition at line 27 of file btOptimizedBvh.h.
Constructor & Destructor Documentation
| btOptimizedBvh::btOptimizedBvh | ( | ) |
Definition at line 23 of file btOptimizedBvh.cpp.
|
virtual |
Definition at line 27 of file btOptimizedBvh.cpp.
Member Function Documentation
| btOptimizedBvh::BT_DECLARE_ALIGNED_ALLOCATOR | ( | ) |
| void btOptimizedBvh::build | ( | btStridingMeshInterface * | triangles, |
| bool | useQuantizedAabbCompression, | ||
| const btVector3 & | bvhAabbMin, | ||
| const btVector3 & | bvhAabbMax | ||
| ) |
if the entire tree is small then subtree size, we need to create a header info for the tree
Definition at line 32 of file btOptimizedBvh.cpp.
|
static |
deSerializeInPlace loads and initializes a BVH from a buffer in memory 'in place'
Definition at line 385 of file btOptimizedBvh.cpp.
| void btOptimizedBvh::refit | ( | btStridingMeshInterface * | triangles, |
| const btVector3 & | aabbMin, | ||
| const btVector3 & | aabbMax | ||
| ) |
now update all subtree headers
Definition at line 206 of file btOptimizedBvh.cpp.
| void btOptimizedBvh::refitPartial | ( | btStridingMeshInterface * | triangles, |
| const btVector3 & | aabbMin, | ||
| const btVector3 & | aabbMax | ||
| ) |
we should update all quantization values, using updateBvhNodes(meshInterface); but we only update chunks that overlap the given aabb
Definition at line 233 of file btOptimizedBvh.cpp.
|
inlinevirtual |
Data buffer MUST be 16 byte aligned.
Definition at line 50 of file btOptimizedBvh.h.
| void btOptimizedBvh::updateBvhNodes | ( | btStridingMeshInterface * | meshInterface, |
| int | firstNode, | ||
| int | endNode, | ||
| int | index | ||
| ) |
Definition at line 272 of file btOptimizedBvh.cpp.
The documentation for this class was generated from the following files:
