btDefaultCollisionConfiguration Class Reference

btCollisionConfiguration allows to configure Bullet collision detection stack allocator, pool memory allocators More...

#include <btDefaultCollisionConfiguration.h>

Inheritance diagram for btDefaultCollisionConfiguration:

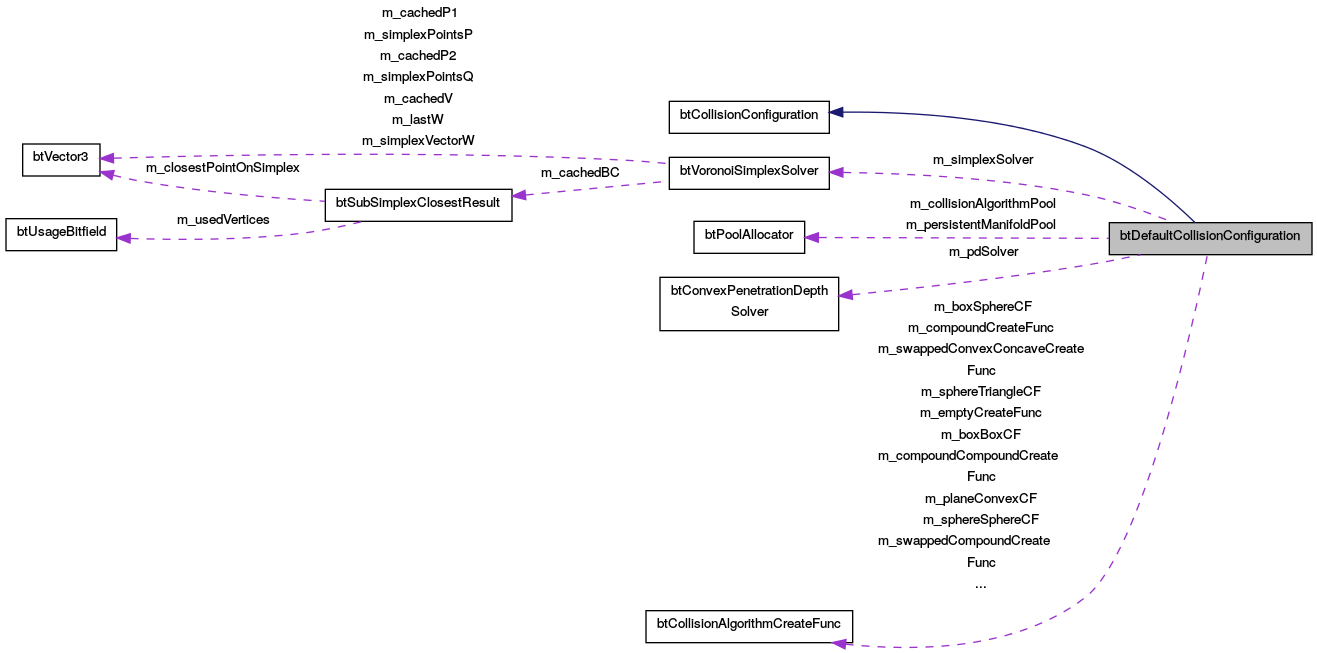

Collaboration diagram for btDefaultCollisionConfiguration:

Public Member Functions
	btDefaultCollisionConfiguration (const btDefaultCollisionConstructionInfo &constructionInfo=btDefaultCollisionConstructionInfo())
virtual	~btDefaultCollisionConfiguration ()
virtual btPoolAllocator *	getPersistentManifoldPool ()
	memory pools More...
virtual btPoolAllocator *	getCollisionAlgorithmPool ()
virtual btVoronoiSimplexSolver *	getSimplexSolver ()
virtual btCollisionAlgorithmCreateFunc *	getCollisionAlgorithmCreateFunc (int proxyType0, int proxyType1)
void	setConvexConvexMultipointIterations (int numPerturbationIterations=3, int minimumPointsPerturbationThreshold=3)
	Use this method to allow to generate multiple contact points between at once, between two objects using the generic convex-convex algorithm. More...
void	setPlaneConvexMultipointIterations (int numPerturbationIterations=3, int minimumPointsPerturbationThreshold=3)
Public Member Functions inherited from btCollisionConfiguration
virtual	~btCollisionConfiguration ()

Protected Attributes
int	m_persistentManifoldPoolSize
btPoolAllocator *	m_persistentManifoldPool
bool	m_ownsPersistentManifoldPool
btPoolAllocator *	m_collisionAlgorithmPool
bool	m_ownsCollisionAlgorithmPool
btVoronoiSimplexSolver *	m_simplexSolver
btConvexPenetrationDepthSolver *	m_pdSolver
btCollisionAlgorithmCreateFunc *	m_convexConvexCreateFunc
btCollisionAlgorithmCreateFunc *	m_convexConcaveCreateFunc
btCollisionAlgorithmCreateFunc *	m_swappedConvexConcaveCreateFunc
btCollisionAlgorithmCreateFunc *	m_compoundCreateFunc
btCollisionAlgorithmCreateFunc *	m_compoundCompoundCreateFunc
btCollisionAlgorithmCreateFunc *	m_swappedCompoundCreateFunc
btCollisionAlgorithmCreateFunc *	m_emptyCreateFunc
btCollisionAlgorithmCreateFunc *	m_sphereSphereCF
btCollisionAlgorithmCreateFunc *	m_sphereBoxCF
btCollisionAlgorithmCreateFunc *	m_boxSphereCF
btCollisionAlgorithmCreateFunc *	m_boxBoxCF
btCollisionAlgorithmCreateFunc *	m_sphereTriangleCF
btCollisionAlgorithmCreateFunc *	m_triangleSphereCF
btCollisionAlgorithmCreateFunc *	m_planeConvexCF
btCollisionAlgorithmCreateFunc *	m_convexPlaneCF

Detailed Description

btCollisionConfiguration allows to configure Bullet collision detection stack allocator, pool memory allocators

Definition at line 48 of file btDefaultCollisionConfiguration.h.

Constructor & Destructor Documentation

btDefaultCollisionConfiguration::btDefaultCollisionConfiguration

(

const btDefaultCollisionConstructionInfo &

constructionInfo = btDefaultCollisionConstructionInfo()

)

calculate maximum element size, big enough to fit any collision algorithm in the memory pool

Definition at line 43 of file btDefaultCollisionConfiguration.cpp.

btDefaultCollisionConfiguration::~btDefaultCollisionConfiguration ( )

virtual

Definition at line 140 of file btDefaultCollisionConfiguration.cpp.

Member Function Documentation

btCollisionAlgorithmCreateFunc * btDefaultCollisionConfiguration::getCollisionAlgorithmCreateFunc ( int  proxyType0, int  proxyType1  )

virtual

Implements btCollisionConfiguration.

Reimplemented in btSoftBodyRigidBodyCollisionConfiguration.

Definition at line 206 of file btDefaultCollisionConfiguration.cpp.

virtual btPoolAllocator* btDefaultCollisionConfiguration::getCollisionAlgorithmPool ( )

inlinevirtual

Implements btCollisionConfiguration.

Definition at line 99 of file btDefaultCollisionConfiguration.h.

virtual btPoolAllocator* btDefaultCollisionConfiguration::getPersistentManifoldPool ( )

inlinevirtual

memory pools

Implements btCollisionConfiguration.

Definition at line 94 of file btDefaultCollisionConfiguration.h.

virtual btVoronoiSimplexSolver* btDefaultCollisionConfiguration::getSimplexSolver ( )

inlinevirtual

Definition at line 105 of file btDefaultCollisionConfiguration.h.

void btDefaultCollisionConfiguration::setConvexConvexMultipointIterations	(	int	numPerturbationIterations = 3,
		int	minimumPointsPerturbationThreshold = 3
	)

Use this method to allow to generate multiple contact points between at once, between two objects using the generic convex-convex algorithm.

By default, this feature is disabled for best performance.

Parameters

numPerturbationIterations	controls the number of collision queries. Set it to zero to disable the feature.
minimumPointsPerturbationThreshold	is the minimum number of points in the contact cache, above which the feature is disabled 3 is a good value for both params, if you want to enable the feature. This is because the default contact cache contains a maximum of 4 points, and one collision query at the unperturbed orientation is performed first. See Bullet/Demos/CollisionDemo for an example how this feature gathers multiple points.

Definition at line 291 of file btDefaultCollisionConfiguration.cpp.

void btDefaultCollisionConfiguration::setPlaneConvexMultipointIterations	(	int	numPerturbationIterations = 3,
		int	minimumPointsPerturbationThreshold = 3
	)

Definition at line 298 of file btDefaultCollisionConfiguration.cpp.

Member Data Documentation

btCollisionAlgorithmCreateFunc* btDefaultCollisionConfiguration::m_boxBoxCF

protected

Definition at line 80 of file btDefaultCollisionConfiguration.h.

btCollisionAlgorithmCreateFunc* btDefaultCollisionConfiguration::m_boxSphereCF

protected

Definition at line 78 of file btDefaultCollisionConfiguration.h.

btPoolAllocator* btDefaultCollisionConfiguration::m_collisionAlgorithmPool

protected

Definition at line 60 of file btDefaultCollisionConfiguration.h.

btCollisionAlgorithmCreateFunc* btDefaultCollisionConfiguration::m_compoundCompoundCreateFunc

protected

Definition at line 72 of file btDefaultCollisionConfiguration.h.

btCollisionAlgorithmCreateFunc* btDefaultCollisionConfiguration::m_compoundCreateFunc

protected

Definition at line 71 of file btDefaultCollisionConfiguration.h.

btCollisionAlgorithmCreateFunc* btDefaultCollisionConfiguration::m_convexConcaveCreateFunc

protected

Definition at line 69 of file btDefaultCollisionConfiguration.h.

btCollisionAlgorithmCreateFunc* btDefaultCollisionConfiguration::m_convexConvexCreateFunc

protected

Definition at line 68 of file btDefaultCollisionConfiguration.h.

btCollisionAlgorithmCreateFunc* btDefaultCollisionConfiguration::m_convexPlaneCF

protected

Definition at line 84 of file btDefaultCollisionConfiguration.h.

btCollisionAlgorithmCreateFunc* btDefaultCollisionConfiguration::m_emptyCreateFunc

protected

Definition at line 75 of file btDefaultCollisionConfiguration.h.

bool btDefaultCollisionConfiguration::m_ownsCollisionAlgorithmPool

protected

Definition at line 61 of file btDefaultCollisionConfiguration.h.

bool btDefaultCollisionConfiguration::m_ownsPersistentManifoldPool

protected

Definition at line 57 of file btDefaultCollisionConfiguration.h.

btConvexPenetrationDepthSolver* btDefaultCollisionConfiguration::m_pdSolver

protected

Definition at line 65 of file btDefaultCollisionConfiguration.h.

btPoolAllocator* btDefaultCollisionConfiguration::m_persistentManifoldPool

protected

Definition at line 56 of file btDefaultCollisionConfiguration.h.

int btDefaultCollisionConfiguration::m_persistentManifoldPoolSize

protected

Definition at line 53 of file btDefaultCollisionConfiguration.h.

btCollisionAlgorithmCreateFunc* btDefaultCollisionConfiguration::m_planeConvexCF

protected

Definition at line 83 of file btDefaultCollisionConfiguration.h.

btVoronoiSimplexSolver* btDefaultCollisionConfiguration::m_simplexSolver

protected

Definition at line 64 of file btDefaultCollisionConfiguration.h.

btCollisionAlgorithmCreateFunc* btDefaultCollisionConfiguration::m_sphereBoxCF

protected

Definition at line 77 of file btDefaultCollisionConfiguration.h.

btCollisionAlgorithmCreateFunc* btDefaultCollisionConfiguration::m_sphereSphereCF

protected

Definition at line 76 of file btDefaultCollisionConfiguration.h.

btCollisionAlgorithmCreateFunc* btDefaultCollisionConfiguration::m_sphereTriangleCF

protected

Definition at line 81 of file btDefaultCollisionConfiguration.h.

btCollisionAlgorithmCreateFunc* btDefaultCollisionConfiguration::m_swappedCompoundCreateFunc

protected

Definition at line 74 of file btDefaultCollisionConfiguration.h.

btCollisionAlgorithmCreateFunc* btDefaultCollisionConfiguration::m_swappedConvexConcaveCreateFunc

protected

Definition at line 70 of file btDefaultCollisionConfiguration.h.

btCollisionAlgorithmCreateFunc* btDefaultCollisionConfiguration::m_triangleSphereCF

protected

Definition at line 82 of file btDefaultCollisionConfiguration.h.

---

The documentation for this class was generated from the following files:

• btDefaultCollisionConfiguration.h
• btDefaultCollisionConfiguration.cpp
