btTriangleMeshShape Class Reference

The btTriangleMeshShape is an internal concave triangle mesh interface. Don't use this class directly, use btBvhTriangleMeshShape instead. More...

#include <btTriangleMeshShape.h>

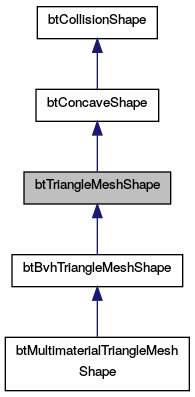

Inheritance diagram for btTriangleMeshShape:
Inheritance graph
[legend]

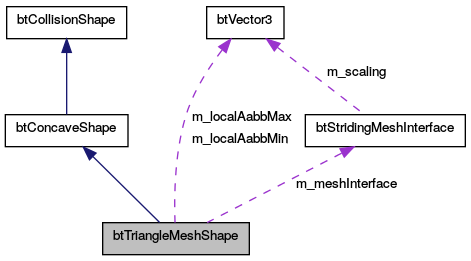

Collaboration diagram for btTriangleMeshShape:
Collaboration graph
[legend]

Public Member Functions

 BT_DECLARE_ALIGNED_ALLOCATOR ()

virtual ~btTriangleMeshShape ()

virtual btVector3 localGetSupportingVertex (const btVector3 &vec) const

virtual btVector3 localGetSupportingVertexWithoutMargin (const btVector3 &vec) const

void recalcLocalAabb ()

virtual void getAabb (const btTransform &t, btVector3 &aabbMin, btVector3 &aabbMax) const
 getAabb returns the axis aligned bounding box in the coordinate frame of the given transform t. More...

virtual void processAllTriangles (btTriangleCallback *callback, const btVector3 &aabbMin, const btVector3 &aabbMax) const

virtual void calculateLocalInertia (btScalar mass, btVector3 &inertia) const

virtual void setLocalScaling (const btVector3 &scaling)

virtual const btVector3getLocalScaling () const

btStridingMeshInterfacegetMeshInterface ()

const btStridingMeshInterfacegetMeshInterface () const

const btVector3getLocalAabbMin () const

const btVector3getLocalAabbMax () const

virtual const char * getName () const

- Public Member Functions inherited from btConcaveShape
 BT_DECLARE_ALIGNED_ALLOCATOR ()

 btConcaveShape ()

virtual ~btConcaveShape ()

virtual btScalar getMargin () const

virtual void setMargin (btScalar collisionMargin)

- Public Member Functions inherited from btCollisionShape
 BT_DECLARE_ALIGNED_ALLOCATOR ()

 btCollisionShape ()

virtual ~btCollisionShape ()

virtual void getBoundingSphere (btVector3 &center, btScalar &radius) const

virtual btScalar getAngularMotionDisc () const
 getAngularMotionDisc returns the maximus radius needed for Conservative Advancement to handle time-of-impact with rotations. More...

virtual btScalar getContactBreakingThreshold (btScalar defaultContactThresholdFactor) const

void calculateTemporalAabb (const btTransform &curTrans, const btVector3 &linvel, const btVector3 &angvel, btScalar timeStep, btVector3 &temporalAabbMin, btVector3 &temporalAabbMax) const
 calculateTemporalAabb calculates the enclosing aabb for the moving object over interval [0..timeStep) result is conservative More...

bool isPolyhedral () const

bool isConvex2d () const

bool isConvex () const

bool isNonMoving () const

bool isConcave () const

bool isCompound () const

bool isSoftBody () const

bool isInfinite () const
 isInfinite is used to catch simulation error (aabb check) More...

int getShapeType () const

virtual btVector3 getAnisotropicRollingFrictionDirection () const
 the getAnisotropicRollingFrictionDirection can be used in combination with setAnisotropicFriction See Bullet/Demos/RollingFrictionDemo for an example More...

void setUserPointer (void *userPtr)
 optional user data pointer More...

void * getUserPointer () const

virtual int calculateSerializeBufferSize () const

virtual const char * serialize (void *dataBuffer, btSerializer *serializer) const
 fills the dataBuffer and returns the struct name (and 0 on failure) More...

virtual void serializeSingleShape (btSerializer *serializer) const


Protected Member Functions

 btTriangleMeshShape (btStridingMeshInterface *meshInterface)
 btTriangleMeshShape constructor has been disabled/protected, so that users will not mistakenly use this class. More...


Protected Attributes

btVector3 m_localAabbMin

btVector3 m_localAabbMax

btStridingMeshInterfacem_meshInterface

- Protected Attributes inherited from btConcaveShape
btScalar m_collisionMargin

- Protected Attributes inherited from btCollisionShape
int m_shapeType

void * m_userPointer


Detailed Description

The btTriangleMeshShape is an internal concave triangle mesh interface. Don't use this class directly, use btBvhTriangleMeshShape instead.

Definition at line 24 of file btTriangleMeshShape.h.

Constructor & Destructor Documentation

btTriangleMeshShape::btTriangleMeshShape ( btStridingMeshInterface meshInterface)
protected

btTriangleMeshShape constructor has been disabled/protected, so that users will not mistakenly use this class.

Don't use btTriangleMeshShape but use btBvhTriangleMeshShape instead!

Definition at line 24 of file btTriangleMeshShape.cpp.

btTriangleMeshShape::~btTriangleMeshShape ( )
virtual

Definition at line 39 of file btTriangleMeshShape.cpp.

Member Function Documentation

btTriangleMeshShape::BT_DECLARE_ALIGNED_ALLOCATOR ( )
void btTriangleMeshShape::calculateLocalInertia ( btScalar  mass,
btVector3 inertia
) const
virtual

Implements btCollisionShape.

Definition at line 180 of file btTriangleMeshShape.cpp.

void btTriangleMeshShape::getAabb ( const btTransform t,
btVector3 aabbMin,
btVector3 aabbMax
) const
virtual

getAabb returns the axis aligned bounding box in the coordinate frame of the given transform t.

Implements btCollisionShape.

Definition at line 47 of file btTriangleMeshShape.cpp.

const btVector3& btTriangleMeshShape::getLocalAabbMax ( ) const
inline

Definition at line 73 of file btTriangleMeshShape.h.

const btVector3& btTriangleMeshShape::getLocalAabbMin ( ) const
inline

Definition at line 69 of file btTriangleMeshShape.h.

const btVector3 & btTriangleMeshShape::getLocalScaling ( ) const
virtual

Implements btCollisionShape.

Definition at line 130 of file btTriangleMeshShape.cpp.

btStridingMeshInterface* btTriangleMeshShape::getMeshInterface ( )
inline

Definition at line 59 of file btTriangleMeshShape.h.

const btStridingMeshInterface* btTriangleMeshShape::getMeshInterface ( ) const
inline

Definition at line 64 of file btTriangleMeshShape.h.

virtual const char* btTriangleMeshShape::getName ( ) const
inlinevirtual

Implements btCollisionShape.

Reimplemented in btMultimaterialTriangleMeshShape, and btBvhTriangleMeshShape.

Definition at line 81 of file btTriangleMeshShape.h.

btVector3 btTriangleMeshShape::localGetSupportingVertex ( const btVector3 vec) const
virtual

Definition at line 189 of file btTriangleMeshShape.cpp.

virtual btVector3 btTriangleMeshShape::localGetSupportingVertexWithoutMargin ( const btVector3 vec) const
inlinevirtual

Definition at line 42 of file btTriangleMeshShape.h.

void btTriangleMeshShape::processAllTriangles ( btTriangleCallback callback,
const btVector3 aabbMin,
const btVector3 aabbMax
) const
virtual

Implements btConcaveShape.

Reimplemented in btBvhTriangleMeshShape.

Definition at line 144 of file btTriangleMeshShape.cpp.

void btTriangleMeshShape::recalcLocalAabb ( )

Definition at line 63 of file btTriangleMeshShape.cpp.

void btTriangleMeshShape::setLocalScaling ( const btVector3 scaling)
virtual

Implements btCollisionShape.

Reimplemented in btBvhTriangleMeshShape.

Definition at line 124 of file btTriangleMeshShape.cpp.

Member Data Documentation

btVector3 btTriangleMeshShape::m_localAabbMax
protected

Definition at line 28 of file btTriangleMeshShape.h.

btVector3 btTriangleMeshShape::m_localAabbMin
protected

Definition at line 27 of file btTriangleMeshShape.h.

btStridingMeshInterface* btTriangleMeshShape::m_meshInterface
protected

Definition at line 29 of file btTriangleMeshShape.h.


The documentation for this class was generated from the following files:
