Bullet Collision Detection & Physics Library
Public Member Functions | Private Attributes | List of all members
btMultimaterialTriangleMeshShape Class Reference

This file was created by Alex Silverman. More...

#include <btMultimaterialTriangleMeshShape.h>

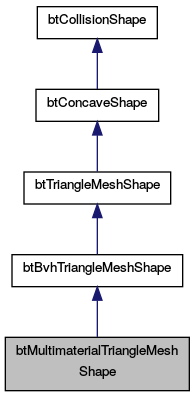

Inheritance diagram for btMultimaterialTriangleMeshShape:
Inheritance graph
[legend]

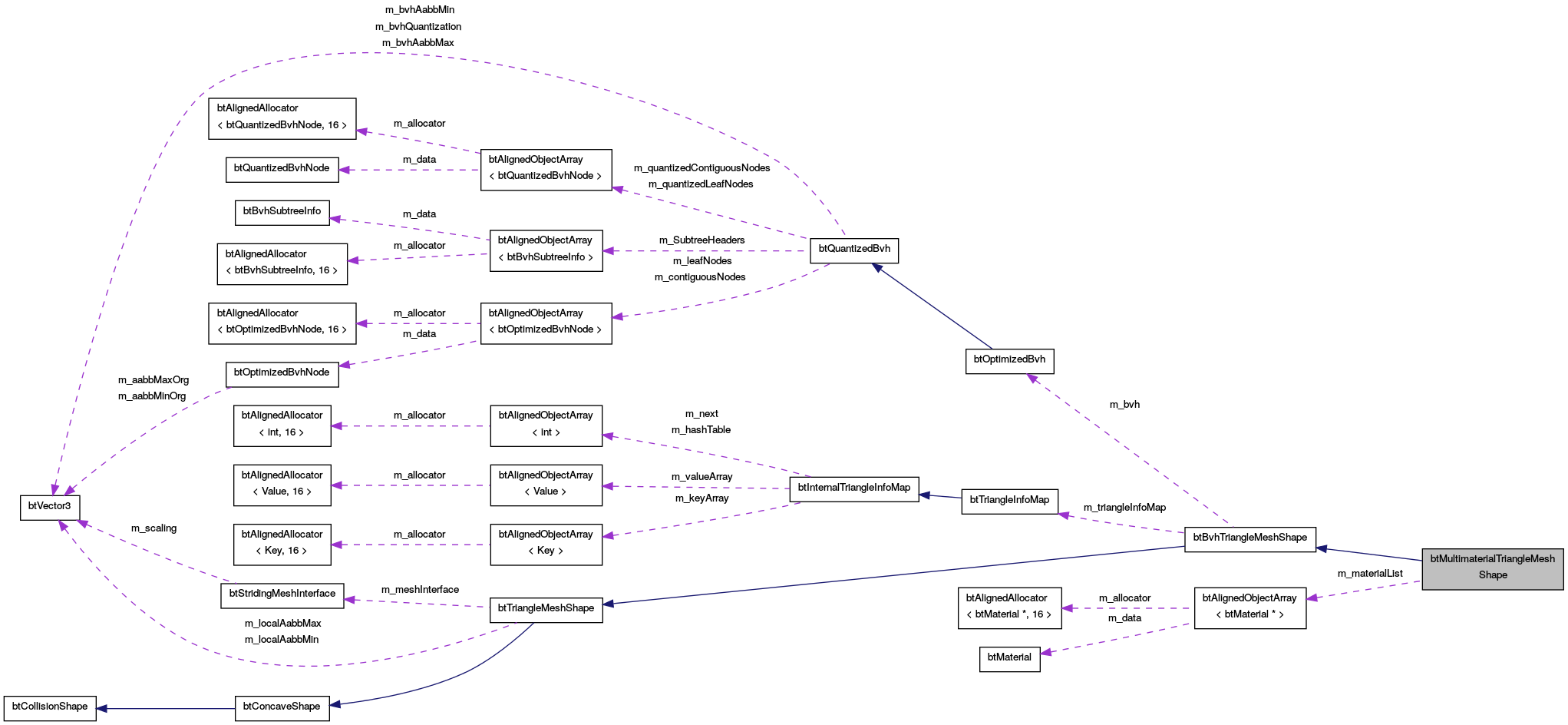

Collaboration diagram for btMultimaterialTriangleMeshShape:
Collaboration graph
[legend]

Public Member Functions

 BT_DECLARE_ALIGNED_ALLOCATOR ()

 btMultimaterialTriangleMeshShape (btStridingMeshInterface *meshInterface, bool useQuantizedAabbCompression, bool buildBvh=true)

 btMultimaterialTriangleMeshShape (btStridingMeshInterface *meshInterface, bool useQuantizedAabbCompression, const btVector3 &bvhAabbMin, const btVector3 &bvhAabbMax, bool buildBvh=true)
 optionally pass in a larger bvh aabb, used for quantization. This allows for deformations within this aabb More...

virtual ~btMultimaterialTriangleMeshShape ()

virtual const char * getName () const

const btMaterialgetMaterialProperties (int partID, int triIndex)
 Obtains the material for a specific triangle. More...

- Public Member Functions inherited from btBvhTriangleMeshShape
 BT_DECLARE_ALIGNED_ALLOCATOR ()

 btBvhTriangleMeshShape (btStridingMeshInterface *meshInterface, bool useQuantizedAabbCompression, bool buildBvh=true)
 Bvh Concave triangle mesh is a static-triangle mesh shape with Bounding Volume Hierarchy optimization. More...

 btBvhTriangleMeshShape (btStridingMeshInterface *meshInterface, bool useQuantizedAabbCompression, const btVector3 &bvhAabbMin, const btVector3 &bvhAabbMax, bool buildBvh=true)
 optionally pass in a larger bvh aabb, used for quantization. This allows for deformations within this aabb More...

virtual ~btBvhTriangleMeshShape ()

bool getOwnsBvh () const

void performRaycast (btTriangleCallback *callback, const btVector3 &raySource, const btVector3 &rayTarget)

void performConvexcast (btTriangleCallback *callback, const btVector3 &boxSource, const btVector3 &boxTarget, const btVector3 &boxMin, const btVector3 &boxMax)

virtual void processAllTriangles (btTriangleCallback *callback, const btVector3 &aabbMin, const btVector3 &aabbMax) const

void refitTree (const btVector3 &aabbMin, const btVector3 &aabbMax)

void partialRefitTree (const btVector3 &aabbMin, const btVector3 &aabbMax)
 for a fast incremental refit of parts of the tree. Note: the entire AABB of the tree will become more conservative, it never shrinks More...

virtual void setLocalScaling (const btVector3 &scaling)

btOptimizedBvhgetOptimizedBvh ()

void setOptimizedBvh (btOptimizedBvh *bvh, const btVector3 &localScaling=btVector3(1, 1, 1))

void buildOptimizedBvh ()

bool usesQuantizedAabbCompression () const

void setTriangleInfoMap (btTriangleInfoMap *triangleInfoMap)

const btTriangleInfoMapgetTriangleInfoMap () const

btTriangleInfoMapgetTriangleInfoMap ()

virtual int calculateSerializeBufferSize () const

virtual const char * serialize (void *dataBuffer, btSerializer *serializer) const
 fills the dataBuffer and returns the struct name (and 0 on failure) More...

virtual void serializeSingleBvh (btSerializer *serializer) const

virtual void serializeSingleTriangleInfoMap (btSerializer *serializer) const

- Public Member Functions inherited from btTriangleMeshShape
 BT_DECLARE_ALIGNED_ALLOCATOR ()

virtual ~btTriangleMeshShape ()

virtual btVector3 localGetSupportingVertex (const btVector3 &vec) const

virtual btVector3 localGetSupportingVertexWithoutMargin (const btVector3 &vec) const

void recalcLocalAabb ()

virtual void getAabb (const btTransform &t, btVector3 &aabbMin, btVector3 &aabbMax) const
 getAabb returns the axis aligned bounding box in the coordinate frame of the given transform t. More...

virtual void calculateLocalInertia (btScalar mass, btVector3 &inertia) const

virtual const btVector3getLocalScaling () const

btStridingMeshInterfacegetMeshInterface ()

const btStridingMeshInterfacegetMeshInterface () const

const btVector3getLocalAabbMin () const

const btVector3getLocalAabbMax () const

- Public Member Functions inherited from btConcaveShape
 BT_DECLARE_ALIGNED_ALLOCATOR ()

 btConcaveShape ()

virtual ~btConcaveShape ()

virtual btScalar getMargin () const

virtual void setMargin (btScalar collisionMargin)

- Public Member Functions inherited from btCollisionShape
 BT_DECLARE_ALIGNED_ALLOCATOR ()

 btCollisionShape ()

virtual ~btCollisionShape ()

virtual void getBoundingSphere (btVector3 &center, btScalar &radius) const

virtual btScalar getAngularMotionDisc () const
 getAngularMotionDisc returns the maximus radius needed for Conservative Advancement to handle time-of-impact with rotations. More...

virtual btScalar getContactBreakingThreshold (btScalar defaultContactThresholdFactor) const

void calculateTemporalAabb (const btTransform &curTrans, const btVector3 &linvel, const btVector3 &angvel, btScalar timeStep, btVector3 &temporalAabbMin, btVector3 &temporalAabbMax) const
 calculateTemporalAabb calculates the enclosing aabb for the moving object over interval [0..timeStep) result is conservative More...

bool isPolyhedral () const

bool isConvex2d () const

bool isConvex () const

bool isNonMoving () const

bool isConcave () const

bool isCompound () const

bool isSoftBody () const

bool isInfinite () const
 isInfinite is used to catch simulation error (aabb check) More...

int getShapeType () const

virtual btVector3 getAnisotropicRollingFrictionDirection () const
 the getAnisotropicRollingFrictionDirection can be used in combination with setAnisotropicFriction See Bullet/Demos/RollingFrictionDemo for an example More...

void setUserPointer (void *userPtr)
 optional user data pointer More...

void * getUserPointer () const

virtual void serializeSingleShape (btSerializer *serializer) const


Private Attributes

btAlignedObjectArray
< btMaterial * >
m_materialList

int ** m_triangleMaterials


Additional Inherited Members

- Protected Member Functions inherited from btTriangleMeshShape
 btTriangleMeshShape (btStridingMeshInterface *meshInterface)
 btTriangleMeshShape constructor has been disabled/protected, so that users will not mistakenly use this class. More...

- Protected Attributes inherited from btTriangleMeshShape
btVector3 m_localAabbMin

btVector3 m_localAabbMax

btStridingMeshInterfacem_meshInterface

- Protected Attributes inherited from btConcaveShape
btScalar m_collisionMargin

- Protected Attributes inherited from btCollisionShape
int m_shapeType

void * m_userPointer


Detailed Description

This file was created by Alex Silverman.

The BvhTriangleMaterialMeshShape extends the btBvhTriangleMeshShape. Its main contribution is the interface into a material array, which allows per-triangle friction and restitution.

Definition at line 25 of file btMultimaterialTriangleMeshShape.h.

Constructor & Destructor Documentation

btMultimaterialTriangleMeshShape::btMultimaterialTriangleMeshShape ( btStridingMeshInterface meshInterface,
bool  useQuantizedAabbCompression,
bool  buildBvh = true
)
inline

Definition at line 34 of file btMultimaterialTriangleMeshShape.h.

btMultimaterialTriangleMeshShape::btMultimaterialTriangleMeshShape ( btStridingMeshInterface meshInterface,
bool  useQuantizedAabbCompression,
const btVector3 bvhAabbMin,
const btVector3 bvhAabbMax,
bool  buildBvh = true
)
inline

optionally pass in a larger bvh aabb, used for quantization. This allows for deformations within this aabb

Definition at line 67 of file btMultimaterialTriangleMeshShape.h.

virtual btMultimaterialTriangleMeshShape::~btMultimaterialTriangleMeshShape ( )
inlinevirtual

Definition at line 99 of file btMultimaterialTriangleMeshShape.h.

Member Function Documentation

btMultimaterialTriangleMeshShape::BT_DECLARE_ALIGNED_ALLOCATOR ( )
const btMaterial * btMultimaterialTriangleMeshShape::getMaterialProperties ( int  partID,
int  triIndex
)

Obtains the material for a specific triangle.

This file was created by Alex Silverman.

Obtains the material for a specific triangle

Definition at line 24 of file btMultimaterialTriangleMeshShape.cpp.

virtual const char* btMultimaterialTriangleMeshShape::getName ( ) const
inlinevirtual

Reimplemented from btBvhTriangleMeshShape.

Definition at line 112 of file btMultimaterialTriangleMeshShape.h.

Member Data Documentation

btAlignedObjectArray<btMaterial*> btMultimaterialTriangleMeshShape::m_materialList
private

Definition at line 27 of file btMultimaterialTriangleMeshShape.h.

int** btMultimaterialTriangleMeshShape::m_triangleMaterials
private

Definition at line 28 of file btMultimaterialTriangleMeshShape.h.


The documentation for this class was generated from the following files:
