btBroadphaseInterface Class Referenceabstract

The btBroadphaseInterface class provides an interface to detect aabb-overlapping object pairs. More...

#include <btBroadphaseInterface.h>

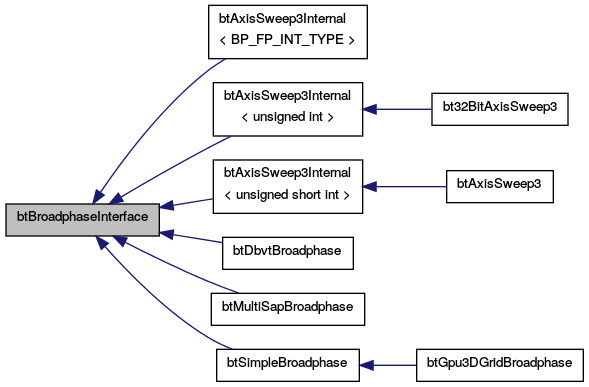

Inheritance diagram for btBroadphaseInterface:
Inheritance graph
[legend]

Public Member Functions

virtual ~btBroadphaseInterface ()

virtual btBroadphaseProxy * createProxy (const btVector3 &aabbMin, const btVector3 &aabbMax, int shapeType, void *userPtr, short int collisionFilterGroup, short int collisionFilterMask, btDispatcher *dispatcher, void *multiSapProxy)=0

virtual void destroyProxy (btBroadphaseProxy *proxy, btDispatcher *dispatcher)=0

virtual void setAabb (btBroadphaseProxy *proxy, const btVector3 &aabbMin, const btVector3 &aabbMax, btDispatcher *dispatcher)=0

virtual void getAabb (btBroadphaseProxy *proxy, btVector3 &aabbMin, btVector3 &aabbMax) const =0

virtual void rayTest (const btVector3 &rayFrom, const btVector3 &rayTo, btBroadphaseRayCallback &rayCallback, const btVector3 &aabbMin=btVector3(0, 0, 0), const btVector3 &aabbMax=btVector3(0, 0, 0))=0

virtual void aabbTest (const btVector3 &aabbMin, const btVector3 &aabbMax, btBroadphaseAabbCallback &callback)=0

virtual void calculateOverlappingPairs (btDispatcher *dispatcher)=0
 calculateOverlappingPairs is optional: incremental algorithms (sweep and prune) might do it during the set aabb More...

virtual btOverlappingPairCache * getOverlappingPairCache ()=0

virtual const
btOverlappingPairCache * 		getOverlappingPairCache () const =0

virtual void getBroadphaseAabb (btVector3 &aabbMin, btVector3 &aabbMax) const =0
 getAabb returns the axis aligned bounding box in the 'global' coordinate frame will add some transform later More...

virtual void resetPool (btDispatcher *dispatcher)
 reset broadphase internal structures, to ensure determinism/reproducability More...

virtual void printStats ()=0


Detailed Description

The btBroadphaseInterface class provides an interface to detect aabb-overlapping object pairs.

Some implementations for this broadphase interface include btAxisSweep3, bt32BitAxisSweep3 and btDbvtBroadphase. The actual overlapping pair management, storage, adding and removing of pairs is dealt by the btOverlappingPairCache class.

Definition at line 51 of file btBroadphaseInterface.h.

Constructor & Destructor Documentation

virtual btBroadphaseInterface::~btBroadphaseInterface ( )
inlinevirtual

Definition at line 54 of file btBroadphaseInterface.h.

Member Function Documentation

virtual void btBroadphaseInterface::aabbTest ( const btVector3 &  aabbMin,
const btVector3 &  aabbMax,
btBroadphaseAabbCallback &  callback
)
pure virtual

Implemented in btAxisSweep3Internal< BP_FP_INT_TYPE >, btAxisSweep3Internal< unsigned int >, btAxisSweep3Internal< unsigned short int >, btSimpleBroadphase, and btDbvtBroadphase.

virtual void btBroadphaseInterface::calculateOverlappingPairs ( btDispatcher *  dispatcher)
pure virtual

calculateOverlappingPairs is optional: incremental algorithms (sweep and prune) might do it during the set aabb

Implemented in btAxisSweep3Internal< BP_FP_INT_TYPE >, btAxisSweep3Internal< unsigned int >, btAxisSweep3Internal< unsigned short int >, btSimpleBroadphase, btMultiSapBroadphase, btDbvtBroadphase, and btGpu3DGridBroadphase.

virtual btBroadphaseProxy* btBroadphaseInterface::createProxy ( const btVector3 &  aabbMin,
const btVector3 &  aabbMax,
int  shapeType,
void *  userPtr,
short int  collisionFilterGroup,
short int  collisionFilterMask,
btDispatcher *  dispatcher,
void *  multiSapProxy
)
pure virtual

Implemented in btAxisSweep3Internal< BP_FP_INT_TYPE >, btAxisSweep3Internal< unsigned int >, btAxisSweep3Internal< unsigned short int >, btSimpleBroadphase, btMultiSapBroadphase, btDbvtBroadphase, and btGpu3DGridBroadphase.

virtual void btBroadphaseInterface::destroyProxy ( btBroadphaseProxy *  proxy,
btDispatcher *  dispatcher
)
pure virtual

Implemented in btAxisSweep3Internal< BP_FP_INT_TYPE >, btAxisSweep3Internal< unsigned int >, btAxisSweep3Internal< unsigned short int >, btSimpleBroadphase, btMultiSapBroadphase, btDbvtBroadphase, and btGpu3DGridBroadphase.

virtual void btBroadphaseInterface::getAabb ( btBroadphaseProxy *  proxy,
btVector3 &  aabbMin,
btVector3 &  aabbMax
) const
pure virtual

Implemented in btAxisSweep3Internal< BP_FP_INT_TYPE >, btAxisSweep3Internal< unsigned int >, btAxisSweep3Internal< unsigned short int >, btSimpleBroadphase, btDbvtBroadphase, and btMultiSapBroadphase.

virtual void btBroadphaseInterface::getBroadphaseAabb ( btVector3 &  aabbMin,
btVector3 &  aabbMax
) const
pure virtual

getAabb returns the axis aligned bounding box in the 'global' coordinate frame will add some transform later

Implemented in btAxisSweep3Internal< BP_FP_INT_TYPE >, btAxisSweep3Internal< unsigned int >, btAxisSweep3Internal< unsigned short int >, btSimpleBroadphase, btMultiSapBroadphase, and btDbvtBroadphase.

virtual btOverlappingPairCache* btBroadphaseInterface::getOverlappingPairCache ( )
pure virtual

Implemented in btAxisSweep3Internal< BP_FP_INT_TYPE >, btAxisSweep3Internal< unsigned int >, btAxisSweep3Internal< unsigned short int >, btSimpleBroadphase, btMultiSapBroadphase, and btDbvtBroadphase.

virtual const btOverlappingPairCache* btBroadphaseInterface::getOverlappingPairCache ( ) const
pure virtual

Implemented in btAxisSweep3Internal< BP_FP_INT_TYPE >, btAxisSweep3Internal< unsigned int >, btAxisSweep3Internal< unsigned short int >, btSimpleBroadphase, btMultiSapBroadphase, and btDbvtBroadphase.

virtual void btBroadphaseInterface::printStats ( )
pure virtual

Implemented in btAxisSweep3Internal< BP_FP_INT_TYPE >, btAxisSweep3Internal< unsigned int >, btAxisSweep3Internal< unsigned short int >, btSimpleBroadphase, btMultiSapBroadphase, and btDbvtBroadphase.

virtual void btBroadphaseInterface::rayTest ( const btVector3 &  rayFrom,
const btVector3 &  rayTo,
btBroadphaseRayCallback &  rayCallback,
const btVector3 &  aabbMin = btVector3(0, 0, 0),
const btVector3 &  aabbMax = btVector3(0, 0, 0)
)
pure virtual

Implemented in btAxisSweep3Internal< BP_FP_INT_TYPE >, btAxisSweep3Internal< unsigned int >, btAxisSweep3Internal< unsigned short int >, btSimpleBroadphase, btMultiSapBroadphase, btDbvtBroadphase, and btGpu3DGridBroadphase.

virtual void btBroadphaseInterface::resetPool ( btDispatcher *  dispatcher)
inlinevirtual

reset broadphase internal structures, to ensure determinism/reproducability

Reimplemented in btMultiSapBroadphase, btAxisSweep3Internal< BP_FP_INT_TYPE >, btAxisSweep3Internal< unsigned int >, btAxisSweep3Internal< unsigned short int >, btDbvtBroadphase, btSimpleBroadphase, and btGpu3DGridBroadphase.

Definition at line 76 of file btBroadphaseInterface.h.

virtual void btBroadphaseInterface::setAabb ( btBroadphaseProxy *  proxy,
const btVector3 &  aabbMin,
const btVector3 &  aabbMax,
btDispatcher *  dispatcher
)
pure virtual

Implemented in btAxisSweep3Internal< BP_FP_INT_TYPE >, btAxisSweep3Internal< unsigned int >, btAxisSweep3Internal< unsigned short int >, btSimpleBroadphase, btMultiSapBroadphase, and btDbvtBroadphase.

The documentation for this class was generated from the following file:
