The btGhostObject can keep track of all objects that are overlapping By default, this overlap is based on the AABB This is useful for creating a character controller, collision sensors/triggers, explosions etc. More...

#include <btGhostObject.h>

Inheritance diagram for btGhostObject:

[legend]

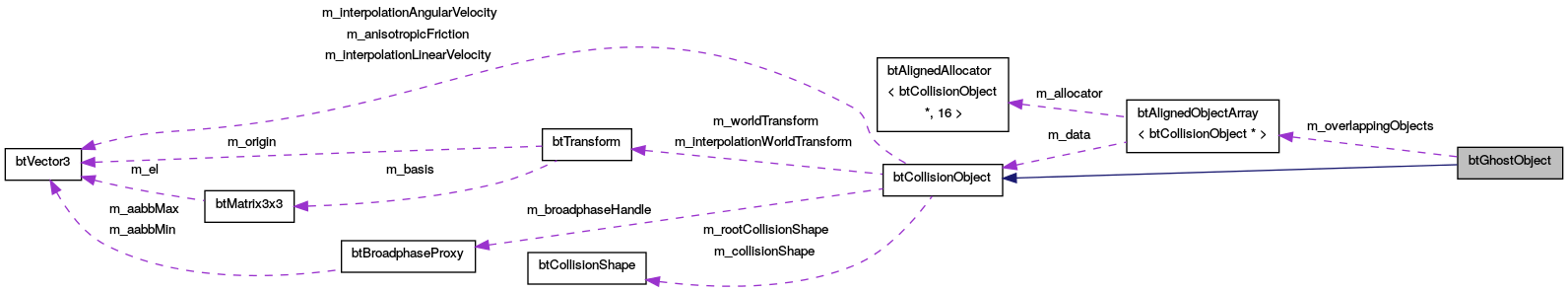

Collaboration diagram for btGhostObject:

[legend]

Public Member Functions
	btGhostObject ()

virtual	~btGhostObject ()

void	convexSweepTest (const class btConvexShape *castShape, const btTransform &convexFromWorld, const btTransform &convexToWorld, btCollisionWorld::ConvexResultCallback &resultCallback, btScalar allowedCcdPenetration=0.f) const

void	rayTest (const btVector3 &rayFromWorld, const btVector3 &rayToWorld, btCollisionWorld::RayResultCallback &resultCallback) const

virtual void	addOverlappingObjectInternal (btBroadphaseProxy otherProxy, btBroadphaseProxy thisProxy=0)
	this method is mainly for expert/internal use only. More...

virtual void	removeOverlappingObjectInternal (btBroadphaseProxy otherProxy, btDispatcher dispatcher, btBroadphaseProxy *thisProxy=0)
	this method is mainly for expert/internal use only. More...

int	getNumOverlappingObjects () const

btCollisionObject *	getOverlappingObject (int index)

const btCollisionObject *	getOverlappingObject (int index) const

btAlignedObjectArray < btCollisionObject * > &	getOverlappingPairs ()

const btAlignedObjectArray < btCollisionObject * >	getOverlappingPairs () const

Public Member Functions inherited from btCollisionObject
	BT_DECLARE_ALIGNED_ALLOCATOR ()

bool	mergesSimulationIslands () const

const btVector3 &	getAnisotropicFriction () const

void	setAnisotropicFriction (const btVector3 &anisotropicFriction, int frictionMode=CF_ANISOTROPIC_FRICTION)

bool	hasAnisotropicFriction (int frictionMode=CF_ANISOTROPIC_FRICTION) const

void	setContactProcessingThreshold (btScalar contactProcessingThreshold)
	the constraint solver can discard solving contacts, if the distance is above this threshold. More...

btScalar	getContactProcessingThreshold () const

bool	isStaticObject () const

bool	isKinematicObject () const

bool	isStaticOrKinematicObject () const

bool	hasContactResponse () const

	btCollisionObject ()

virtual	~btCollisionObject ()

virtual void	setCollisionShape (btCollisionShape *collisionShape)

const btCollisionShape *	getCollisionShape () const

btCollisionShape *	getCollisionShape ()

void *	internalGetExtensionPointer () const
	Avoid using this internal API call, the extension pointer is used by some Bullet extensions. More...

void	internalSetExtensionPointer (void *pointer)
	Avoid using this internal API call, the extension pointer is used by some Bullet extensions If you need to store your own user pointer, use 'setUserPointer/getUserPointer' instead. More...

int	getActivationState () const

void	setActivationState (int newState) const

void	setDeactivationTime (btScalar time)

btScalar	getDeactivationTime () const

void	forceActivationState (int newState) const

void	activate (bool forceActivation=false) const

bool	isActive () const

void	setRestitution (btScalar rest)

btScalar	getRestitution () const

void	setFriction (btScalar frict)

btScalar	getFriction () const

void	setRollingFriction (btScalar frict)

btScalar	getRollingFriction () const

int	getInternalType () const
	reserved for Bullet internal usage More...

btTransform &	getWorldTransform ()

const btTransform &	getWorldTransform () const

void	setWorldTransform (const btTransform &worldTrans)

btBroadphaseProxy *	getBroadphaseHandle ()

const btBroadphaseProxy *	getBroadphaseHandle () const

void	setBroadphaseHandle (btBroadphaseProxy *handle)

const btTransform &	getInterpolationWorldTransform () const

btTransform &	getInterpolationWorldTransform ()

void	setInterpolationWorldTransform (const btTransform &trans)

void	setInterpolationLinearVelocity (const btVector3 &linvel)

void	setInterpolationAngularVelocity (const btVector3 &angvel)

const btVector3 &	getInterpolationLinearVelocity () const

const btVector3 &	getInterpolationAngularVelocity () const

int	getIslandTag () const

void	setIslandTag (int tag)

int	getCompanionId () const

void	setCompanionId (int id)

btScalar	getHitFraction () const

void	setHitFraction (btScalar hitFraction)

int	getCollisionFlags () const

void	setCollisionFlags (int flags)

btScalar	getCcdSweptSphereRadius () const
	Swept sphere radius (0.0 by default), see btConvexConvexAlgorithm:: More...

void	setCcdSweptSphereRadius (btScalar radius)
	Swept sphere radius (0.0 by default), see btConvexConvexAlgorithm:: More...

btScalar	getCcdMotionThreshold () const

btScalar	getCcdSquareMotionThreshold () const

void	setCcdMotionThreshold (btScalar ccdMotionThreshold)
	Don't do continuous collision detection if the motion (in one step) is less then m_ccdMotionThreshold. More...

void *	getUserPointer () const
	users can point to their objects, userPointer is not used by Bullet More...

int	getUserIndex () const

void	setUserPointer (void *userPointer)
	users can point to their objects, userPointer is not used by Bullet More...

void	setUserIndex (int index)
	users can point to their objects, userPointer is not used by Bullet More...

int	getUpdateRevisionInternal () const

bool	checkCollideWith (const btCollisionObject *co) const

virtual int	calculateSerializeBufferSize () const

virtual const char *	serialize (void dataBuffer, class btSerializer serializer) const
	fills the dataBuffer and returns the struct name (and 0 on failure) More...

virtual void	serializeSingleObject (class btSerializer *serializer) const

Static Public Member Functions
static const btGhostObject *	upcast (const btCollisionObject *colObj)

static btGhostObject *	upcast (btCollisionObject *colObj)

Protected Attributes
btAlignedObjectArray < btCollisionObject * >	m_overlappingObjects

Protected Attributes inherited from btCollisionObject
btTransform	m_worldTransform

btTransform	m_interpolationWorldTransform
	m_interpolationWorldTransform is used for CCD and interpolation it can be either previous or future (predicted) transform More...

btVector3	m_interpolationLinearVelocity

btVector3	m_interpolationAngularVelocity

btVector3	m_anisotropicFriction

int	m_hasAnisotropicFriction

btScalar	m_contactProcessingThreshold

btBroadphaseProxy *	m_broadphaseHandle

btCollisionShape *	m_collisionShape

void *	m_extensionPointer
	m_extensionPointer is used by some internal low-level Bullet extensions. More...

btCollisionShape *	m_rootCollisionShape
	m_rootCollisionShape is temporarily used to store the original collision shape The m_collisionShape might be temporarily replaced by a child collision shape during collision detection purposes If it is NULL, the m_collisionShape is not temporarily replaced. More...

int	m_collisionFlags

int	m_islandTag1

int	m_companionId

int	m_activationState1

btScalar	m_deactivationTime

btScalar	m_friction

btScalar	m_restitution

btScalar	m_rollingFriction

int	m_internalType
	m_internalType is reserved to distinguish Bullet's btCollisionObject, btRigidBody, btSoftBody, btGhostObject etc. More...

union {
void * m_userObjectPointer

int m_userIndex

};
	users can point to their objects, m_userPointer is not used by Bullet, see setUserPointer/getUserPointer More...

btScalar	m_hitFraction
	time of impact calculation More...

btScalar	m_ccdSweptSphereRadius
	Swept sphere radius (0.0 by default), see btConvexConvexAlgorithm:: More...

btScalar	m_ccdMotionThreshold
	Don't do continuous collision detection if the motion (in one step) is less then m_ccdMotionThreshold. More...

int	m_checkCollideWith
	If some object should have elaborate collision filtering by sub-classes. More...

int	m_updateRevision
	internal update revision number. It will be increased when the object changes. This allows some subsystems to perform lazy evaluation. More...

Additional Inherited Members
Public Types inherited from btCollisionObject
enum	CollisionFlags { CF_STATIC_OBJECT = 1, CF_KINEMATIC_OBJECT = 2, CF_NO_CONTACT_RESPONSE = 4, CF_CUSTOM_MATERIAL_CALLBACK = 8, CF_CHARACTER_OBJECT = 16, CF_DISABLE_VISUALIZE_OBJECT = 32, CF_DISABLE_SPU_COLLISION_PROCESSING = 64 }

enum	CollisionObjectTypes { CO_COLLISION_OBJECT =1, CO_RIGID_BODY =2, CO_GHOST_OBJECT =4, CO_SOFT_BODY =8, CO_HF_FLUID =16, CO_USER_TYPE =32, CO_FEATHERSTONE_LINK =64 }

enum	AnisotropicFrictionFlags { CF_ANISOTROPIC_FRICTION_DISABLED =0, CF_ANISOTROPIC_FRICTION = 1, CF_ANISOTROPIC_ROLLING_FRICTION = 2 }

Protected Member Functions inherited from btCollisionObject
virtual bool	checkCollideWithOverride (const btCollisionObject *) const

Detailed Description

The btGhostObject can keep track of all objects that are overlapping By default, this overlap is based on the AABB This is useful for creating a character controller, collision sensors/triggers, explosions etc.

We plan on adding rayTest and other queries for the btGhostObject

Definition at line 34 of file btGhostObject.h.

Constructor & Destructor Documentation

btGhostObject::btGhostObject ( )

Definition at line 21 of file btGhostObject.cpp.

btGhostObject::~btGhostObject ( )

virtual

btGhostObject should have been removed from the world, so no overlapping objects

Definition at line 26 of file btGhostObject.cpp.

Member Function Documentation

void btGhostObject::addOverlappingObjectInternal	(	btBroadphaseProxy *	otherProxy,
		btBroadphaseProxy *	thisProxy = `0`
	)

virtual

this method is mainly for expert/internal use only.

if this linearSearch becomes too slow (too many overlapping objects) we should add a more appropriate data structure

Reimplemented in btPairCachingGhostObject.

Definition at line 33 of file btGhostObject.cpp.

void btGhostObject::convexSweepTest	(	const class btConvexShape *	castShape,
		const btTransform &	convexFromWorld,
		const btTransform &	convexToWorld,
		btCollisionWorld::ConvexResultCallback &	resultCallback,
		btScalar	allowedCcdPenetration = `0.f`
	)		const

go over all objects, and if the ray intersects their aabb + cast shape aabb,

Definition at line 102 of file btGhostObject.cpp.

int btGhostObject::getNumOverlappingObjects ( ) const

inline

Definition at line 55 of file btGhostObject.h.

btCollisionObject* btGhostObject::getOverlappingObject ( int index )

inline

Definition at line 60 of file btGhostObject.h.

const btCollisionObject* btGhostObject::getOverlappingObject ( int index ) const

inline

Definition at line 65 of file btGhostObject.h.

btAlignedObjectArray<btCollisionObject*>& btGhostObject::getOverlappingPairs ( )

inline

Definition at line 70 of file btGhostObject.h.

const btAlignedObjectArray<btCollisionObject*> btGhostObject::getOverlappingPairs ( ) const

inline

Definition at line 75 of file btGhostObject.h.

void btGhostObject::rayTest	(	const btVector3 &	rayFromWorld,
		const btVector3 &	rayToWorld,
		btCollisionWorld::RayResultCallback &	resultCallback
	)		const

Definition at line 146 of file btGhostObject.cpp.

void btGhostObject::removeOverlappingObjectInternal	(	btBroadphaseProxy *	otherProxy,
		btDispatcher *	dispatcher,
		btBroadphaseProxy *	thisProxy = `0`
	)

virtual

this method is mainly for expert/internal use only.

Reimplemented in btPairCachingGhostObject.

Definition at line 46 of file btGhostObject.cpp.

static const btGhostObject* btGhostObject::upcast ( const btCollisionObject * colObj )

inlinestatic

Definition at line 84 of file btGhostObject.h.

static btGhostObject* btGhostObject::upcast ( btCollisionObject * colObj )

inlinestatic

Definition at line 90 of file btGhostObject.h.

Member Data Documentation

btAlignedObjectArray<btCollisionObject*> btGhostObject::m_overlappingObjects

protected

Definition at line 38 of file btGhostObject.h.

The documentation for this class was generated from the following files:
